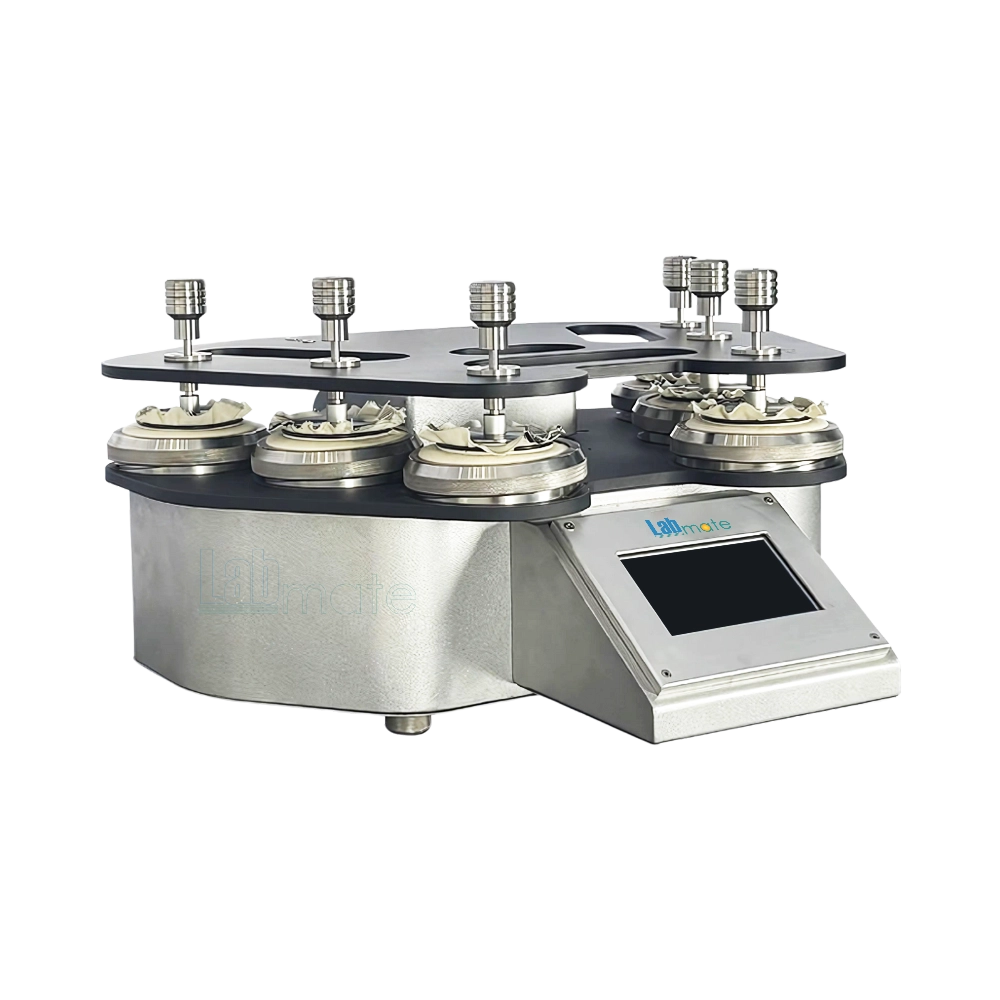

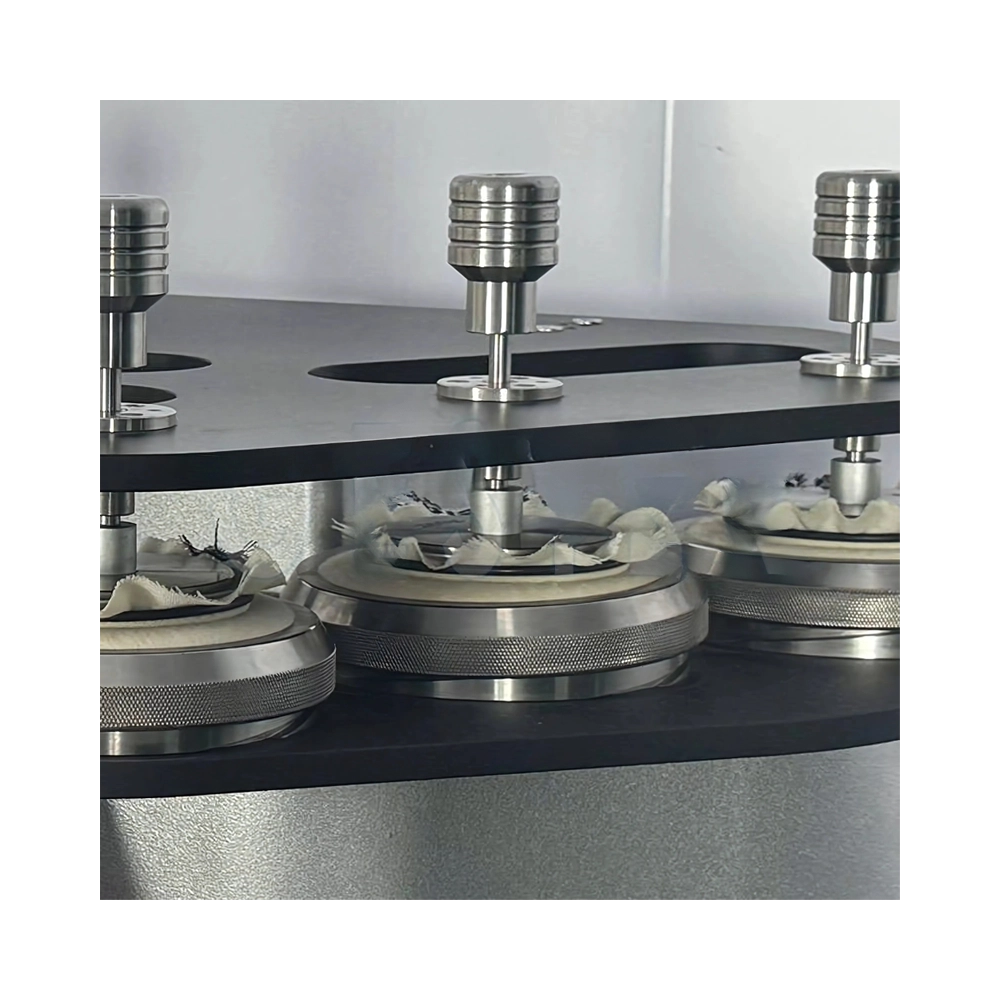

Martindale Abrasion Tester LMMAT-A102 is designed to assess textile materials abrasion and pilling resistance under controlled conditions. It features multiple test stations, allowing testing of several fabric samples, increasing overall testing efficiency. Initiated with adjustable load weights enable tester to simulate different material stress levels. It enhances productivity and is adjustable for different pressure levels, accommodating various fabric types. Our Tester supports textile, automotive, and upholstery industries in testing fabric strength, and material response to continuous abrasion.
Specifications
| Working Positions | 9 |
| Control Mode | PLC control and touch screen display |
| Counter Range | 0 to 999999 times |
| Holder Effective Diameter | Abrasion: Φ28.65 ±0.05 mm, Pilling: Φ90 ±0.10 mm |
| Abrasion Test Pressure | 198 ±2g, 397 ±5g, 595 ±7g |
| Pilling Test Pressure | 155 ±1g, 260 ±1g, 415 ±2g |
| Rotational Speed | 47.5 ± 2.5 r per min |
| Pressing Diameter | Φ120 ±10 mm |
| Dimensions | 90 × 62 × 41 cm |
| Pressing Weight | 2.5 ± 0.5 kg |
| Weight | 150 kg |
Pricing
| Product | Price | Unit | Action |
|---|---|---|---|
| Martindale Abrasion Tester LMMAT-A102 | $ 11175 | Each of 1 |
Features
Lightweight motion plates
Pressing Mechanism
Sturdy construction
Manual intervention
Standard Accessories
Model No | Accessory |
LMMAT-A102-A1 | Abrasion weight and holder |
LMMAT-A102-H1 | Pilling weight and holder |
LMMAT-A102-S1 | Standard abradents fabric |
LMMAT-A102-B1 | Standard backing foam 38mm |
LMMAT-A102-D1 | Standard woven felt discs 140mm |
LMMAT-A102-D2 | Standard woven felt discs 90mm |
LMMAT-A102-P1 | Photographs |
LMMAT-A102-W1 | Pressing weight |
LMMAT-A102-M1 | Mounting Fixture |
LMMAT-A102-B1 | Steel ball |
LMMAT-A102-L1 | Power line |
LMMAT-A102-T1 | Sample cutting template (Φ38mm, Φ90mm, Φ140mm) |
Applications
Martindale Abrasion Tester LMMAT-A102 evaluates abrasion and pilling resistance of textile structures by comparing surface changes. It performs abrasion testing on workwear, military fabrics, and sportswear under simulated wear conditions.
Similar Products
$ 10650 / Each of 1
$ 14500 / Each of 1
$ 9950 / Each of 1
Frequently Asked Questions
1 What is a Martindale Abrasion Tester?
A Martindale Abrasion Tester is an apparatus designed to determine the abrasion resistance of textiles, leather, and other materials by simulating natural wear patterns.
2 How does Martindale Abrasion Tester work?
It works by subjecting fabric samples to repetitive rubbing motions using a standard abrasive material under controlled pressure and cycles.
3 What materials can be tested using Martindale Abrasion Tester?
It can test materials such as woven and knitted fabrics, nonwovens, synthetic leather, and upholstery textiles for abrasion and pilling resistance.
4 Can Martindale Abrasion Tester be used for automotive upholstery testing?
It is widely used in the automotive industry to assess the abrasion resistance of seat fabrics, headliners, and interior trim materials.
5 Is Martindale Abrasion Tester suitable for leather product testing?
It is suitable for testing synthetic and natural leather used in shoes, handbags, and furniture to ensure surface durability and wear performance.
6 Can Martindale Abrasion Tester be used for medical textiles?
It is used to test medical textiles like hospital bed covers and patient gowns to ensure they can endure frequent laundering and use.
7 How is Martindale Abrasion Tester used in military fabric testing?
It is used in military fabric testing to ensure uniforms and gear can resist harsh wear conditions in field operations.
8 Is Martindale Abrasion Tester applicable in sportswear testing?
It is applicable in sportswear testing to evaluate the resistance of fabric to wear during high-friction activities like running, cycling, and training.
9 How does Martindale Abrasion Tester contribute to eco-friendly fabric testing?
It contributes to eco-friendly fabric testing by helping manufacturers evaluate whether sustainable materials like organic cotton or recycled polyester meet durability standards.
10 How can Martindale Abrasion Tester support product development?
It supports product development by providing early insights into how materials will perform under stress, allowing designers to choose better fabrics and finishes.
