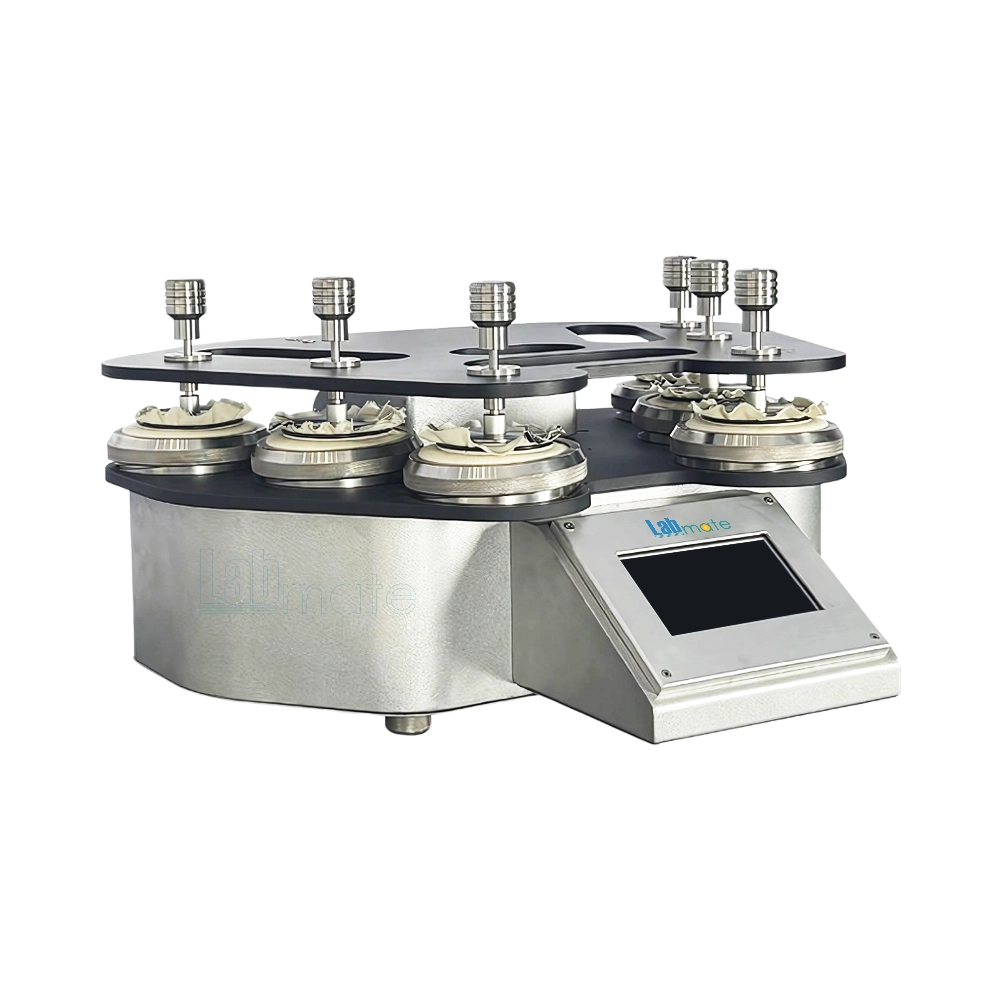

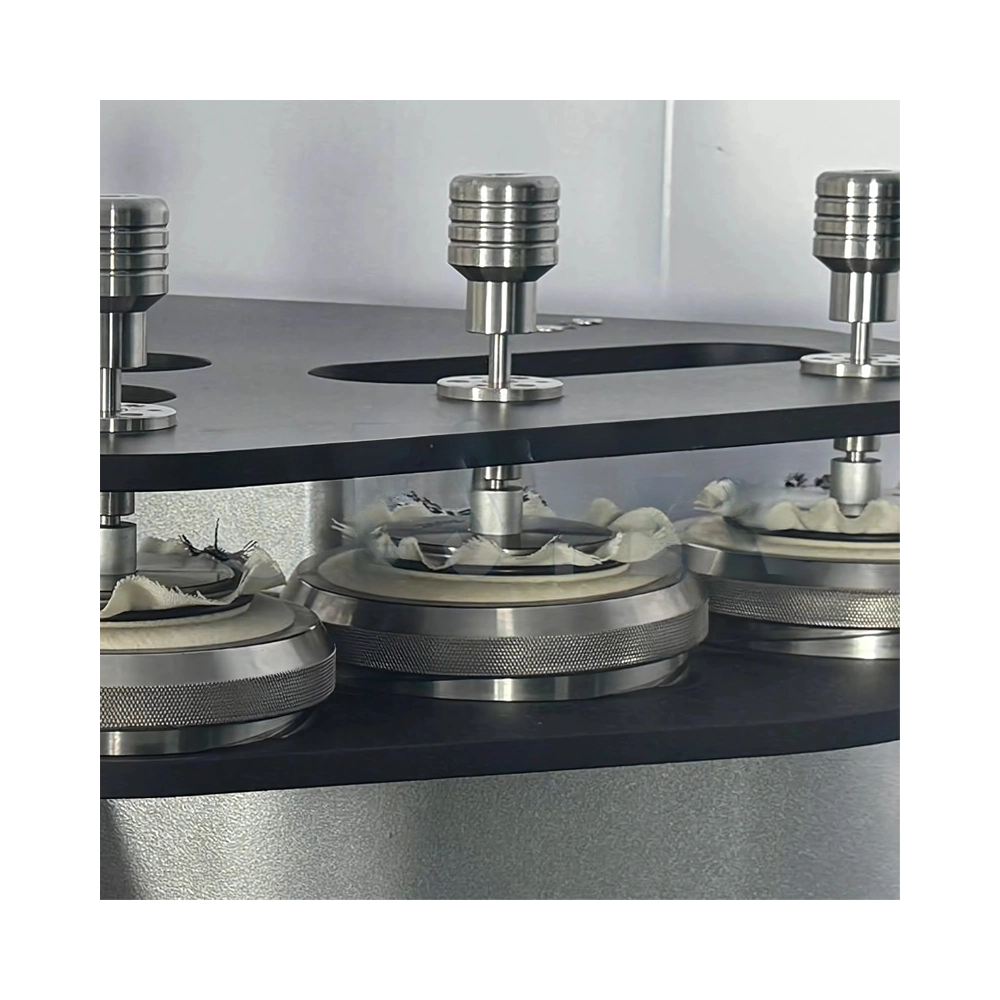

Martindale Abrasion Tester LMMAT-A101 has 6 position functionalities to optimize fabric testing volume. Integrated with modern control panel and touch interface, simplifies adjustments and operation tracking. It features automatic cycle counter with wide range to handle diverse testing durations. It employs balanced pressure across specified diameters, ensuring consistent and repeatable abrasion patterns. Our Tester offers stable operation and multi-fabric capability, ideal for comprehensive textile testing in controlled environments.
Specifications
| Working Positions | 6 |
| Control Mode | PLC control and touch screen display |
| Counter Range | 0 to 999999 times |
| Holder Effective Diameter | Abrasion: Φ28.65 ±0.05 mm, Pilling: Φ90 ±0.10 mm |
| Abrasion Test Pressure | 198 ±2g, 397 ±5g, 595 ±7g |
| Pilling Test Pressure | 155 ±1g, 260 ±1g, 415 ±2g |
| Rotational Speed | 47.5 ± 2.5 r per min |
| Pressing Diameter | Φ120 ±10 mm |
| Power Supply | AC220V, 50 or 60Hz |
| Dimensions | 88×61×41 cm |
| Pressing Weight | 2.5 ± 0.5 kg |
| Weight | 130 kg |
Pricing
| Product | Price | Unit | Action |
|---|---|---|---|
| Martindale Abrasion Tester LMMAT-A101 | $ 10500 | Each of 1 |
Features
Quiet operation
Built-in memory function
Stable base structure
Multidirectional movement
Standard Accessories
Model No | Accessory |
LMMAT-A101-A1 | Abrasion weight and holder |
LMMAT-A101-H1 | Pilling weight and holder |
LMMAT-A101-S1 | Standard abradents fabric |
LMMAT-A101-B1 | Standard backing foam 38mm |
LMMAT-A101-D1 | Standard woven felt discs 140mm |
LMMAT-A101-D2 | Standard woven felt discs 90mm |
LMMAT-A101-P1 | Photographs |
LMMAT-A101-W1 | Pressing weight |
LMMAT-A101-M1 | Mounting Fixture |
LMMAT-A101-B1 | Steel ball |
LMMAT-A101-L1 | Power line |
LMMAT-A101-T1 | Sample cutting template (Φ38mm, Φ90mm, Φ140mm) |
Applications
Martindale Abrasion Tester LMMAT-A101 supports seamless switching and productivity without hardware adjustments. It is especially for evaluating fabrics in sectors such as automotive, sportswear, medical textiles, protective clothing.
Similar Products
$ 14350 / Each of 1
$ 11025 / Each of 1
$ 9800 / Each of 1
Frequently Asked Questions
1 What is a Martindale Abrasion Tester?
A Martindale Abrasion Tester is an apparatus designed to determine the abrasion resistance of textiles, leather, and other materials by simulating natural wear patterns.
2 How does Martindale Abrasion Tester work?
It works by subjecting fabric samples to repetitive rubbing motions using a standard abrasive material under controlled pressure and cycles.
3 What materials can be tested using Martindale Abrasion Tester?
It can test materials such as woven and knitted fabrics, nonwovens, synthetic leather, and upholstery textiles for abrasion and pilling resistance.
4 Can Martindale Abrasion Tester be used for automotive upholstery testing?
It is widely used in the automotive industry to assess the abrasion resistance of seat fabrics, headliners, and interior trim materials.
5 Is Martindale Abrasion Tester suitable for leather product testing?
It is suitable for testing synthetic and natural leather used in shoes, handbags, and furniture to ensure surface durability and wear performance.
6 Can Martindale Abrasion Tester be used for medical textiles?
It is used to test medical textiles like hospital bed covers and patient gowns to ensure they can endure frequent laundering and use.
7 How is Martindale Abrasion Tester used in military fabric testing?
It is used in military fabric testing to ensure uniforms and gear can resist harsh wear conditions in field operations.
8 Is Martindale Abrasion Tester applicable in sportswear testing?
It is applicable in sportswear testing to evaluate the resistance of fabric to wear during high-friction activities like running, cycling, and training.
9 How does Martindale Abrasion Tester contribute to eco-friendly fabric testing?
It contributes to eco-friendly fabric testing by helping manufacturers evaluate whether sustainable materials like organic cotton or recycled polyester meet durability standards.
10 How can Martindale Abrasion Tester support product development?
It supports product development by providing early insights into how materials will perform under stress, allowing designers to choose better fabrics and finishes.
