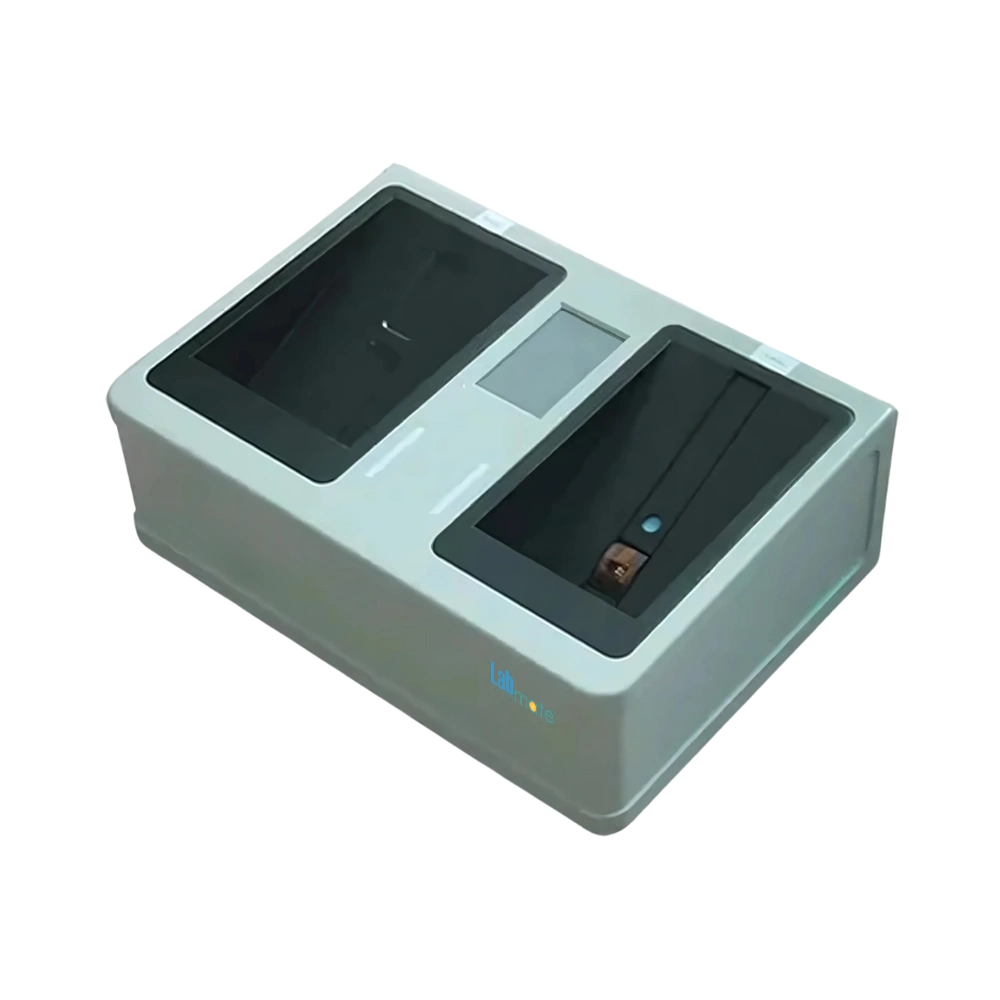

Liquid Explosive Detector LMLED-A200 can detect above 200 liquids with minimum volume of 50ml. It features electromagnetic detection and heat conduction technique for non-invasive liquid inspection. Equipped with simultaneous dual-container scanning for quick response in real-time. Incorporates automatic counting system supporting over 1,000,000 records for long-term monitoring. Our Detector ensures liquid screening for security in various settings.
Specifications
| Detectable Liquids | Alkane, alkene, alcohol, ester, gasoline, kerosene, diesel, ether, isopropyl ether, rosin, banana oil, nitrobenzene, n-ethane, n-heptane, n-octane, n-pentane, cyclopentane, Isopentane, propylene oxide, 1,2-dichloroethane, trichloromethane, ethanol, methanol, isopropanol, tert-butanol, n-propanol, acetone, cyclohexanone, benzene, xylene, toluene, carbon disulfide, paint, thin material, diethylamine, tetrahydrofuran, styrene, methyl benzoate, methyl tert-butyl ether, 1, 4-dioxane, pyridine, acetaldehyde, butyl butyrate, diethylene glycol, methyl cyclohexane, methylamine alcohol solution, acetic acid, oleic acid, hydrochloric acid, sulfuric acid, nitric acid, ethyl acetate, hydrogen peroxide, nitromethane, glycol, sodium hydroxide aqueous solution (40%), potassium hydroxide aqueous solution (40%), Ethanol (70%), Isopropyl alcohol (70%), etc. |
| Working Temperature | -20 to 65℃ |
| Minimum Detectable volume | 50 ml |
| Detection Mode | Small, General, Special |
| Initialization Time | 2.7 Seconds |
| Self-Test Time | Less than or equal to 2 seconds |
| Detectable Container Materials | Plastic/glass/metal/ceramics/paper |
| Response Time | Non-metallic containers- 1 second |
| Alarm Mode | Sound/light/LCD |
| Data Storage | 100,000,000 records |
| Data Export Method | USB |
| Detectable Container Height | 60 to 400 mm |
| Detectable Container Radius | 30 to 200 mm |
| Storage Temperature | -25 to 70℃ |
| Relative Humidity | 0 to 95% |
| Power Supply | AC100 to 240V, 50/60Hz |
| Dimension | 460×335×200 mm |
| Weight | 3.974 Kg |
Pricing
| Product | Price | Unit | Action |
|---|---|---|---|
| Liquid Explosive Detector LMLED-A200 | $ 6431.25 | Each of 1 |
Features
Compact and bench-top
No container opening
Safe-liquid recognition
Manual reset
Non-radioactive design
Applications
Liquid Explosive Detector LMLED-A200 is ideal for advanced liquid inspection for security screenings at subway stations, airports, railway terminals, public events, and critical infrastructures.
Selection Guide
Liquid Explosive Detector LMLED-A200 is a reliable and advanced solution designed for the detection of hazardous liquids in high-security areas such as airports, railway stations, customs, and government buildings. Based on research studies, it is effective in identifying potential threats like peroxide-based explosives and flammable liquids without the need to open containers, using advanced spectroscopy and algorithmic analysis. This makes it suitable not only for routine security screening but also for field experiments and forensic investigations. The model is typically certified under international standards such as ECAC Type A and Type B, which confirms its accuracy and compliance with global aviation security requirements. Customers should select this detector if they require a fast, non-invasive, and certified system for identifying liquid explosives in sensitive or regulated environments.
