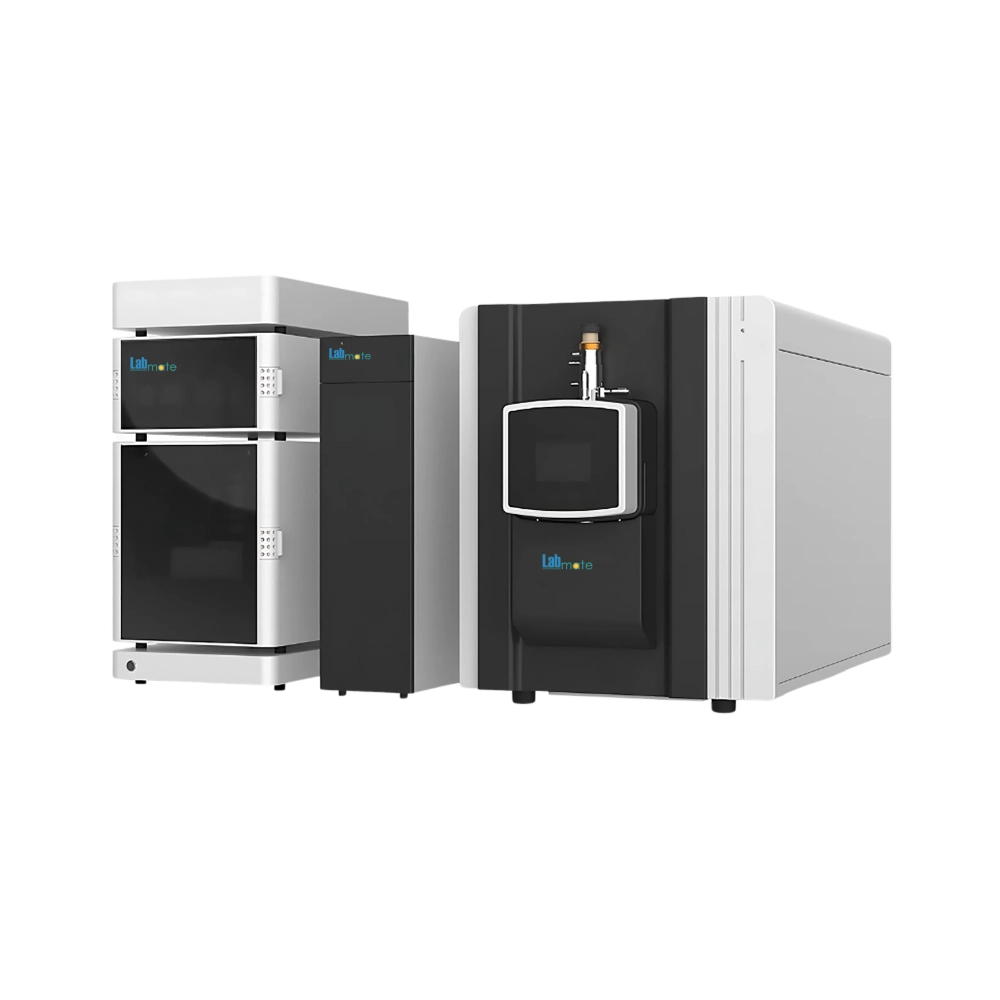

Liquid Chromatograph Mass Spectrometer LMLCMS-A101 features 10 to 2000 amu mass range and 10,000 amu/s scanning speed. Its single quadrupole and fast polarity switching system ensures steadfast compound identification. It is equipped with ESI and APCI ionization techniques, meeting rigorous analytical demands. Incorporated with advanced software that enables automated control and compliant data analysis. Our Spectrometer offers high-performance, ideal for pharmacokinetic studies, metabolite profiling, and pollutant analysis.
Specifications
| Mass Range | 10 to 2000 amu |
| Resolution | FWHM ≤ 0.6 amu |
| Scanning Speed | 1000 amu/s (standard), 10000 amu/s (fast mode) |
| Mass Axial Stability | ±0.2 amu per 12 hrs |
| Peak Area Repeatability | RSD ≤ 4.6% |
| Retention Time Repeatability | RSD ≤ 1.5% |
| Polarity Switching Speed | 20ms |
| Ion Source Flow Rate | ESI: 11 to 1000 µL/min APCI: 50 to 2000 µL/min |
| Ion Source Temperature | 40 to 200℃ |
| Corona Current (APCI) | 0 to 10 µA |
| HPLC Flow Range | 0.001 to 9.999 mL/min |
| HPLC Flow Accuracy | RSD ≤ 0.06% |
| HPLC Pressure Resistance | HPLC: Max 42 MPa, UHPLC: Max 60 MPa |
| Column Oven Temperature Range | Room temperature to 80℃ |
| Working Temperature | 20℃ to 30℃ |
| Humidity | 70% |
| Power Supply | 220V ±10%, 10A, 50Hz |
| Weight | 23kg |
Pricing
| Product | Price | Unit | Action |
|---|---|---|---|
| Liquid Chromatograph Mass Spectrometer LMLCMS-A101 | $ 70362.5 | Each of 1 |
Features
Optimized Sample Separation
Stable injection system
High-Pressure Gradient Pump
Gold-plated Molybdenum Quadrupole
LCD Colour Display
Standard Accessories
Accessories | Quantity | Unit |
MS accessory Kit | 1 | set |
LC accessory Kit | 1 | set |
Vacuum mechanical Pump | 1 | set |
Flow injection Pump | 1 | set |
Liquid phase ultra-high pressure infusion pump | 1 | set |
Liquid waste module | 1 | set |
Solvent Tray | 1 | set |
Applications
Liquid Chromatograph Mass Spectrometers LMLCMS-A101 are essential for complex analytical experiment across pharmaceuticals, chemical synthesis, food safety, environmental protection, and industrial analysis.
Selection Guide
Liquid Chromatograph Mass Spectrometer LMLCMS-A101 is a high-performance analytical instrument designed for accurate mass analysis in complex sample matrices. It is particularly suitable for applications in pharmaceutical development, proteomics, environmental monitoring, and food safety testing. With a wide mass range of 10 to 2000 amu and a resolution of FWHM ≤ 0.6 amu, this system ensures accurate detection and identification of small molecules, peptides, and larger biomolecules. The fast scanning speeds of 1000 amu/s in standard mode and up to 10000 amu/s in fast mode support high-throughput experiments and real-time analysis. Additionally, its excellent mass axial stability of ±0.2 amu over 12 hours ensures consistent and reliable long-term operation. Ideal for research studies requiring high resolution and rapid data acquisition, it is well-suited for advanced analytical laboratories and comes with standard certifications to meet regulatory compliance for validated workflows.
Similar Products
$ 160825 / Each of 1
Frequently Asked Questions
1 What is a Liquid Chromatograph Mass Spectrometer?
A Liquid Chromatograph Mass Spectrometer is an apparatus designed to combine liquid chromatography and mass spectrometry to separate, identify and quantify compounds in a sample.
2 What types of samples can be analyzed using Liquid Chromatograph Mass Spectrometer?
It can analyze a wide range of samples, including biological samples, food, pharmaceuticals, environmental samples and chemical substances.
3 What kind of data does Liquid Chromatograph Mass Spectrometer provide?
It provides both qualitative and quantitative data.
4 How can Liquid Chromatograph Mass Spectrometer help in the detection of biomarkers?
It can detect and quantify biomarkers by separating them from other compounds in a complex biological matrix.
5 Can Liquid Chromatograph Mass Spectrometer detect both small and large molecules?
It is highly versatile and can detect both small and large biomolecules.
6 How does Liquid Chromatograph Mass Spectrometer help in drug development?
It is used in drug development to study the pharmacokinetics of drugs, identify drug metabolites and test for impurities or contaminants.
7 What is the role of the ionization source in Liquid Chromatograph Mass Spectrometer?
The ionization source is crucial in Liquid Chromatograph Mass Spectrometer to transform the compounds of sample into charged particles (ions) that can be detected by the mass spectrometer.
8 Can Liquid Chromatograph Mass Spectrometer be used to analyze proteins and peptides?
It is widely used in proteomics to analyze proteins and peptides.
9 How is sample prepared for Liquid Chromatograph Mass Spectrometer analysis?
Sample preparation involves dissolving or diluting of sample in a suitable solvent, removing particulates through filtration and concentrating the sample.
10 Can Liquid Chromatograph Mass Spectrometer help in identifying unknown compounds in a sample?
It can identify unknown compounds by analyzing their mass-to-charge ratios and comparing the resulting spectra with known databases.
