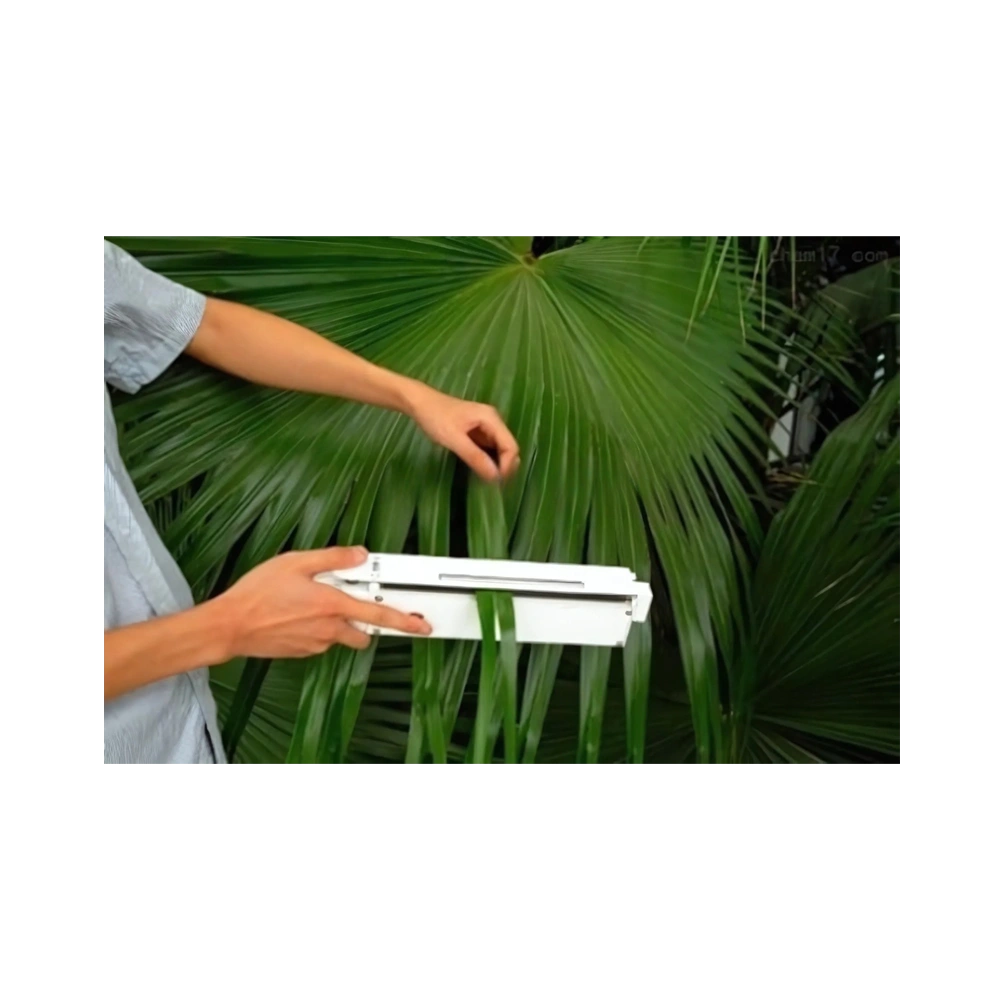

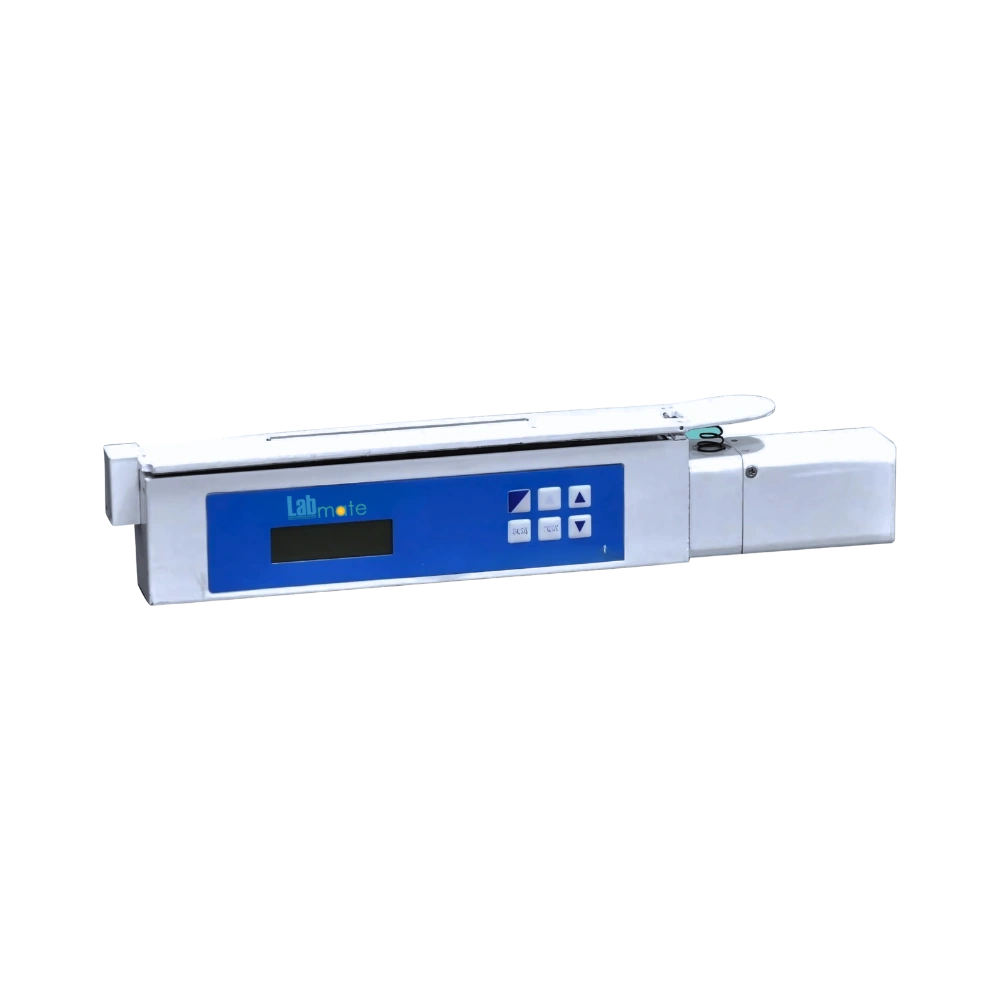

Leaf Area Meter LMLAM-A103 supports sample thickness up to 7 mm and width 220 mm. It features narrow-leaved plants like wheat and rice, ideal for crop research and physiology studies. Incorporated with a high-quality CCD scanner, it captures consistent measurements by sliding over living leaves. Equipped with a CIS (Contact Image Sensor) that ensures detailed leaf imaging. Our Leaf Area Meter can handle up to 1000 scans, allowing extensive batch analysis.
Specifications
| Sensor Type | CIS contact image sensor |
| Scanner Type | high-quality CCD |
| Applicable Leaf Shape | Narrow-leaves (Wheat, Rice) |
| Measurement Units | mm, mm² |
| Maximum Leaf Length | 3 mm |
| Maximum Leaf Width | 220 mm |
| Scanning Speed | 200 mm/s |
| Area Measurement Precision | ±2 % (for sample area greater than 10%) |
| Area Measurement Resolution | 0.1 mm² |
| Length Measurement Resolution | 1 mm |
| Width Measurement Resolution | 0.1 mm |
| Sample Thickness | 7 mm |
| Display | 128×32 lattice, 2 lines |
| Data Storage Capacity | 9999 sets |
| Data Transmission | USB 2.0 |
| Scan Capacity | 1000 scans |
| Working Environment | -20 to 50°C temperature, 0 to 90% RH |
| Power Supply | 7.2 V 1.0 Ah rechargeable Li battery |
| Dimension | 182×64×40 mm |
| Net Weight | 1.5 Kg |
Pricing
| Product | Price | Unit | Action |
|---|---|---|---|
| Leaf Area Meter LMLAM-A103 | $ 8050 | Each of 1 |
Features
Multi Conversion Units
Large Data Storage Capacity
USB Interface
Rechargeable Li Battery
Digital Display
Standard Accessories
| Model No. | Accessory |
| LMLAM-A103-M1 | Main Unit And Internal Battery |
| LMLAM-A103-C1 | Charger |
| LMLAM-A103-D1 | Data Transmission Line |
| LMLAM-A103-U1 | U Disk |
| LMLAM-A103-I1 | Instrument Box |
Applications
Leaf Area Meter LMLAM-A103 is suitable for assessing foliage size in agricultural crops like wheat, rice, and maize.
Similar Products
$ 2987.5 / Each of 1
$ 4312.5 / Each of 1
$ 2400 / Pack of 1
$ 12075 / Each of 1
$ 5562.5 / Each of 1
Frequently Asked Questions
1 What is a Leaf Area Meter?
A Leaf Area Meter is an instrument designed to measure the surface area of leaves through photometric technology.
2 Can Leaf Area Meter be used in crop breeding programs?
It is used in crop breeding programs to evaluate leaf size and canopy structure.
3 Can Leaf Area Meter be used for measuring leaf area of plants with compound leaves?
It can measure surface area of compound leaves.
4 Can Leaf Area Meter be used in climate change studies?
It is widely used in climate change studies in order to track the adaptation of plants to changing environmental conditions.
5 Can Leaf Area Meter measure surface area on small plants or seedlings?
It can measure surface area of leaves from small plants or seedlings.
6 Can Leaf Area Meter assist in studying plant diseases?
It is commonly used to study the impact of diseases on leaf growth.
7 Can Leaf Area Meter help in assessing environmental impacts on plant growth?
It can monitor the influence of environmental factors such as temperature, humidity, air quality and pollution on plant growth.
8 Can Leaf Area Meter be used for aquatic plants?
It can be used for aquatic plants such as floating or submerged species.
