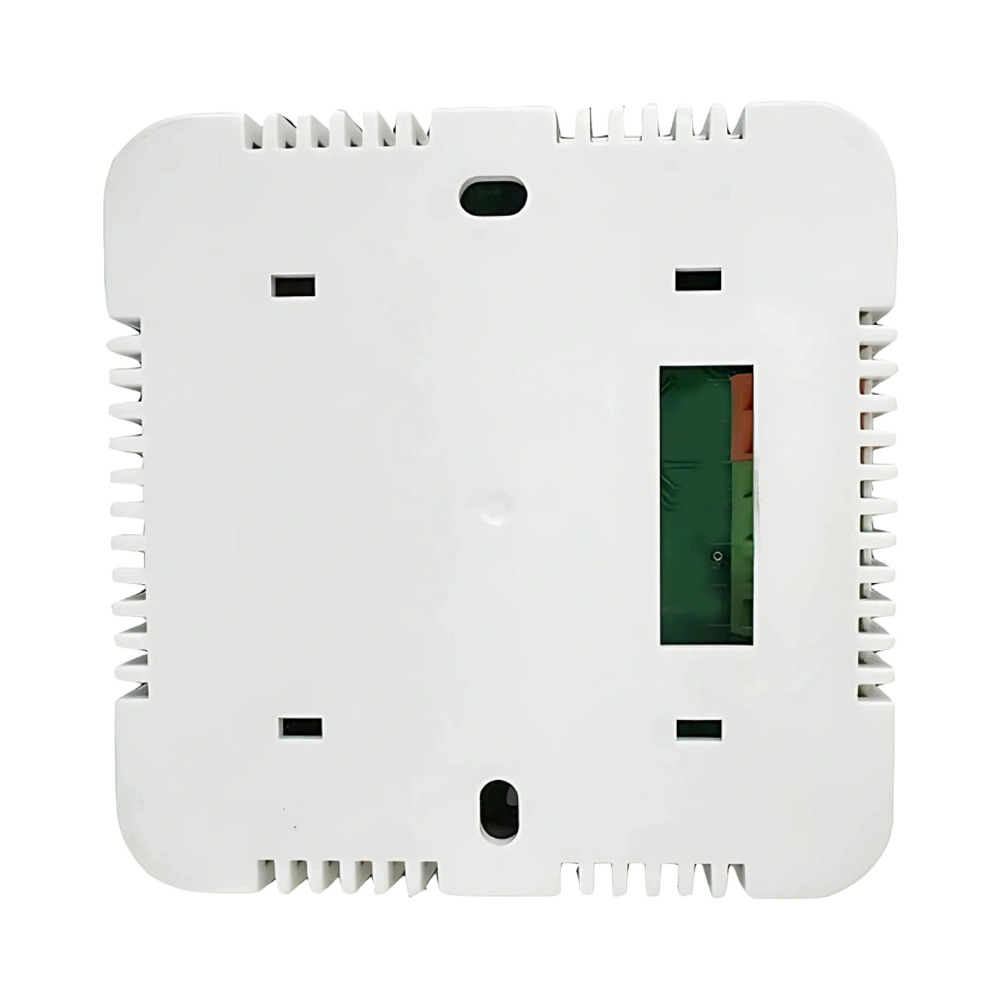

Indoor Air Quality Monitor LMAQM-B101

Indoor Air Quality Monitor LMAQM-B101 offers CO₂ measuring range of 0 to 5000 ppm. It features 1.3-inch OLED display for clear, air quality parameter visualization. It monitors PM2.5, PM10, CO₂, CO, HCHO, TVOC, temperature, and humidity simultaneously in real time. It is compact and fits standard 86-type wall boxes for quick installations. Our Air Quality Monitor is ideal for smart homes, HVAC systems, hospitals, and commercial buildings.

Catalog Send Mail Whatsapp

Specifications

Working Temperature Range -20°C to +60°C
Humidity Range 5% to 95% RH
Particle Measuring Range 0.3 to 1.0, 1.0 to 2.5, 2.5 to 10 µm
PM2.5 Effective Concentration Range 0 to 500 µg/m³
PM2.5 Maximum Concentration Range 0 to 2000 µg/m³
Particle Measurement Resolution 1 µg/m³
CO₂ Measuring Range 0 to 5000 ppm
CO₂ Maximum Range 0 to 10000 ppm
CO₂ Sensor Resolution ±50 ppm + 3% of reading
Formaldehyde Effective Range 0 to 1 mg/m³
Formaldehyde Maximum Range 0 to 2 mg/m³
Formaldehyde Sensor Resolution 0.001 mg/m³
TVOC Sensitive Gases Toluene, formaldehyde, benzene, alcohol, acetone, etc.
TVOC Measuring Range 1 to 5 mg/m³
TVOC Sensor Resolution 0.001 mg/m³
Temperature Measuring Range -40°C to +100°C
Temperature Resolution 0.01°C
Humidity Measuring Range 0 to 99% RH
Humidity Resolution 0.01% RH
CO Measuring Range 0 to 500 ppm
CO Maximum Range 0 to 1000 ppm
CO Sensor Resolution ±10 ppm + 3% of reading
Program Memory 4 MB
Data Storage 1024k, 1-year data retention without power
Power Consumption Less than 10 W
Power Supply DC 24V
Mounting Hole Distance 60 to 66 mm
Dimension 86 × 86 × 52 mm
Weight 450 g

Pricing

Product Price Unit Action
Indoor Air Quality Monitor LMAQM-B101 $ 1087.5 Each of 1

Features

Single-Chip Technology

CO₂ Level Indicator

Rs485 Communication

Configurable Analog Output

Wi-Fi, Bluetooth Connection

Applications

Indoor Air Quality Monitor LMAQM-B101 is ideal for smart homes, hospitals, offices, schools, HVAC systems, air purifiers, commercial buildings, and integrated control systems.
