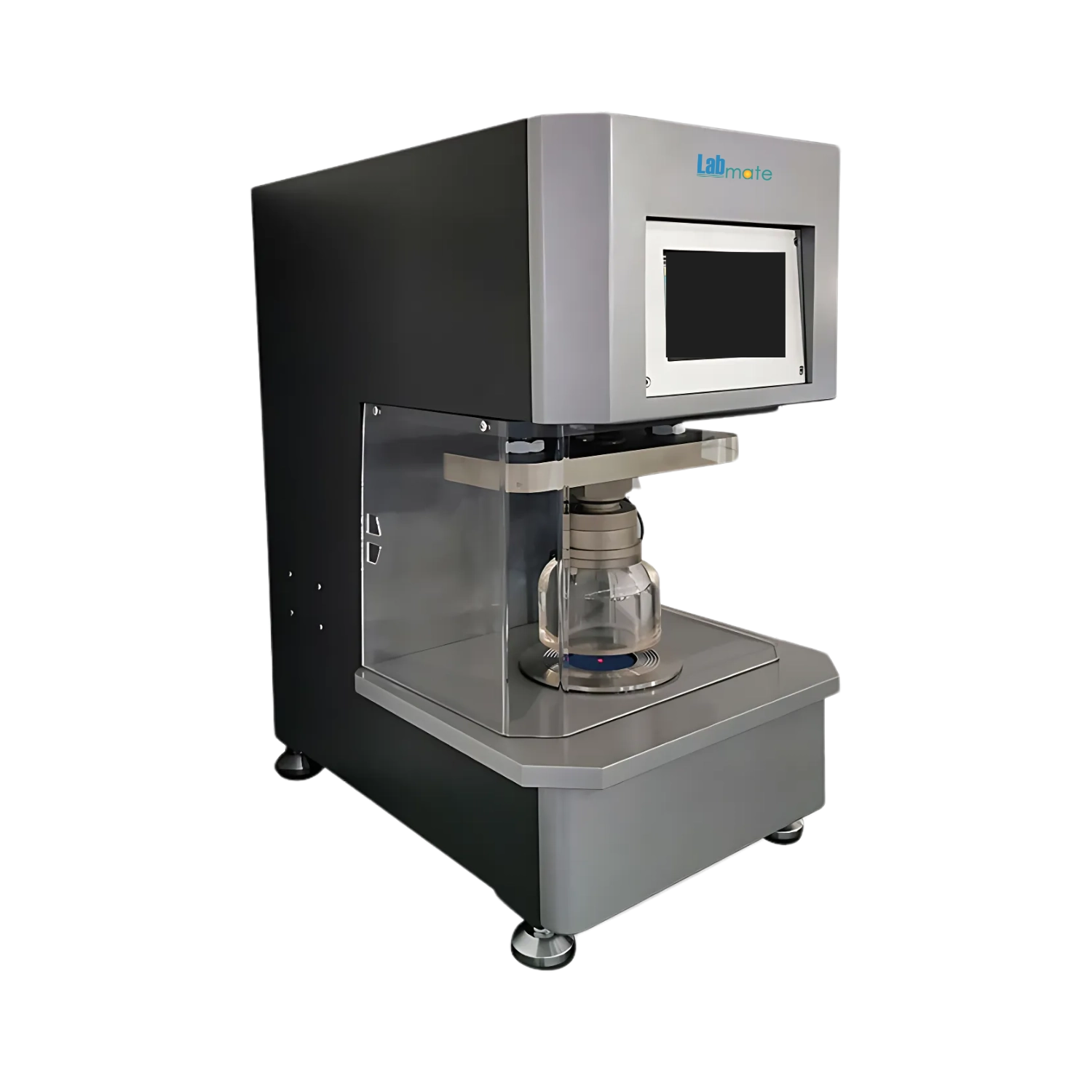

Hydraulic Pressure Tester LMHPT-A101 is for material bursting strength under controlled hydraulic pressure. It ensures stable force, delivering consistent and repeatable results for quality assessment. Integrated with adjustable regulation, that accommodates various materials and testing requirements. It offers customizable test settings, allowing adaptation to different testing standards and material properties. Our Tester is extensively applied in medical packaging, filtration materials, automotive composites, flexible plastic films, and industry compliance.
Specifications
| Maximum Pressure Capacity | 10.000 Mpa |
| Minimum Division Value | 0.003 Mpa |
| Test Area | 7.3 cm² (Φ30.5mm), 10 cm² (Φ35.7mm), 50 cm² (Φ79.8mm), 100 cm² (Φ112.8mm) |
| Thickness of Rubber Diaphragm | Less than or equal to 2mm |
| Pressure Speed | 100ml per min to 500ml per min |
| Accuracy | ±1 mm (when burst height is up to 70 mm) |
| Testing Units | Kpa, kgf per cm², lb per in², bar |
| Power Consumption | 500W |
| Power Supply | AC 220V, 50 or 60Hz |
| Dimensions | 550×450×700mm |
| Net Weight | 125kg |
Pricing
| Product | Price | Unit | Action |
|---|---|---|---|
| Hydraulic Pressure Tester LMHPT-A101 | $ 10150 | Each of 1 |
Features
High-Sensitivity Sensors
Quick-Swap Test Heads
Multi-Mode Testing
Digital Display
Standard Accessories
Model No | Accessory |
LMHPT-A100-T1 | Test set (7.3 cm², Φ30.5mm) |
LMHPT-A100-T2 | Test set (50 cm², Φ79.8mm) |
LMHPT-A100-W1 | Wrench |
LMHPT-A100-S1 | Stainless steel calibration plate |
LMHPT-A100-R1 | Rubber diaphragm |
LMHPT-A100-E1 | English operation software |
LMHPT-A100-C1 | Cable for PC connection |
Applications
Hydraulic Pressure Tester LMHPT-A101 is employed in quality control, to assess bursting strength and pressure resistance of various materials. It is essential for textile manufacturers to evaluate fabric durability, ensuring strength standards.
Similar Products
$ 8400 / Each of 1
Frequently Asked Questions
1 What is a Hydraulic Pressure Tester?
A Hydraulic Pressure Tester is an apparatus designed to measure the pressure in hydraulic systems to ensure they are operating within the required parameters.
2 How does a Hydraulic Pressure Tester work?
It works by connecting to a hydraulic line and using a pressure gauge or digital sensor to read the pressure of system accurately.
3 Can Hydraulic Pressure Tester be used in construction equipment maintenance?
It is commonly used in construction equipment maintenance to diagnose issues in excavators, loaders, and cranes by checking the hydraulic pressure in real-time.
4 How does Hydraulic Pressure Tester assist in troubleshooting agricultural machinery?
It helps troubleshoot agricultural machinery such as tractors and harvesters by identifying hydraulic pressure imbalances that can affect performance and efficiency.
5 How is Hydraulic Pressure Tester used in marine hydraulic systems?
In marine applications, it is used to verify the integrity of systems like steering, stabilizers, and winches, ensuring vessel safety and control.
6 How is Hydraulic Pressure Tester used in fluid mechanics research?
It is used to measure pressure changes in order to analyze flow behavior and validate theoretical models.
7 How does Hydraulic Pressure Tester apply to the pulp and paper industry?
It monitors pressure in hydraulic presses, rollers, and actuators used in paper processing to prevent mechanical failures.
8 How is Hydraulic Pressure Tester applied in the aerospace industry?
It is used during ground testing and system certification to validate the performance of flight control and landing gear hydraulics under precise pressure conditions.
9 Is Hydraulic Pressure Tester useful in the oil and gas industry?
It is essential for testing pressure control systems, blowout preventers (BOPs), and hydraulic actuators in exploration and drilling equipment.
10 How is Hydraulic Pressure Tester used in material handling and logistics?
It monitors and maintains hydraulic lift systems in forklifts, conveyors, and cranes, ensuring smooth and safe movement of goods.
