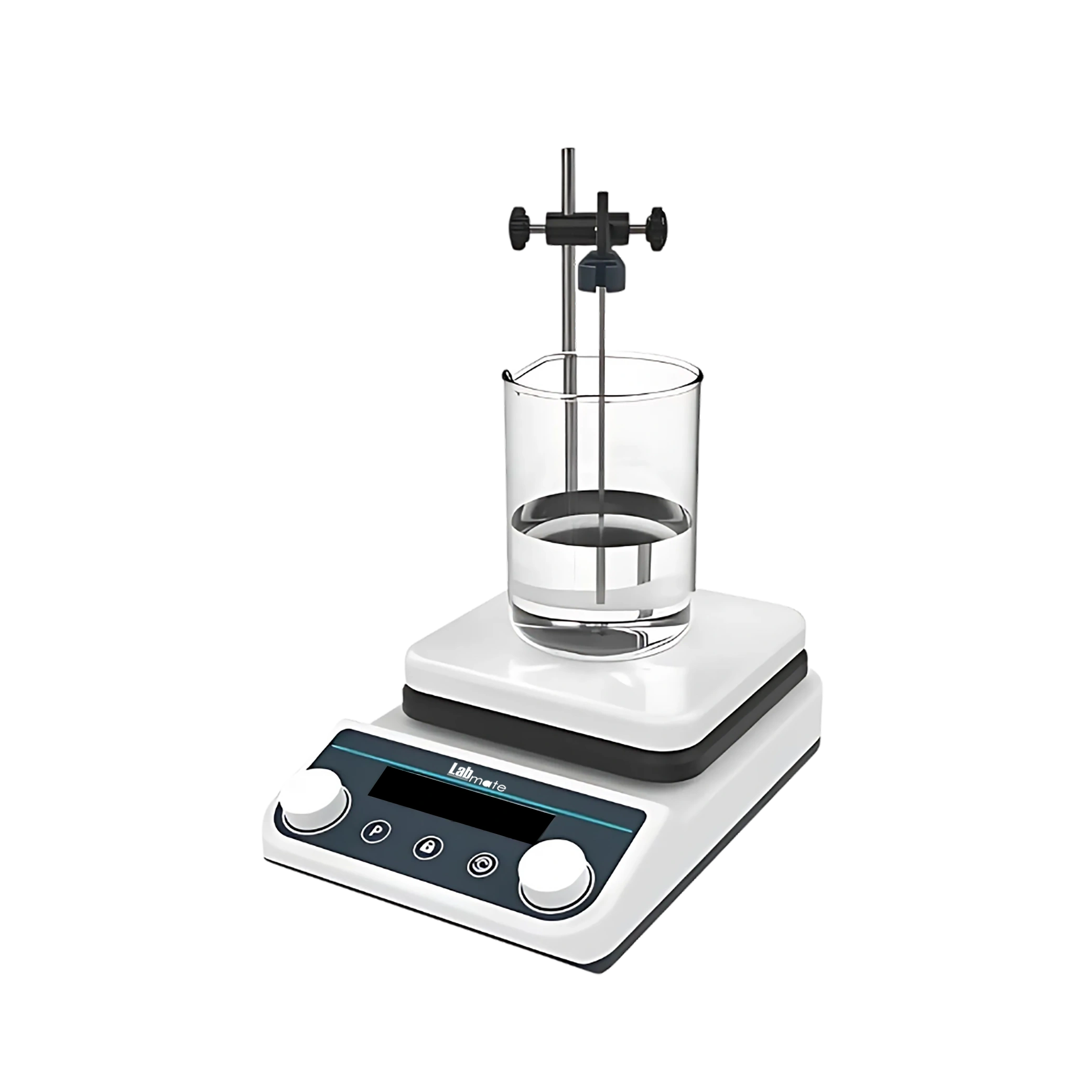

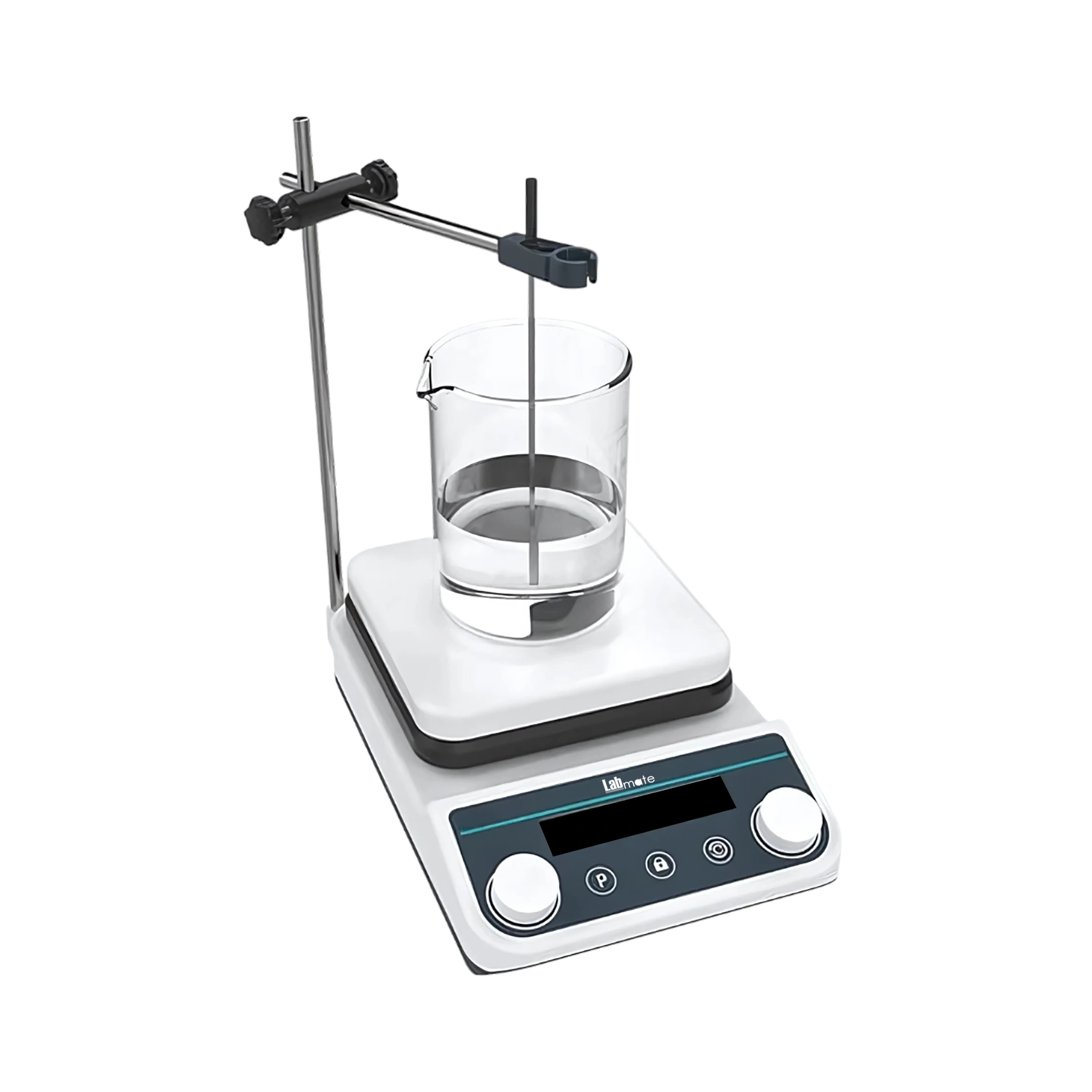

Hotplate Magnetic Stirrer LMHMS-A101

Hotplate Magnetic Stirrer LMHMS-A101 handles liquids up to 5 liters for versatile mixing. Integrated with adjustable speeds ranging from 50 to 1500 rpm for efficient rotation. It features a knob control for smooth adjustment and anticlockwise motion flow. It offers a ceramic-coated aluminum alloy surface for uniform heat distribution and easy cleaning. Our Magnetic Stirrer delivers quiet performance with a brushless motor for long-lasting operation.

Catalog Send Mail Whatsapp

Specifications

Maximum Stirring Capacity 5L
Speed Range 50 to 1500 rpm
Speed Increment 10 rpm
Maximum Temperature Of Hot Plate 280°C
Hot Plate Material Alumimium Alloy-Ceramic Coated
Display Digital
Control Method knob
Stir Bar Length 40 mm
Stir Bar Shape Linear
Stirring Direction Anticlockwise
Temperature Display Accuracy 0.1°C
Temperature Display Increment 1°C
Liquid Temperature Control Accuracy ±1°C
Plate Temperature Control Accuracy ±3°C
Temperature Sensor PT1000
Ambient Temperature 280°C
Motor Type Brushless Motor
Power Consumption 500 W
Power Supply AC110 to 220V
Hot Plate Dimension 160 ×160 mm
Dimension 285 ×180× 90 mm
Packaging Dimension 400 × 300 × 250 mm
Gross Weight 5kg

Features

PT1000 Temperature Sensor

Linear-Shaped Stir Bar

Efficient Power Consumption

Digital Display

Corrosion-Resistant Plate

Standard Accessories

Model No.Accessory
LMHMS-A101-R1Three Hole Probe Clamp
LMHMS-A101-S1Stand Support
LMHMS-A101-C1Cross Clip
LMHMS-A101-T1Temperature Probe
LMHMS-A101-B1Stirring Bar
LMHMS-A101-P1Power Cord

Applications

Hotplate Magnetic Stirrer LMHMS-A101 is suitable for dissolving cell culture media, buffers, and biological samples, while supporting the preparation of formulations, suspensions, and compound solutions in pharmaceutical research.

Similar Products

Hotplate Magnetic Stirrer LMHS-804

  • Speed Range: 100 to 1500 rpm
  • Temperature Range: RT+5°C to 340°C
  • Temperature Set Range: 0°C to 340°C
  • Safety Temperature: 390°C
  • Heating Plate Dimension: Ø137 mm

Hotplate Magnetic Stirrer LMHMS-A100

  • Maximum Stirring/Heating Capacity: 3L
  • Speed Range: 200 to 1600 rpm
  • Temperature Setting Range: 0 to 350℃
  • Temperature Control Range: RT+5 to 350℃
  • Timing Range: 1min to 99h59min/∞

Hot Plate Magnetic Stirrer LMHMS-803

  • Maximum Stirring Capacity: 20 to 20000 ml
  • Stirring Speed Range: 50 to 2500 r/min
  • Motor Torque: 80 mN·m
  • Liquid Temperature Range: Room Temperature to 250 °C
  • Heating Temperature Range: Room Temperature to 500 °C
Hot Plate Magnetic Stirrer LMHMS-801
  • Stirring Volume: 0 to 2000 mL
  • Stirring Speed: 0 to 1250 rpm
  • Heater: 450 W
  • Hotplate Temperature: Maximum 400°C
  • Ambient Temperature: < 50°C
Hotplate Magnetic Stirrer LMHS-805
  • Speed Range: 100 to 1500 rpm
  • Temperature Range: RT+5°C to 350°C
  • Temperature Set Range: 0°C to 350°C
  • Temperature Stability: ±1℃
  • Minimum Adjustable Safe Temperature: 50℃

Hot Plate Magnetic Stirrer LMHMS-802

  • Stirring Volume: 0 to 2000 mL
  • Stirring Speed: 0 to 1250 rpm
  • Heater: 380 W
  • Hotplate Temperature: Maximum 300°C
  • Ambient Temperature: < 50°C

Frequently Asked Questions

1 What are Hotplate Magnetic stirrers?

Hotplate Magnetic stirrers are laboratory devices that combine a hotplate for heating and a magnetic stirrer for mixing solutions.

2 How do Hotplate Magnetic stirrers work?

They work by using a rotating magnetic field to spin a magnetic stir bar inside a container while the hotplate heats the solution.

3 Can Hotplate Magnetic stirrers be used for preparing buffer solutions?

They are ideal for preparing buffer solutions by ensuring thorough mixing and uniform temperature during the dissolution process.

4 How do Hotplate Magnetic stirrers assist in sample digestion procedures?

They assist in sample digestion by providing controlled heating and mixing, which helps break down complex matrices effectively.

5 Can Hotplate Magnetic stirrers be used for media preparation in microbiology?

They are widely used for microbiological media preparation to ensure proper dissolving of agar and other components under heat and agitation.

6 Do Hotplate Magnetic stirrers support crystallization processes?

They support crystallization by allowing controlled temperature reduction and uniform mixing, essential for forming pure crystals.

7 Can Hotplate Magnetic stirrers be used in pharmaceutical formulation labs?

They are frequently used in pharmaceutical formulation labs for tasks such as mixing APIs with excipients under controlled heat.

8 How are Hotplate Magnetic stirrers used in polymer research?

They are used in polymer research to stir monomer solutions and initiators at precise temperatures during polymerization reactions.

9 Are Hotplate Magnetic stirrers useful in nanoparticle synthesis?

They are highly useful in nanoparticle synthesis where uniform heating and continuous stirring are critical to achieving desired particle size and dispersion.

10 Are Hotplate Magnetic stirrers suitable for quality control labs?

They are suitable for quality control labs where precise heating and agitation are needed to test chemical and physical properties of products.
