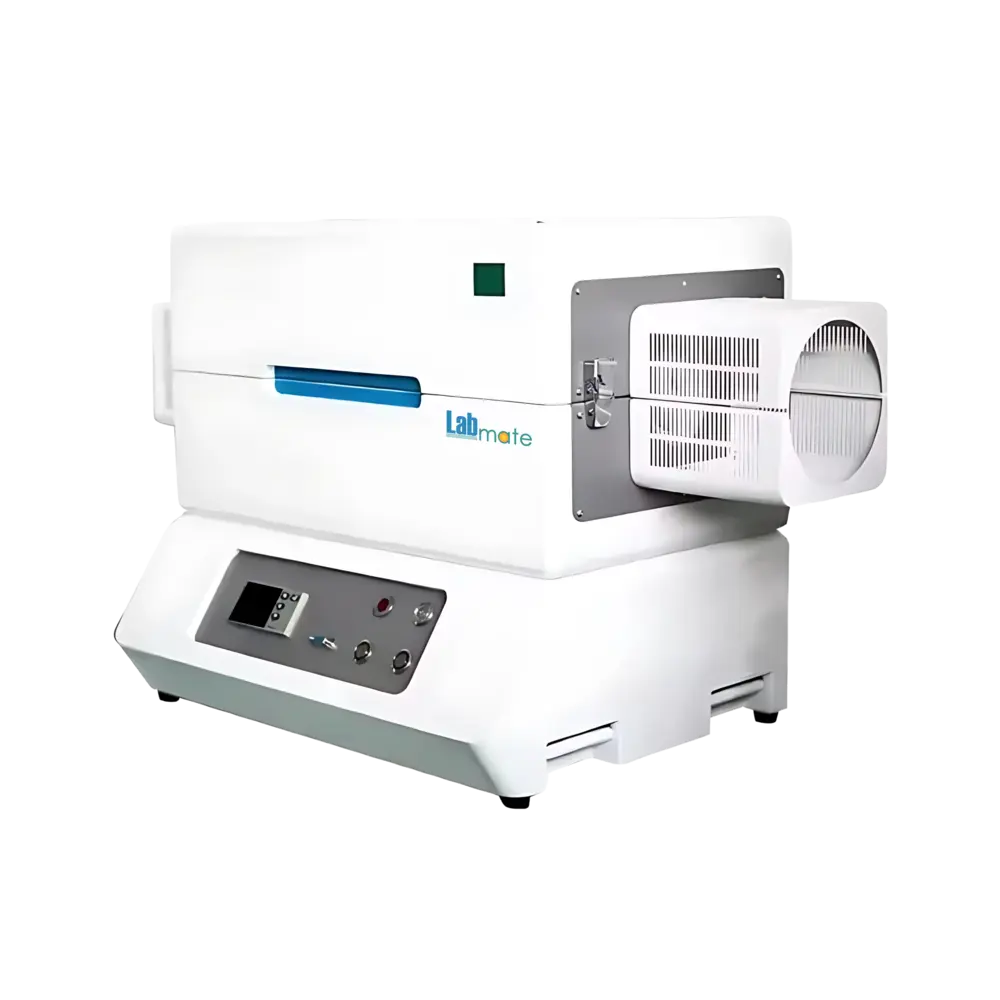

Horizontal Tube Furnace LMHTF-A101 features heating rate of 10℃/min, enabling efficient temperature rise. Its double-layer air cooling structure keeps external surface temperature safely under 60 ℃. Equipped with quartz vacuum tube running through furnace body, it allows stable and sealed environments. Incorporates heating elements made of resistance wire for consistent heat distribution. Our Tube Furnace enables heating, sintering, and annealing tasks in laboratories and industrial research facilities.
Specifications
| Maximum Temperature | 1200℃ |
| Rated Temperature | 1100℃ |
| Heating Rate | 10℃/min |
| Furnace Tube Size | φ50 (OD) ×1000 mm (customizable) |
| Chamber Size | Φ120×440 mm |
| Heating Zone Length | 440 mm |
| Constant Temperature Zone Length | 120 mm |
| Control System | Touch button |
| Power Consumption | 3 kW |
| Power Supply | AC220 V50/60 HZ |
| Outer Dimension | 580×500×520 mm |
| Weight | 45 kg |
Features
Alumina Fiber Chamber
Stainless Steel Flanges
AI Intelligent Control
K-Type Thermocouple
30-Segment Programming
Touch panel
Optional Accessories
Model No. | Accessory name | Unit | Quantity |
LMHTF-A101-Q1 | φ80 mm quartz tube | set | 1000 |
LMHTF-A101-Q2 | φ100 mm quartz tube | set | 1000 |
Applications
Horizontal Tube Furnace LMHTF-A101 supports high-temperature treatment, sintering, annealing, and material research in laboratories, universities, and industrial research centers.
