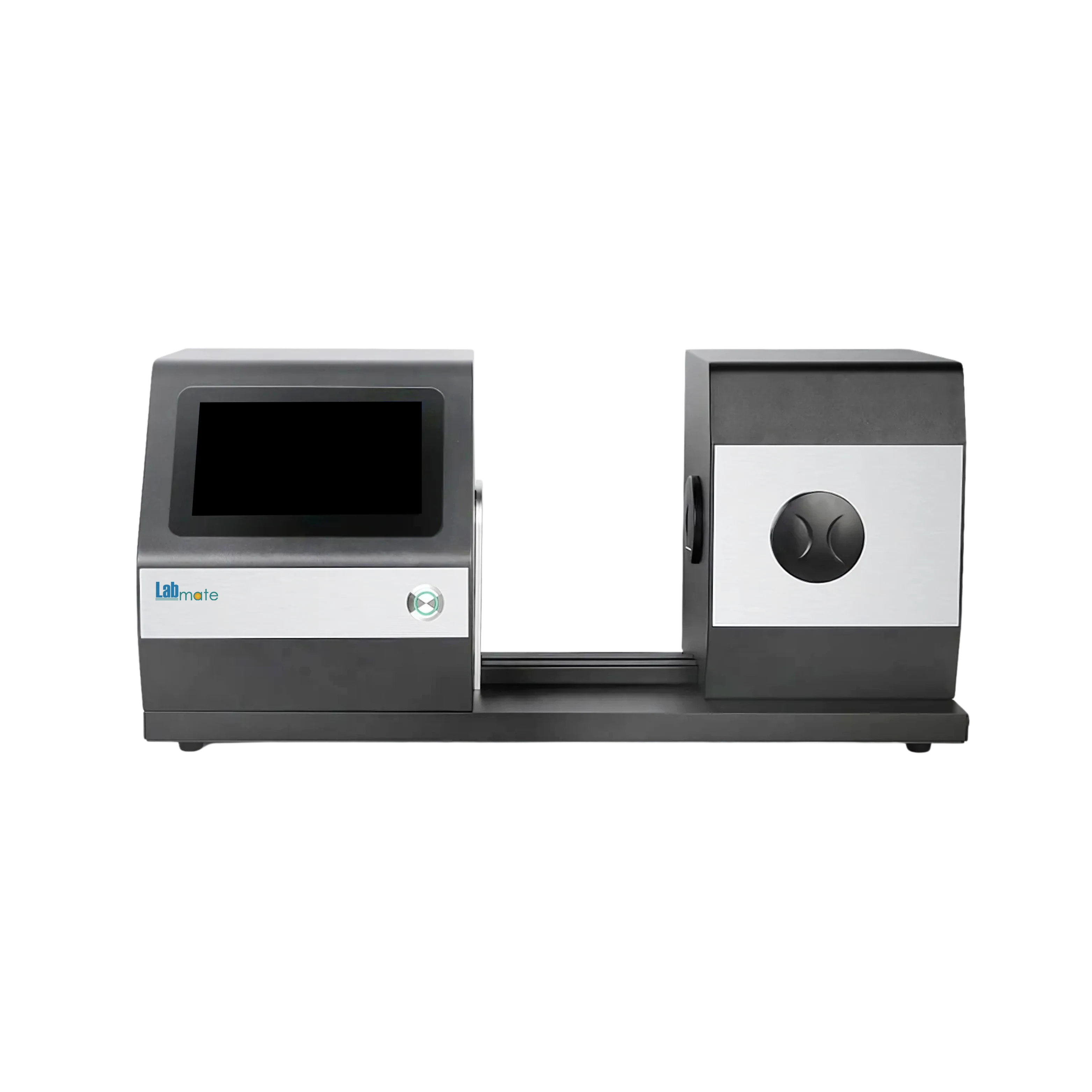

Color & Haze Meter LMHZM-A101 supports thickness up to 105mm, accommodating wide range of materials. Equipped with concave grating light-splitting system, it achieves refined wavelength separation. Delivers dependable haze and transmittance evaluation across opaque to fully transparent samples. Incorporated with high-performance LED light source, it ensures stable illumination. Our Haze Meter offers intuitive 7-inch capacitive touchscreen display for seamless control and navigation.
Specifications
| Transmittance Range | 0 to 100% |
| Resolution | 0.01 unit |
| Repeatability | Less than or equal to 0.05 |
| Sample Thickness | Less than 105 mm |
| Measurement Aperture | Φ20 mm / Φ15 mm / Φ8 mm / Φ4 mm |
| Measurement Time | About 1.5 s |
| Measuring Wavelength Range | 400 to 700 nm |
| Wavelength Interval | 10 nm |
| Half Bandwidth | 10 nm |
| Integrating Sphere Size | Φ154 mm |
| Illumination Mode | O/D (parallel light illumination, diffuse reflection reception) |
| Light splitting mode | Concave grating |
| Light Source | LED |
| Light Source Lifetime | Greater than 3 million measurements ( 5 years) |
| Illuminants | D65, A, C, D50, D55, D75, F1 to F12 |
| Sensor | 256-pixel dual array CMOS image sensor |
| Observer Angle | 2° / 10° |
| Color Space | CIE LAB, XYZ, Yxy, LCh, s-RGB, βxy |
| Color Difference Formulas | ΔEab, ΔE94, ΔEcmc (2:1), ΔEcmc (1:1), ΔE00 |
| Other Chromaticity Indicators | Haze, Transmittance, YI, Absorbance, WI, Gardner Index, Pt-Co Index |
| Inter-instrument Difference | Less than or equal to 0.4 (Φ20 mm aperture, standard deviation with reference haze sheet) |
| Display Parameters | Spectral graph, sample chromaticity value, color difference value/graph, chromaticity graph, color simulation, pass/fail results |
| Display Screen | 7-inch TFT Color Capacitive Touchscreen |
| Interface | USB, Print Serial Port, Bluetooth |
| Data Storage | 5000 standards, 20,000 samples |
| Operating Temperature | 0 to 40 °C |
| Operating Humidity | 0 to 85% |
| Storage Temperature | –20 to 50 °C |
| Storage Humidity | 0 to 85% |
| Power Supply | DC24 V, 3A power adapter |
| Dimensions (L × W × H) | 487 × 260 × 298 mm |
| Weight | 8.0 kg |
Pricing
| Product | Price | Unit | Action |
|---|---|---|---|
| Color & Haze Meter LMHZM-A101 | $ 6650 | Each of 1 |
Features
CMOS image sensor
Fast measurement speed
Extensive data storage
High-resolution optics
Multiple connectivity options
Comprehensive color analysis
Complies with international standards
Standard Accessories
Model No. | Accessory |
LMHZM-A101-P1 | Power adapter |
LMHZM-A101-Q1 | Quality management software |
LMHZM-A101-D1 | Data cable |
LMHZM-A101-C1 | Calibration box |
LMHZM-A101-M1 | Measuring caliber |
Optional Accessories
Applications
Color & Haze Meter LMHZM-A101 is employed in packaging industry, liquid analysis, and processing of glass, plastic, film, and display screens, for measuring haze, color, and transmittance.
Selection Guide
Color& Haze Meter LMHZM-A101 is a versatile instrument designed for research and industrial applications that require accurate evaluation of transparency, haze, and color in materials like plastics, glass, films, and coatings. It is widely used in quality control processes across industries such as automotive, packaging, and electronics. This model features multiple illuminants (A, C, D65, D50, D55, and D75, F1–F12), allowing accurate simulation of various lighting conditions. With a spectral response based on the CIE luminosity function y, it aligns with the human eye’s sensitivity, ensuring reliable visual assessments. Covering a wavelength range of 400 to 700 nm and a measurement range of 0 to 100%, the model provides comprehensive and standard-compliant data. Customers should consider this model for its suitability in research studies, experimental analysis, and certified testing environments where consistent and high-accuracy optical measurements are essential.
Similar Products
$ 6375 / Each of 1
Frequently Asked Questions
1 What is a Haze Meter?
A Haze Meter is an apparatus designed to quantify the degree of haze or cloudiness in materials.
2 Can Haze Meter be used in Quality Control?
It is used in Quality Control processes to ensure the transparency and clarity standards of products.
3 Do temperature and humidity affect Haze Meter readings?
They affect the material being measured by altering its surface characteristics and light scattering behavior.
4 Can Haze Meter be used in Aerospace Industry?
It is used in testing the transparency and clarity of windows, windshields and other transparent components in aircraft.
5 Can Haze Meter be used in Research and Development?
It is used to test the effects of different formulations, coatings and treatments on the transparency and clarity of materials.
6 Is Haze Meter Affected by Surface Contamination?
Surface contamination such as dust, fingerprints and oils impact the accuracy of haze measurements.
