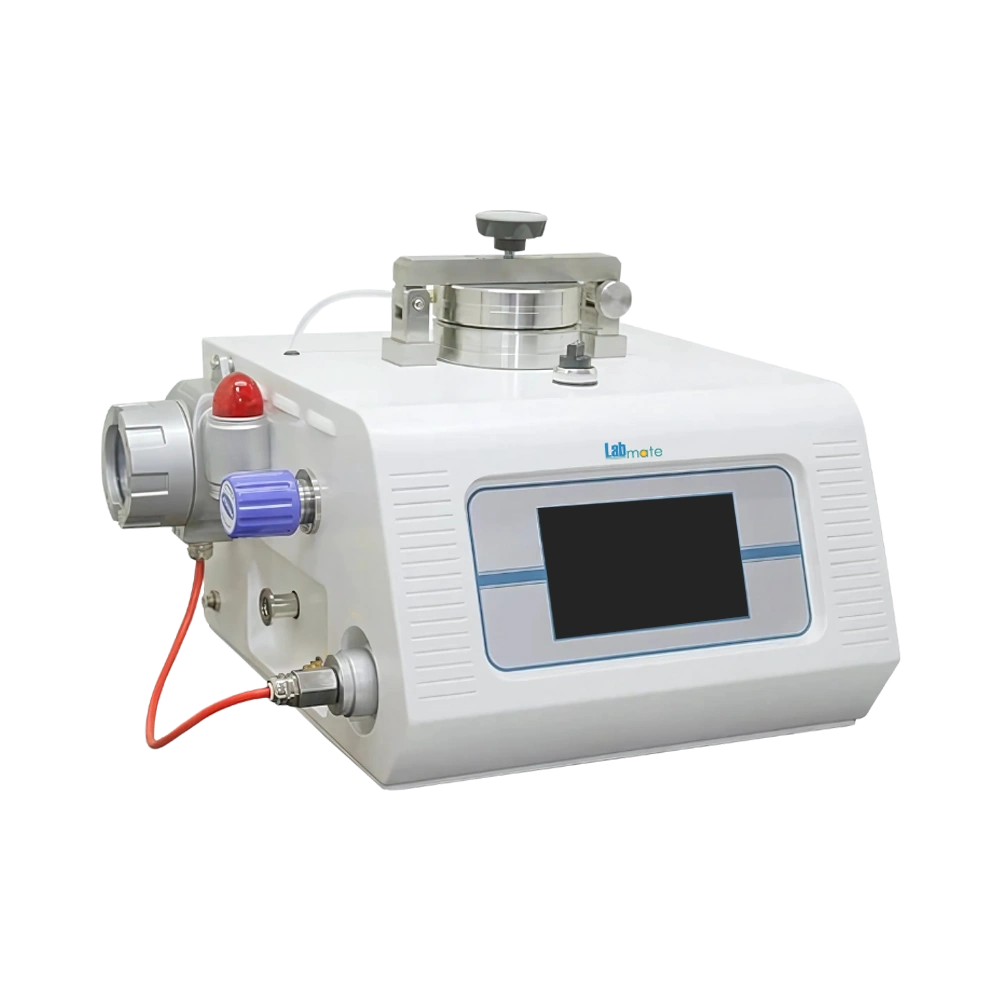

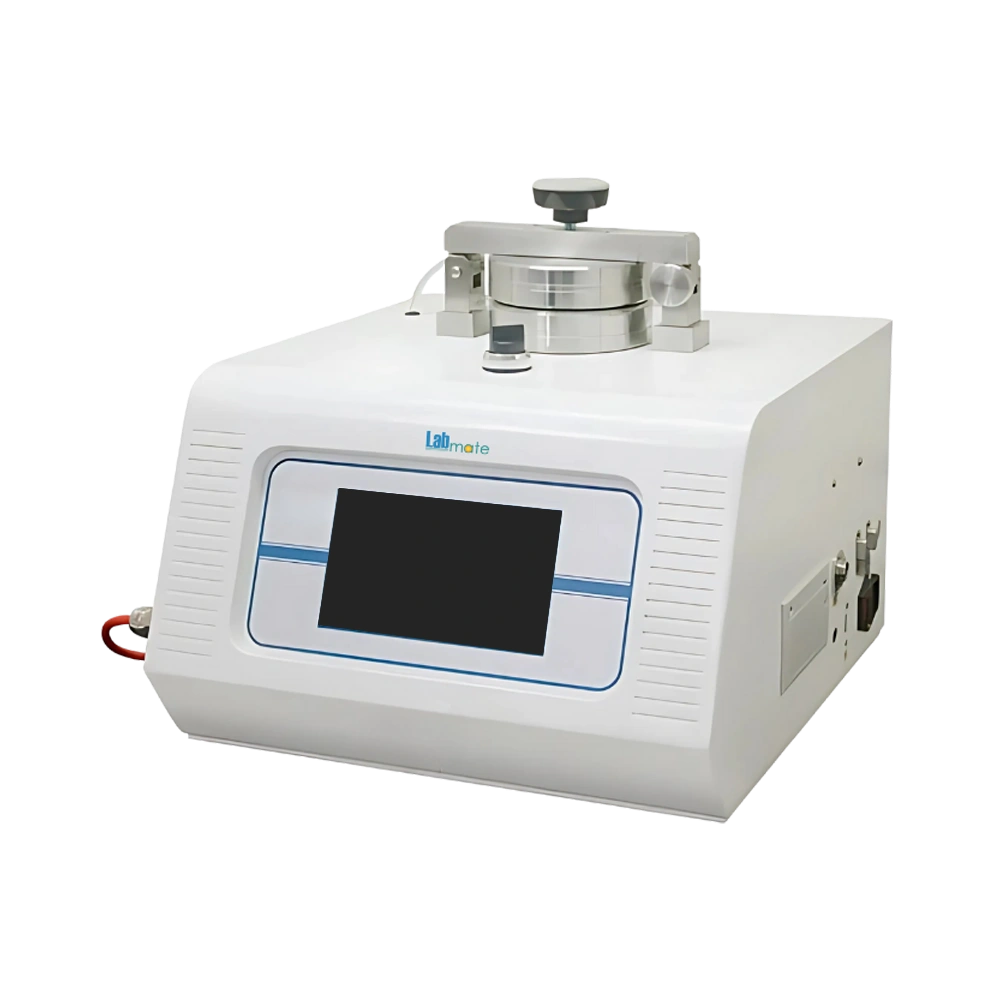

Gas Permeability Tester LMGPT-A100 measures gas transmission from 0.1 to 10,000 cm³/m² range. Equipped with 0.1MPa differential pressure to maintain consistent and stable measurement conditions. Integrated with single-sample setup designed for efficient evaluation of films, foils, and sheets. Incorporated with 0.05 Pa vacuum resolution for detecting extremely low levels of gas passage. Our Tester supports barrier testing across packaging, medical, food, and industrial material categories.
Specifications
| Test Range | 0.1 to 10000 cm³/m² |
| Differential Pressure | 0.1MPa |
| Number Of Samples | 1 |
| Vacuum Resolution | 0.05 Pa |
| Test Chamber Vacuum | Less than 10 Pa |
| Temperature Range | Ambient to 50°C |
| Temperature Accuracy | ±0.5°C |
| Sample size | Φ95 mm |
| Test Area | 33.18 cm² |
| Test Gas | O₂, N₂, CO₂, CH₄, H₂ and other gases |
| Test Pressure | 0.005 to 0.15 MPa |
| Port Size | Ф6 mm Polyurethane pipe |
| Power Consumption | 300W |
| Power Supply | AC 220V 50Hz |
| Dimension | 620 mm×520 mm×760 mm |
| Vacuum Dimension | 570 mm×520 mm×560 mm |
| Net weight | 75 kg |
Features
Automated operation
Real-time data display
Flammable gas safety features
Stainless-steel test chamber
Customizable test duration
Standard Accessories
| Model No. | Accessories |
| LMGPT-A100-I1 | Instrument |
| LMGPT-A100-P1 | Professional software |
| LMGPT-A100-C1 | Communication cable |
| LMGPT-A100-M1 | Micro printer |
| LMGPT-A100-S1 | Sampler |
| LMGPT-A100-F1 | Filter paper |
| LMGPT-A100-V1 | Vacuum pump |
Optional Accessories
| Model No. | Accessories |
| LMGPT-A100-SB1 | Sample cutting blades |
| LMGPT-A100-H1 | Humidity generator |
| LMGPT-A100-SC1 | Sample Cutter |
| LMGPT-A100-FP1 | Filter paper |
| LMGPT-A100-VP1 | Vacuum pump oil |
| LMGPT-A100-VG1 | Vacuum grease |
Applications
Gas Permeability Tester LMGPT-A100 measures gas permeability of films, sheets, composites and materials for packaging, aerospace, automotive and various industrial sectors.
