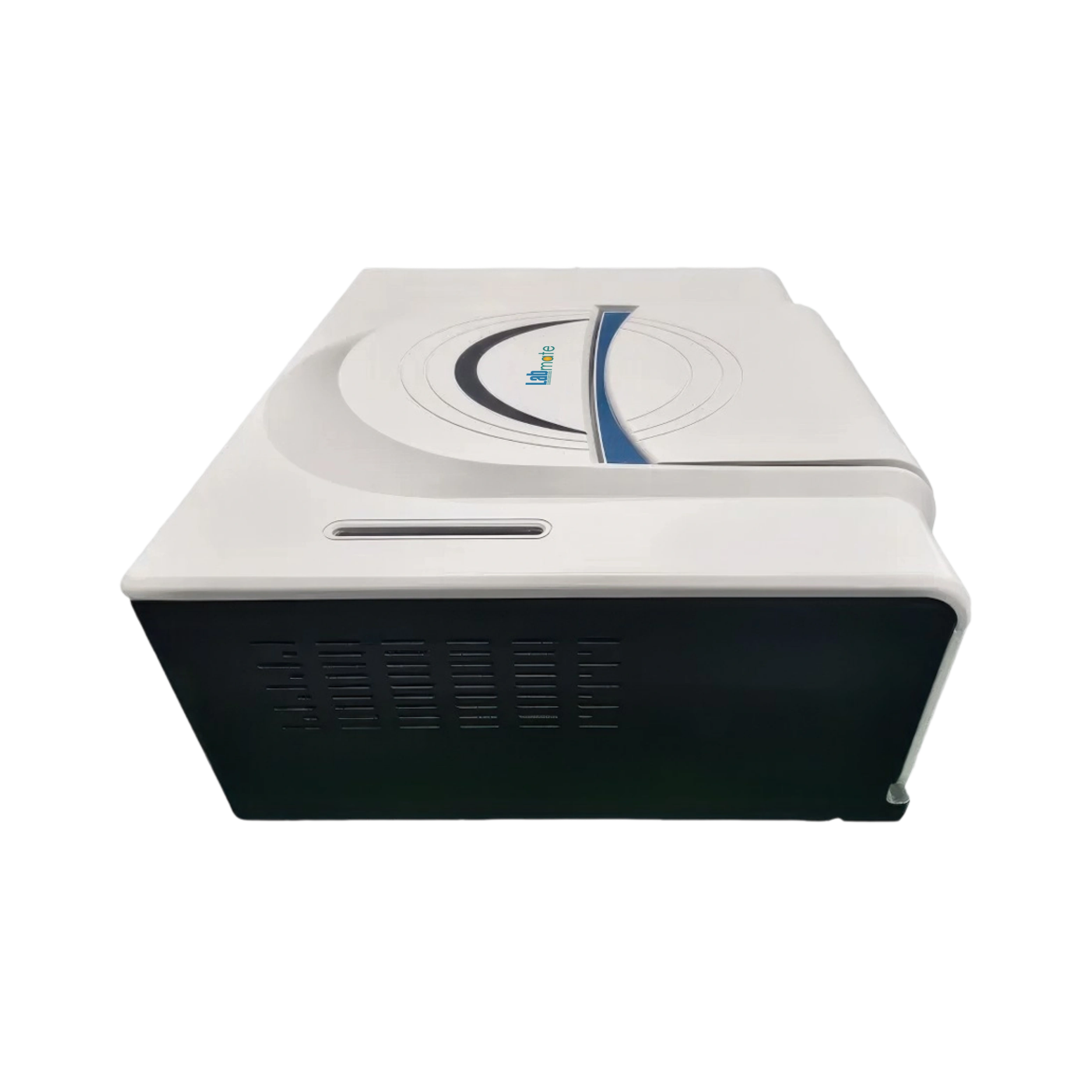

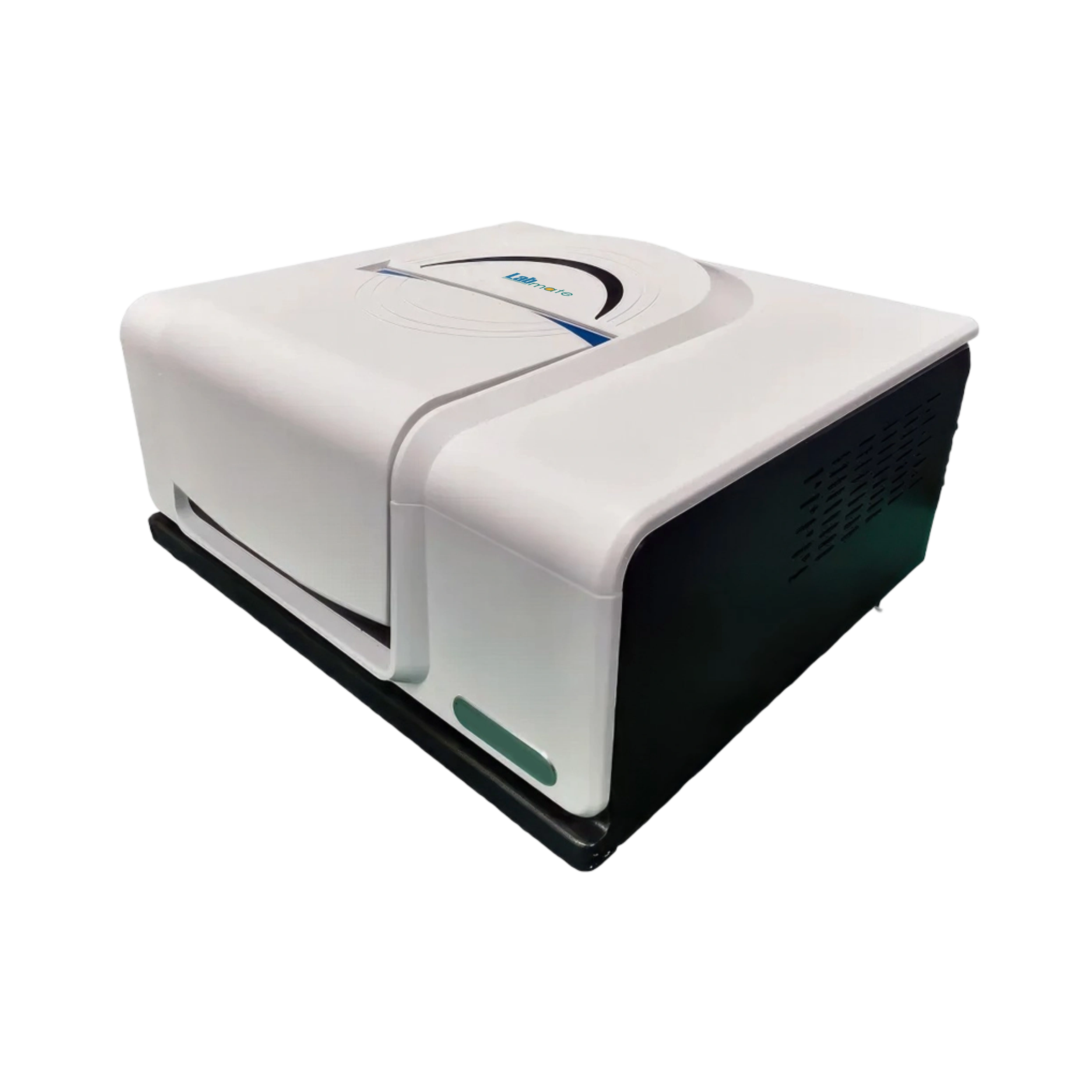

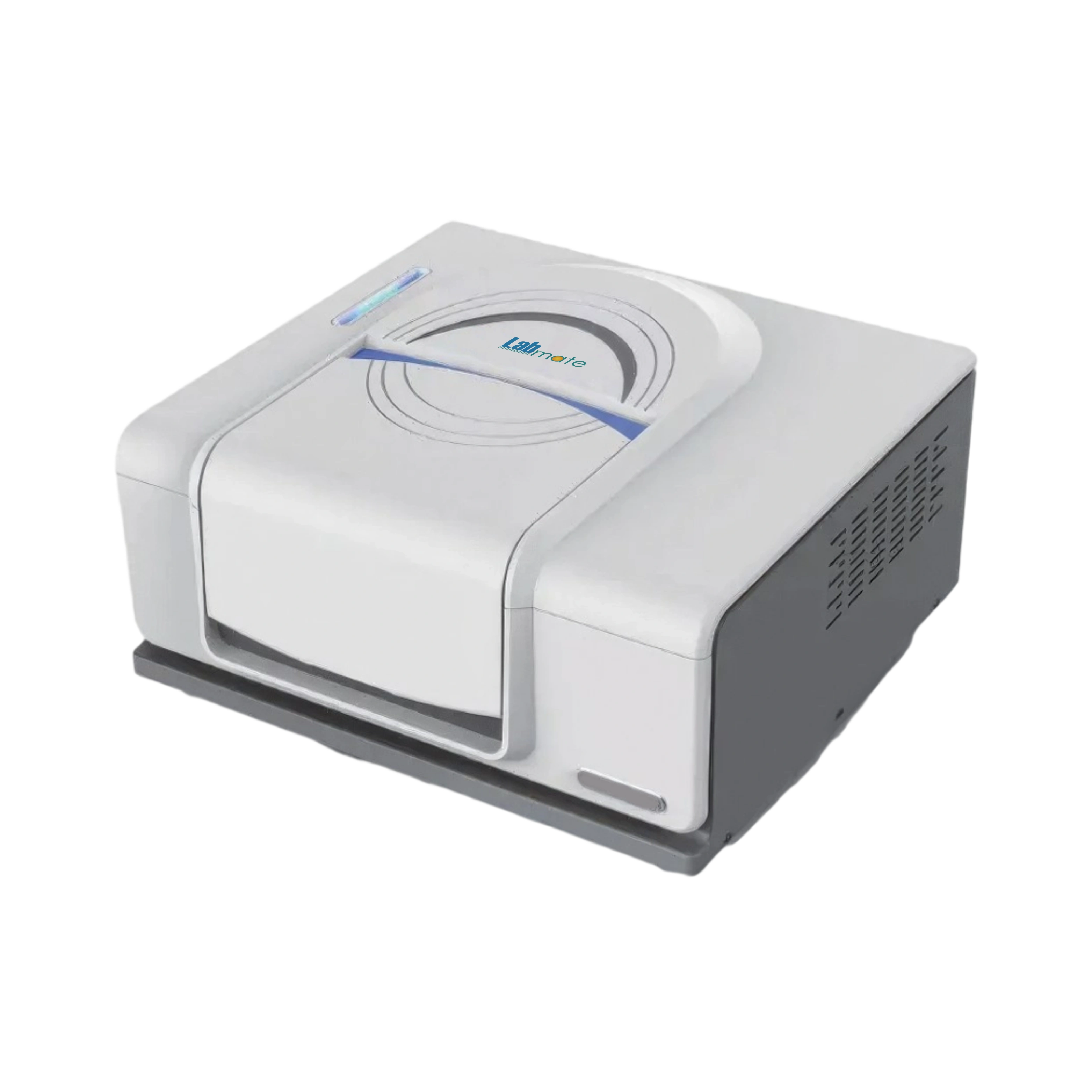

FTIR Spectrometer LMFS-A102 offers a wide spectral range of 7800 cm⁻¹ to 350 cm⁻¹ for comprehensive infrared spectroscopy and chemical analysis. With spectral accuracy of ±0.01 cm⁻¹, this FTIR spectrophotometer precisely identifies chemical components and compounds. Its high sensitivity enables reliable detection of trace substances, while the high-intensity infrared source delivers strong, stable energy for accurate and consistent FTIR analysis.
Specifications
| Spectral Range | 7800 cm⁻¹ to 350 cm⁻¹ |
| Spectral Accuracy | ±0.01 cm⁻¹ |
| Resolution | 0.85 cm⁻¹ |
| Temperature | 10°C to 30°C |
| Humidity | < 60% |
| Interferometer | Cube-corner Michelson interferometer |
| Beam Splitter | Multilayer Ge-coated KBr |
| Detector | DLATGS |
| IR Source | High-intensity, long-lifetime, air-cooled IR source |
| Signal to Noise Ratio | >40,000:1 (RMS at 2100–2200 cm⁻¹, resolution: 4 cm⁻¹, 1 min data collection) |
| Scanning Speed | Microprocessor controlled; selectable speeds |
| Software | MainFTOS Suite software workstation |
| Interface | Ethernet & Wi-Fi wireless |
| Data Output | Standard data format, report generation and output |
| Status Diagnosis | Power-on self-check, real-time temperature and humidity monitoring with reminders |
| Power Supply | AC220V ±22V, 50Hz ±1Hz; AC110V (optional) |
| Dimensions | 490 × 420 × 240 mm |
| Weight | 23.2 Kg |
Pricing
| Product | Price | Unit | Action |
|---|---|---|---|
| FTIR Spectrometer LMFS-A102 | $ 34100 | Each of 1 |
Standard Accessories
Transmission sample holder
Optional Accessories
Single reflection ATR (Diamond crystal)
Similar Products
$ 31962.5 / Each of 1
$ 43750 / Each of 1
Frequently Asked Questions
1 What is a FTIR Spectrometer?
A FTIR Spectrometer is a laboratory apparatus that utilizes infrared radiation to identify and characterize the chemical composition of solid, liquid and gas samples.
2 On what principle is FTIR Spectrometer based upon?
It is based on the interaction between infrared light and the molecular bonds within a sample thereby providing valuable insights into its structural and functional properties.
3 What types of samples can be analyzed using FTIR Spectrometer?
It can analyze wide range of samples including powders, crystals, thin films, solvents, oils and gases.
4 Why is Fourier Transform used in FTIR Spectrometer?
It is used to convert the time-domain data into frequency-domain data (spectrum).
5 What is the difference between FTIR Spectrometer and NMR?
FTIR Spectrometer detects vibrations of chemical bonds in a sample by measuring infrared absorption whereas NMR analyzes the magnetic properties of atomic nuclei.
6 What is meant by signal-to-noise ratio in FTIR Spectrometer?
It refers to the proportion of the signal compared to the background noise.
