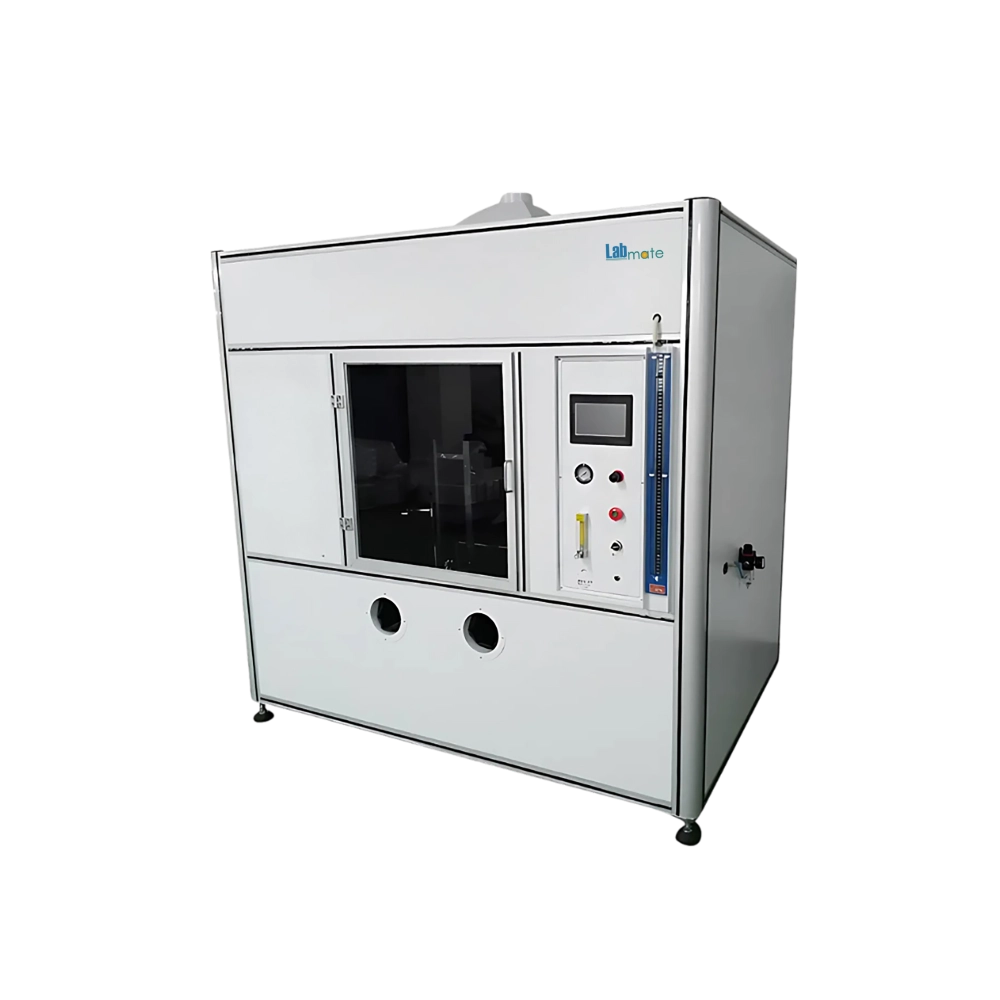

Flammability Tester LMFTR-A100 is a versatile chamber for evaluating the flammability of materials and chemicals with 20 to 200 ml/min gas flow. It supports both horizontal and vertical flame testing and control through an accessible touchscreen panel. Equipped with an explosion-proof halogen lamp light source to ensure safe illumination. Incorporates an exhaust system to support proper operation of the flame chamber. Our Flammability Tester is ideal for the automotive, flammable materials, and electrical industries, supporting research, production, and quality checks.
Catalog Send Mail WhatsappSpecifications
| Control System | LCD touchscreen display |
| Burner Height | 50 mm |
| Flame Angle | 0 to 45° (adjustable) |
| Flame Height | 15 to 175 mm/min (adjustable) |
| Gas Supply | Methane |
| Gas Flowmeter | 20 to 200 ml/min (adjustable) |
| Gas Press | 50 to 200 mm |
| Burn Time | 0 to 99.99s (adjustable) |
| Cabinet Capacity | 0.8 cubic meter with glass watch door |
| Interior Lamp Source | Explosion-proof halogen lamp 40W |
| After Flame Time | 0.1 s to 99.99 s (adjustable) |
| Sample Vertical Moving Distance | 450 mm |
| Sample Horizontal Moving Distance | 180 mm |
| Test Precision | 0.01s |
| Power Supply | AC 220 V, 500 W |
| Internal Dimension (W × D × H) | 1200 × 600 × 1500 mm |
| External Dimension (W × D × H) | 1200 × 600 × 1120 mm |
| Packaging Dimension (W × D × H) | 1240 × 750 × 1600 mm |
| Net Weight | 125 kg |
| Gross Weight | 165 kg |
Pricing
| Product | Price | Unit | Action |
|---|---|---|---|
| Flammability Tester LMFTR-A100 | $ 8250 | Each of 1 |
Features
Outdoor-grade coating
CNC machine compatibility
U-pressure meter gauge
Anodized aluminum clamps
Armored glass window
Chrome transmission mechanism
Applications
Flammability Tester LMFTR-A100 is ideal for the automotive, and electrical industries, supporting research, production, and quality checks. It’s also applied for fire safety tests and flammability assessments in labs and factories.
Selection Guide
Flammability Tester LMFTR-A100 is designed for evaluating the flammability characteristics of materials under controlled conditions. Based on research and application studies, it is commonly used in quality control, textile analysis, automotive interior testing, and material development labs. It supports tests that comply with various international standards for flammability assessment. The system features an intuitive LCD touchscreen control interface, allowing accurate control of flame angle (adjustable from 0° to 45°) and flame height (15 to 175 mm/min), along with a burner height of 50 mm, ensuring reproducibility and accuracy. Its design makes it suitable for experiments requiring customizable flame exposure. Customers should consider this model when their testing application demands standardized flame testing with precise parameter control and reliable certification compliance.
Similar Products
$ 46850 / Pack of 1
$ 6500 / Pack of 1
$ 11750 / Each of 1
Frequently Asked Questions
1 What is a Flammability Tester?
A Flammability Tester is an apparatus designed to measure material performance under fire conditions.
2 What materials can be tested using Flammability Tester?
It is used to test a variety of materials such as textiles, plastics, rubber, insulation materials and coatings.
3 Can Flammability Tester be used to assess the fire resistance of fabrics for protective clothing?
It is used to assess flame resistance, heat protection and the overall durability of fabrics used in protective garments.
4 What is time to Ignition in Flammability Tester?
It refers to the amount of time it takes for a material to catch fire when exposed to an ignition source.
5 What is the role of Flammability Tester in product development?
It helps manufacturers in identifying potential fire hazards in their products early in the design process.
6 What is the difference between a Flammability Tester and a Fire Resistance Tester?
Flammability Tester measures how easily a material ignites when exposed to a flame whereas Fire Resistance Tester evaluates the ability of material to withstand fire exposure.
