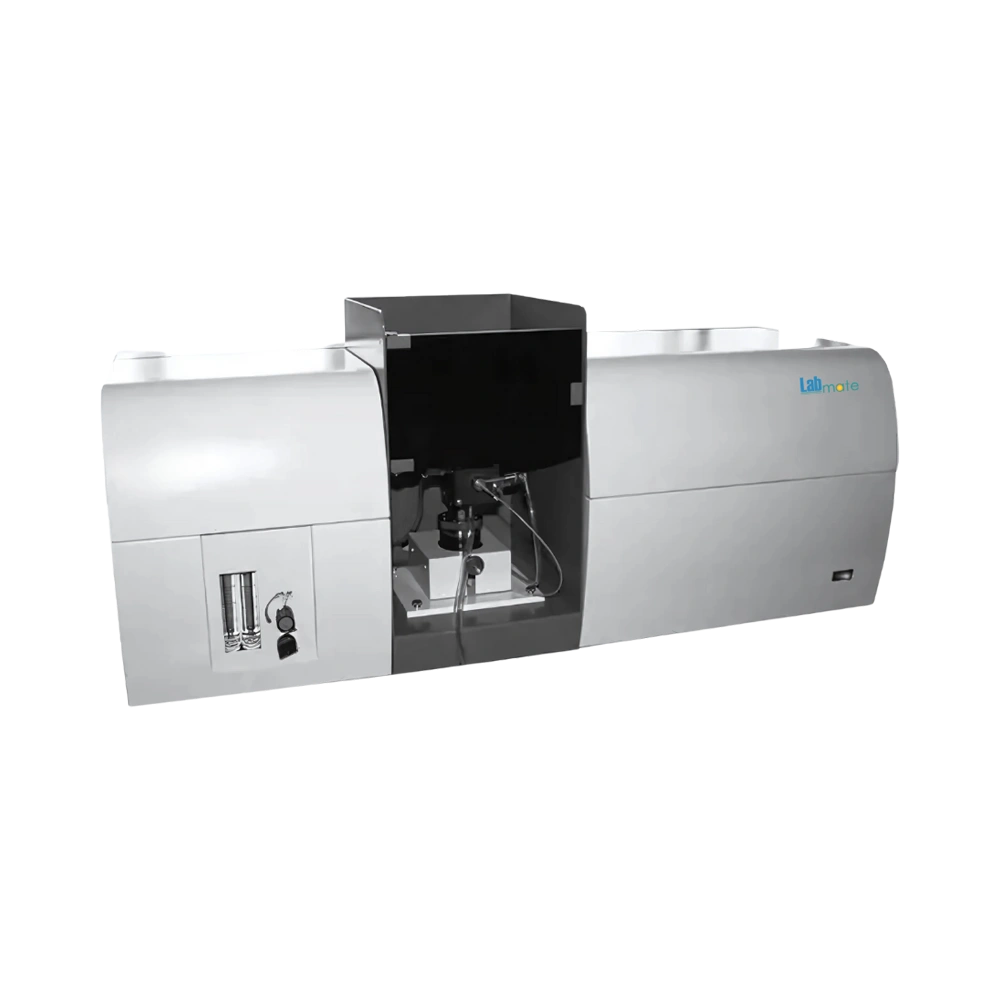

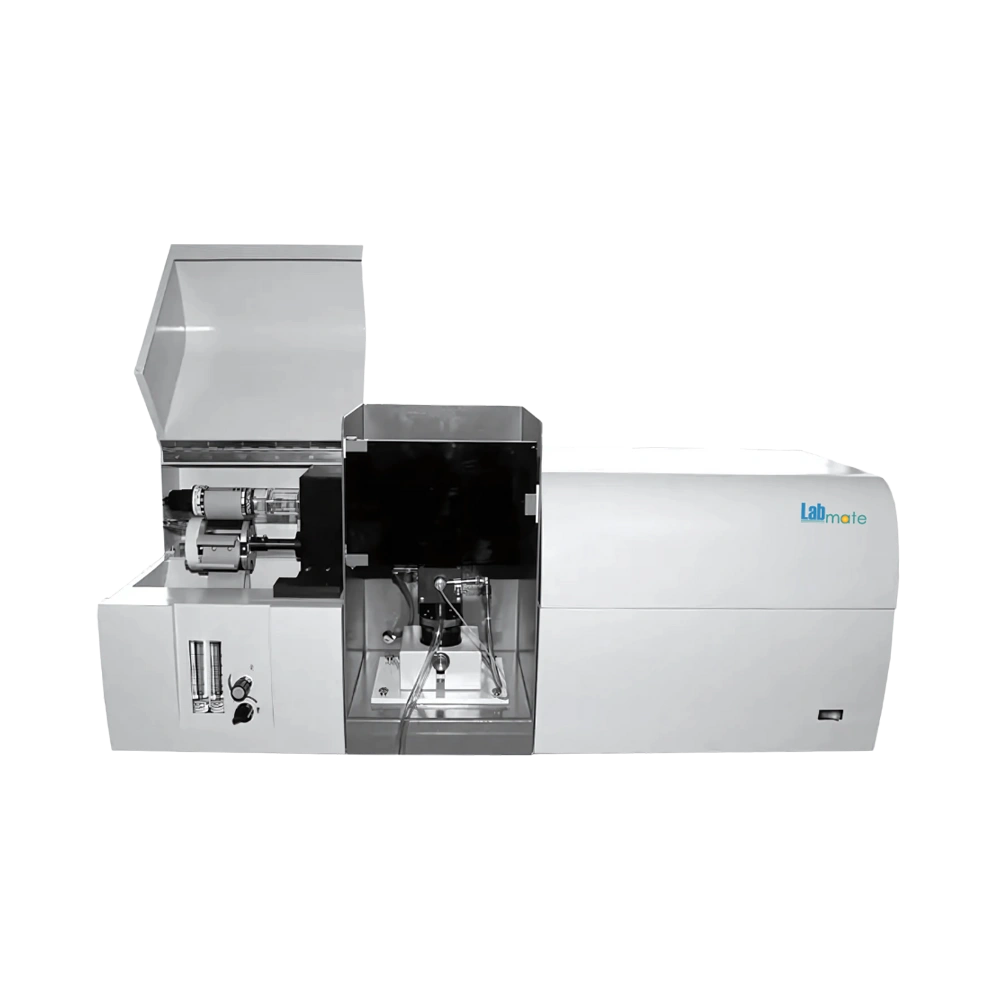

Flame Absorption Spectrophotometer LMFAS-A100

Flame Absorption Spectrophotometer LMFAS-A100 consists of a 100 mm titanium metal burner with an absorbance greater than 0.300 Abs. It includes a photomultiplier detector that responds to specific signals. Our system operates within the 190 to 900nm wavelength range. It incorporates a feature that automatically shuts off in the event of acetylene gas leakage, prioritizing user safety.

Catalog

Specifications

Wavelength Range	190 nm to 900 nm
Wavelength Accuracy	± 0.25 nm
Wavelength Repeatability	0.15 nm
Spectral Bandwidth	0.1 nm0.2 nm1.0 nm2.0 nm
Temperature	15 °C to 30 °C
Humidity	≤ 75 %
Burner	100 mm metallic titanium
Absorbance	> 0.300 Abs
Detector	Photomultiplier
Monochromator	C-T
Optical System	1800 lines / mm
Quality Concentration	3.0 μg / ml
LOQ	(Cu) 0.006 μg / ml
Repeatability	RS D ≤ 1 %
Sprayer	Glass plastic stainless steel
Atomization Chamber	Corrosion resistant
Safety Protection	Turn off alarm for acetylene gas leakage
Measurement Method	Air-acetylene flame / hydride generator
Concentration Calculation	Standard curve automatic matching standard addition
Power Consumption	150 W
Power Supply	AC 220 V / 50 Hz
Dimensions	1000 × 350 × 390 mm
Weight	70 Kg

Pricing

Product	Price	Unit	Action
Flame Absorption Spectrophotometer LMFAS-A100	$10,188.00	Each of 1	Add to cart Buy now

Features

Equipped with a corrosion resistance chamber
Designed with a real-time pressure monitoring system
Featured with automated scanning and peak detection
Provided with stainless steel sprayer
Enhanced automatic setup for flame protection
Improved with C-T monochromator for scanning frequencies

Applications

Mainly used in environmental, clinical, biological analysis, forensic science, water treatment, quality control, petrochemical and agricultural industries
