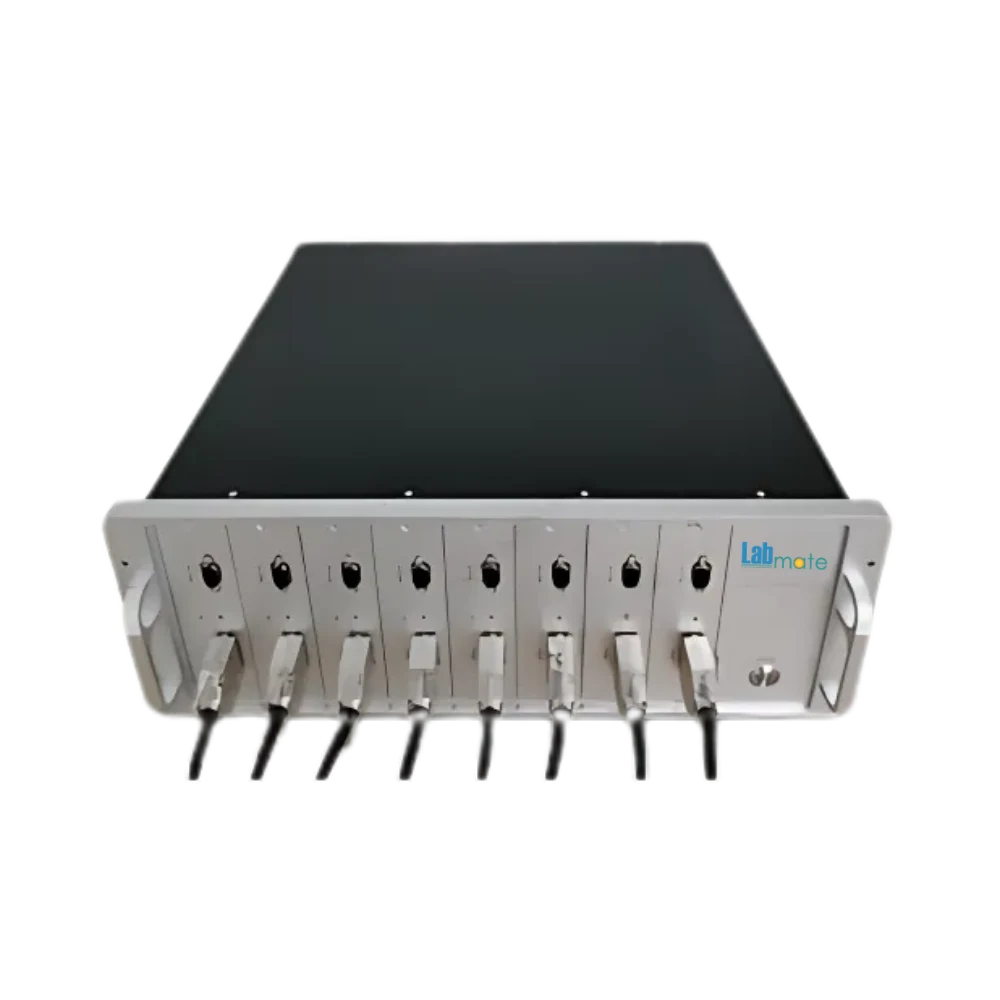

Electrochemical Workstation LMEWP-A200 offers advanced potentiostat/galvanostat tailored for both fundamental and high-level research. Featuring versatile multi-electrode system, it supports wide range of voltammetry techniques, corrosion studies, and battery diagnostics. Integrated with user-friendly CS Studio software ensuring precise control and in-depth analysis. Electrochemical Workstation LMEWP-A200 ideal for multifunctional laboratory workflows demanding reliability, flexibility, and performance.
Specifications
| Electrode System | 2 to 4 electrode systems |
| Potential Control Range | ±10 V |
| Current Control Range | ±2 A |
| Compliance Voltage | ±21 V |
| Potential Control Accuracy | 0.1% × full range ± 1 mV |
| Current Control Accuracy | 0.1% × full range |
| Potential Resolution | 10 μV, 3 μV |
| Current Sensitivity | 1 pA |
| Reference Electrode Input Impedance | 10¹² Ω, 20 pF |
| Current Range | 2 nA to 2 A (10 ranges) |
| Scan Rate (CV, LSV) | 0.001 mV/s to 10,000 V/s |
| Pulse Width (CA, CC) | 0.0001 to 65,000 seconds |
| SWV Frequency | 0.001 to 100 kHz |
| Pulse Width (DPV, NPV) | 0.0001 to 1,000 seconds |
| AD Data Acquisition | 16-bit @ 1 MHz, 20-bit @ 1 kHz |
| DA Resolution | 16-bit |
| Setup Time | 1 μs |
| Minimum Potential Increment (CV) | 0.075 mV |
| IMP Frequency Range | 10 μHz to 1 MHz |
| Low-pass Filters | Covers 8 decades |
| Interface | USB 2.0 |
| Operating System Support | Windows 2000/XP/7/8/10 |
| Stable Polarization | Supported |
| Transient Polarization | Supported |
| Chrono Methods | Supported |
| Voltammetry | Supported (CV, LSV, SCV, SWV, DPV, NPV, DNPV, ACV) |
| Amperometry | Not Supported |
| EIS (Electrochemical Impedance Spectroscopy) | Not Supported |
| Corrosion Testing | Supported |
| Battery Testing | Supported |
| Extensions (Logger, Bulk Electrolysis, etc.) | Supported |
| Net Dimension | 36.5 × 30.5 × 16 cm |
| Gross Dimension | 52.5 × 37.5 × 22.5 cm |
| Net Weight | 6.5 kg |
| Gross Weight | 10 kg |
Pricing
| Product | Price | Unit | Action |
|---|---|---|---|
| Electrochemical Workstation LMEWP-A200 | $ 9450 | Each of 1 |
Features
Well-functioned software
Comprehensive research platform
High input impedance
Digital signal synthesizer
High-power control
Versatile analysis software
Applications
Electrochemical Workstation LMEWP-A200 is well-suited for academic and industrial labs studying fuel cells, electrosynthesis, corrosion inhibition, and photo-electrochemistry. Ideal for mid- to high-level voltammetry, impedance, and charge-discharge analysis.
