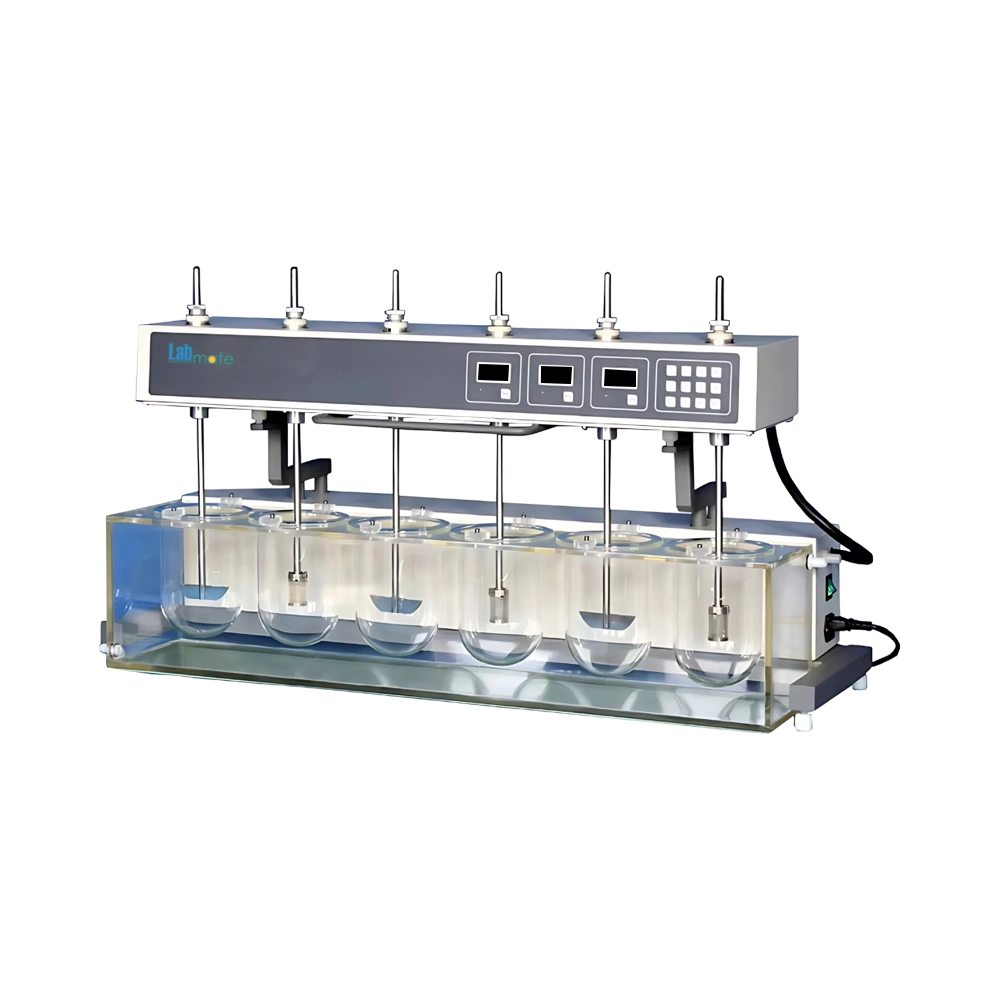

Rotational Cylinder Dissolution Tester LMRDT-A102 features 6 individual vessels with poles arranged in single horizontal row. Equipped with speed range adjustable between 20 to 200 revolutions per minute for versatile testing requirements. Integrated with 9 programmable time points to accommodate detailed interval selection during analytical procedure. Built with magnetic pump-driven water circulation for consistent and uniform heating throughout chamber. Our Dissolution Tester includes stainless paddle and basket for rust prevention and extended operational longevity.
Specifications
| Number Of Vessels | 6 |
| Poles | 6 |
| Number Of Poles | All vessels and poles aligned in a single row |
| Speed Range | 20 to 200 r/min |
| Speed Accuracy | ± 2 r/min |
| Temperature Range | Room temperature to 45°C |
| Temperature Stability | ± 0.3°C |
| Timer | 1 to 999 minutes |
| Preset Timing Points | 9 points |
| Time Accuracy | ± 0.1 minute |
| Paddle Radial Run-Out | ± 0.5 mm |
| Basket Radial Run-Out | ± 1 mm |
| Paddle And Basket Material | Stainless steel |
| Heating System | Magnetic pump-driven circulating water |
| Automation Functions | Auto-set, auto-diagnose, auto-alarm |
| Control System | Microprocessor-based (MPU) Control |
| Head Movement | Manually rotatable |
| Display | LED |
| Power Consumption | 1200 W |
| Power Supply | 220V/50HZ or 110V/60HZ |
| Dimension | 960 × 320 × 480 mm |
| Net Weight | 45 kg |
Pricing
| Product | Price | Unit | Action |
|---|---|---|---|
| Rotational Cylinder Dissolution Tester LMRDT-A102 | $ 8875 | Each of 1 |
Features
MPU-Based Control
Automation Functions
LED Display
Manually Tiltable Head
Energy-Efficient
Applications
Rotational Cylinder Dissolution Tester LMRDT-A102 assists in determining release rate and amount from oral solid dosage forms such as capsules and tablets in specified media during pharmaceutical research.
