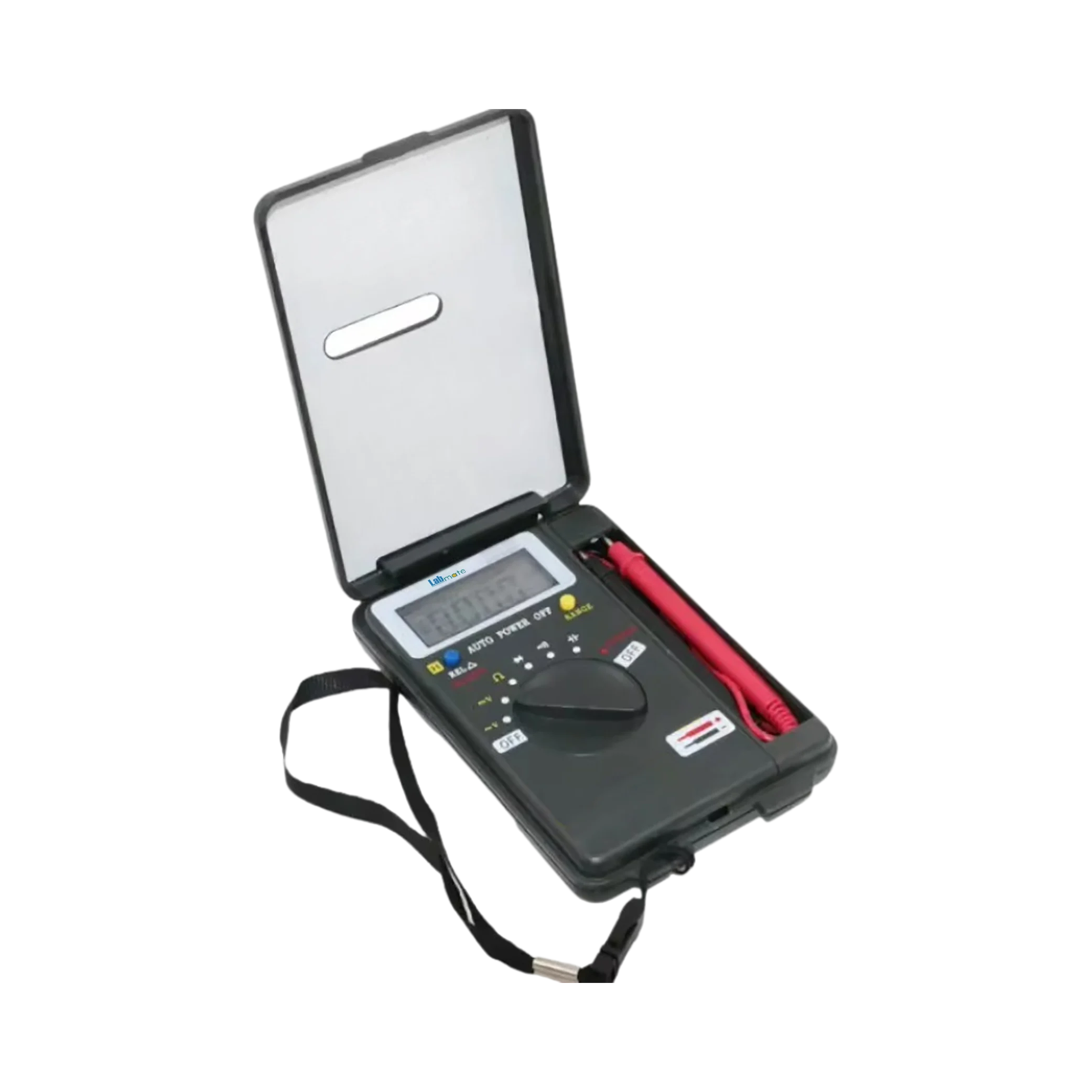

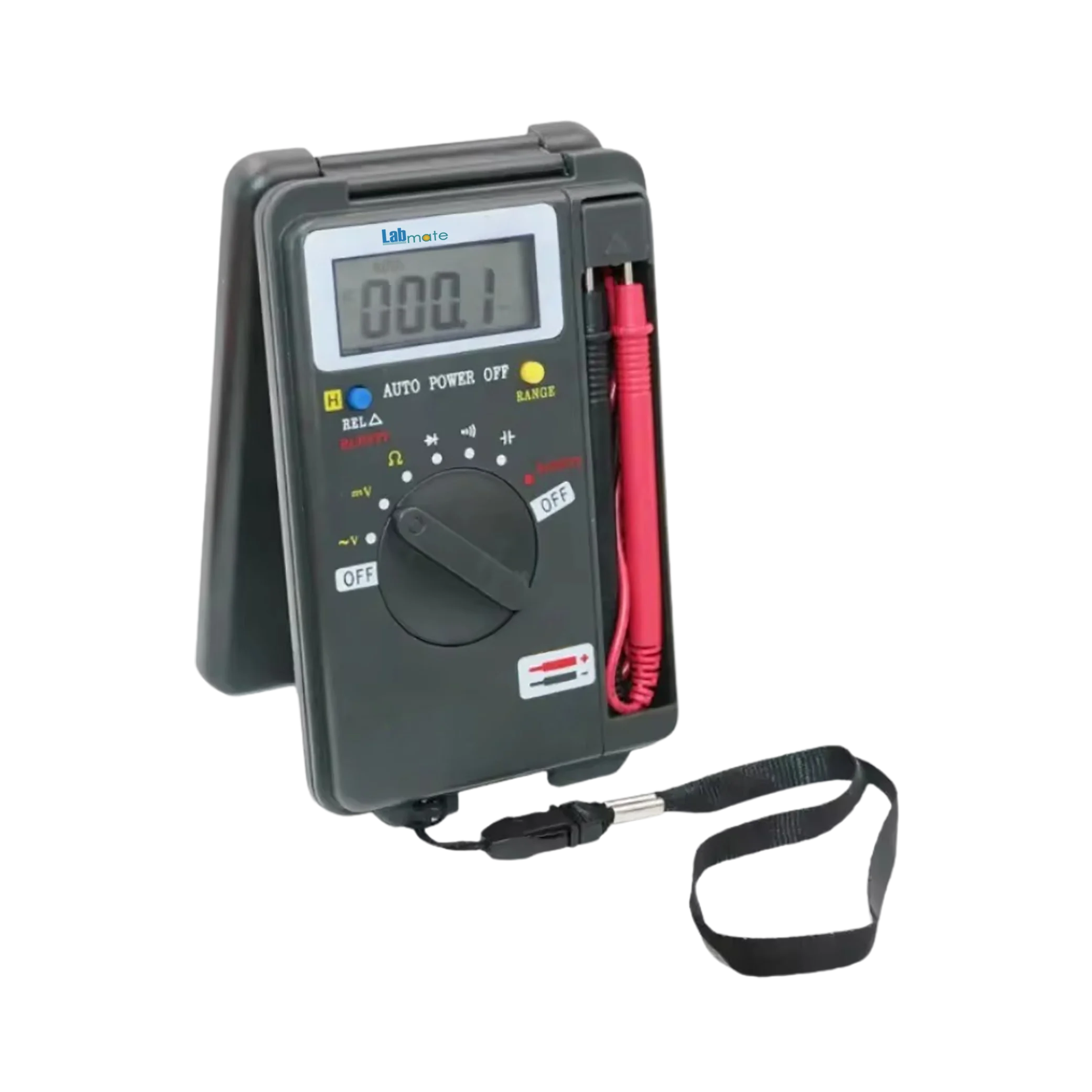

Digital Multimeter LMDMM-A100 features 4000-count LCD. It is battery-powered and ensures true RMS measurement. It measures AC/DC voltage, resistance, capacitance, frequency, and duty cycle. Equipped with diode and continuity testing functions. Our Multimeter is ideal for reliable electrical diagnostics in various settings.
Specifications
| Capacitance Measurement Range | 9.999nF to 9.999mF |
| Capacitance Resolution | 0.001nF to 0.001mF |
| Capacitance Accuracy | ±(2.0%+5) to ±(5.0%+20) |
| Frequency Measurement Range | 99.99Hz to 9.999MHz |
| Frequency Resolution | 0.01Hz to 0.001MHz |
| Frequency Accuracy | ±(0.1%+2) |
| Duty Cycle Measurement Range | 1% to 99% |
| Duty Cycle Resolution | 0.1% |
| Duty Cycle Accuracy | ±(0.1%+2) |
| DC Voltage Measurement Range | 400.0mV to 600V |
| DC Voltage Resolution | 0.1mV to 1V |
| DC Voltage Accuracy | ±(0.5%+4) to ±(0.8%+4) |
| AC Voltage Measurement Range | 400.0mV to 600V |
| AC Voltage Resolution | 0.1mV to 1V |
| AC Voltage Accuracy | ±(1.2%+4) to ±(1.5%+4) |
| Resistance Measurement Range | 400.0Ω to 40MΩ |
| Resistance Resolution | 0.1Ω to 0.01MΩ |
| Resistance Accuracy | ±(0.8%+4) to ±(2.0%+4) |
| Display | 4000-count LCD |
| Ranging | Auto/Manual |
| Material | ABS |
| Update Rate | 3 times per second |
| True RMS | Yes |
| Data Hold | Yes |
| Low Battery Indicator | Yes |
| Auto Power Off | Yes |
| Operating Temperature Range | 0°C to 40°C |
| Operating Humidity | Less than 75% |
| Storage Temperature Range | -20°C to 60°C |
| Storage Humidity | Less than80% |
| Battery Type | 1.5V AAA Battery × 2 |
| Dimension | 150×85×22 mm |
| Net Weight | 124 g |
| Gross Weight | 1.5 Kg |
Pricing
| Product | Price | Unit | Action |
|---|---|---|---|
| Digital Multimeter LMDMM-A100 | $ 10000 | Pack of 100 pcs |
Features
Fast update rate
Compact and portable
Auto-ranging function
Applications
Digital Multimeter LMDMM-A100 is ideal for industrial, laboratory, and household electrical troubleshooting. It measures voltage, resistance, capacitance, and continuity.
Frequently Asked Questions
1 What is a Digital Multimeter?
A Digital Multimeter is an apparatus designed to measure multiple electrical quantities such as voltage, current and resistance using a single instrument.
2 Can Digital Multimeter be used to check for an electrical short circuit?
Its continuity test function can be used to check for a short circuit.
3 Can Digital Multimeter be used to test motors or appliances?
It is used to check electrical components like motors and appliances.
4 What is Auto hold feature in case of Digital Multimeter?
The Auto hold feature automatically locks the measurement reading on the display after a few seconds of steady measurement.
5 What is Peak measurement function in Digital Multimeter?
The Peak function is used to capture the highest or lowest point of a fluctuating signal.
6 Can Digital Multimeter be used to measure the frequency of power line?
It is used to measure the frequency of power line.
7 Can Digital Multimeter be used to measure ground loop voltages?
It is used to measure ground loop voltages.
8 Can Digital Multimeter be used to detect a faulty ground connection?
It can detect faulty ground connection.
9 What does Overload protection mean in case of Digital Multimeter?
Overload protection refers to the ability of Digital Multimeter to handle high voltage or current without damage.
10 What is Frequency function in case of Digital Multimeter?
The Frequency function is used to measure the frequency of an alternating signal.
