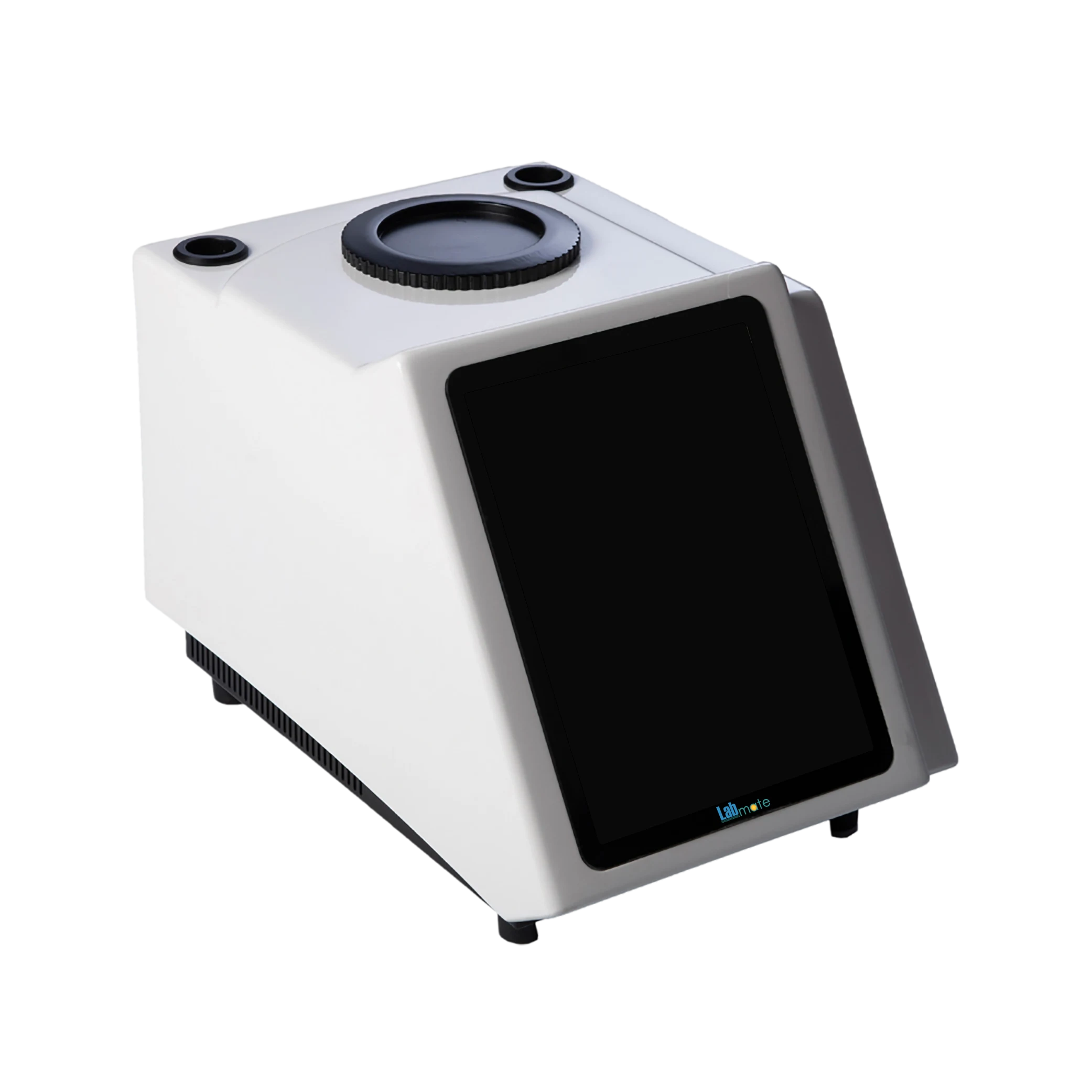

Digital Melting Point Apparatus LMDMA-A100 analyzes up to 4 samples per batch for simultaneous testing. It offers a wide thermal intensity range from ambient room temperature to 360℃. Integrated with 10.4-inch TFT color display, allowing effortless interaction and real-time monitoring. Equipped with 9x magnification, facilitating detailed observation for enhanced visibility during phase assessment. Our Digital Melting Point Apparatus supports versatile data export options, including PDF and EXCEL formats for comprehensive documentation.
Specifications
| Temperature Range | Room Temperature to 360℃ |
| Detection Method | Fully automatic (compatible with manual) |
| Processing Capacity | 4 samples per batch |
| Test Mode | Melting point |
| Temperature Resolution | 0.01℃ |
| Heating Rate | 0.1℃ to 20℃ (200 gears, stepless adjustable) |
| Temperature Control Mode | PID temperature control with a fully enclosed furnace body |
| Accuracy | ±0.3℃ /±0.5℃ (Less than 250℃) |
| Repeatability | ±0.1℃ at a heating rate of 0.1℃/min |
| Magnification | 9x |
| Display Method | 10.4-inch TFT color touchscreen |
| Data Storage | 32GB |
| Map Save | 200 groups |
| Map | Any zoom |
| User Management | Multi-level access (4 levels) |
| Audit Trails | YES |
| Electronic Signature | YES |
| Custom Method Libraries | YES |
| Export File Verification Advanced Protection MD5 | YES |
| Printing Method | WIFI serial port |
| Export File Formats | PDF and EXCEL |
| Data Interface | USB, RS232, SD-WiFi, RJ45, U disk |
| Small Capillary Tube Size | Outer diameter: 1.3mm, Inner diameter: 1.1mm |
| Dimension | 400×280×330 mm |
| Power Consumption | 120W |
| Power Supply | 110 to 230V, 50/60Hz |
| Weight | 4.1kg |
Pricing
| Product | Price | Unit | Action |
|---|---|---|---|
| Digital Melting Point Apparatus LMDMA-A100 | $ 6250 | Each of 1 |
Features
Ample 32GB Memory
Adjustable Zooming Functionality
Multi-Level Access Control
WiFi Serial Port Printing
Compact and Lightweight Design
Optimized Power Consumption
Capillary Tubes Compatibility
Applications
Digital Melting Point Apparatus LMDMA-A100 analyzes melting properties of organic and inorganic substances in chemical studies and evaluates ingredient composition and thermal stability in food and beverage testing.
Selection Guide
Digital Melting Point Apparatus LMDMA-A100 is best suited for laboratories and research facilities focused on accurate thermal analysis. It is commonly used in pharmaceuticals, organic chemistry, and material science for determining the purity and identity of compounds through their melting points. This model is particularly ideal for quality control testing, research experiments, and educational demonstrations that require accurate and repeatable results. With a temperature range that typically extends from room temperature up to 360°C, and a high-resolution digital display (0.1°C or better), the device ensures reliable data. Its semi-automatic or fully digital detection method supports both convenience and accuracy, while the processing capacity of 4 samples per batch allows for efficient throughput. It may also come with compliance to standards such as GMP, GLP, and ISO certifications, making it suitable for regulated lab environments. When selecting this model, customers should consider the temperature resolution, detection mode, and regulatory requirements to ensure it aligns with their experimental protocols and compliance needs.
Frequently Asked Questions
1 What is a Digital Melting Point Apparatus?
A Digital Melting Point Apparatus is an apparatus designed to accurately determine the melting point of substances by digitally recording the temperature at which a solid becomes a liquid.
2 How does a Digital Melting Point Apparatus work?
It works by gradually heating a sample while a sensor and display monitor the temperature at which the sample melts.
3 How is Digital Melting Point Apparatus used in pharmaceutical quality control?
It is used in pharmaceutical quality control to verify the purity of active pharmaceutical ingredients by comparing observed melting points with reference standards.
4 Can Digital Melting Point Apparatus help detect impurities in chemical compounds?
It can detect impurities because they typically lower and broaden the melting point range of a substance compared to its pure form.
5 How is Digital Melting Point Apparatus used in food testing laboratories?
It is used in food testing labs to determine the melting points of fats, oils, and other temperature-sensitive ingredients important for texture and shelf life.
6 Can Digital Melting Point Apparatus be used in environmental testing?
It is used in environmental testing to analyze organic pollutants and identify unknown residues based on their melting behavior.
7 How does Digital Melting Point Apparatus enhance reproducibility in lab testing?
It enhances reproducibility in lab testing through precise digital temperature control and consistent sample heating rates.
8 Can Digital Melting Point Apparatus be used in textile and dye manufacturing?
It is used in textile and dye manufacturing to characterize and quality-check synthetic dyes and organic pigments based on their melting profiles.
9 How does Digital Melting Point Apparatus contribute to forensic drug testing?
It contributes to forensic drug testing by verifying the melting point of unknown substances compared to known drug standards.
10 Can Digital Melting Point Apparatus be used for diagnostic reagent testing?
It is used to verify the consistency and purity of solid diagnostic reagents by measuring their melting points.
