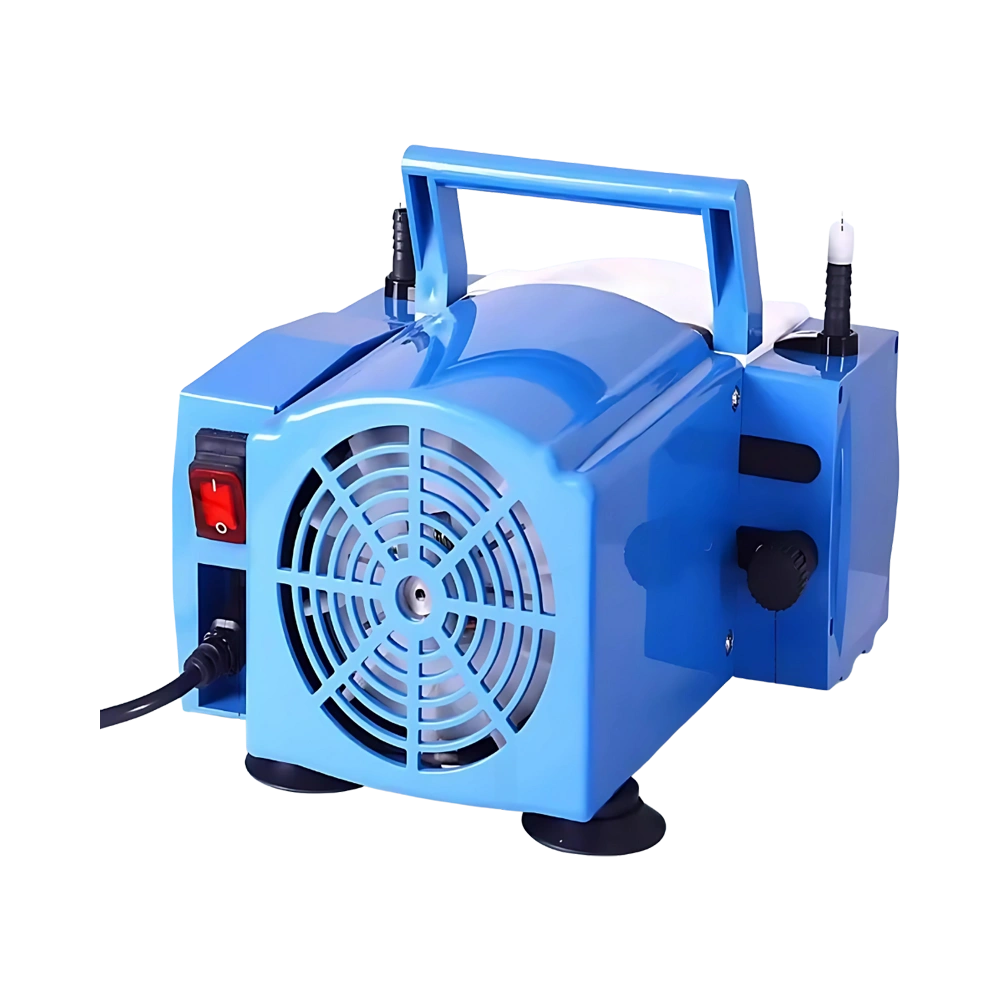

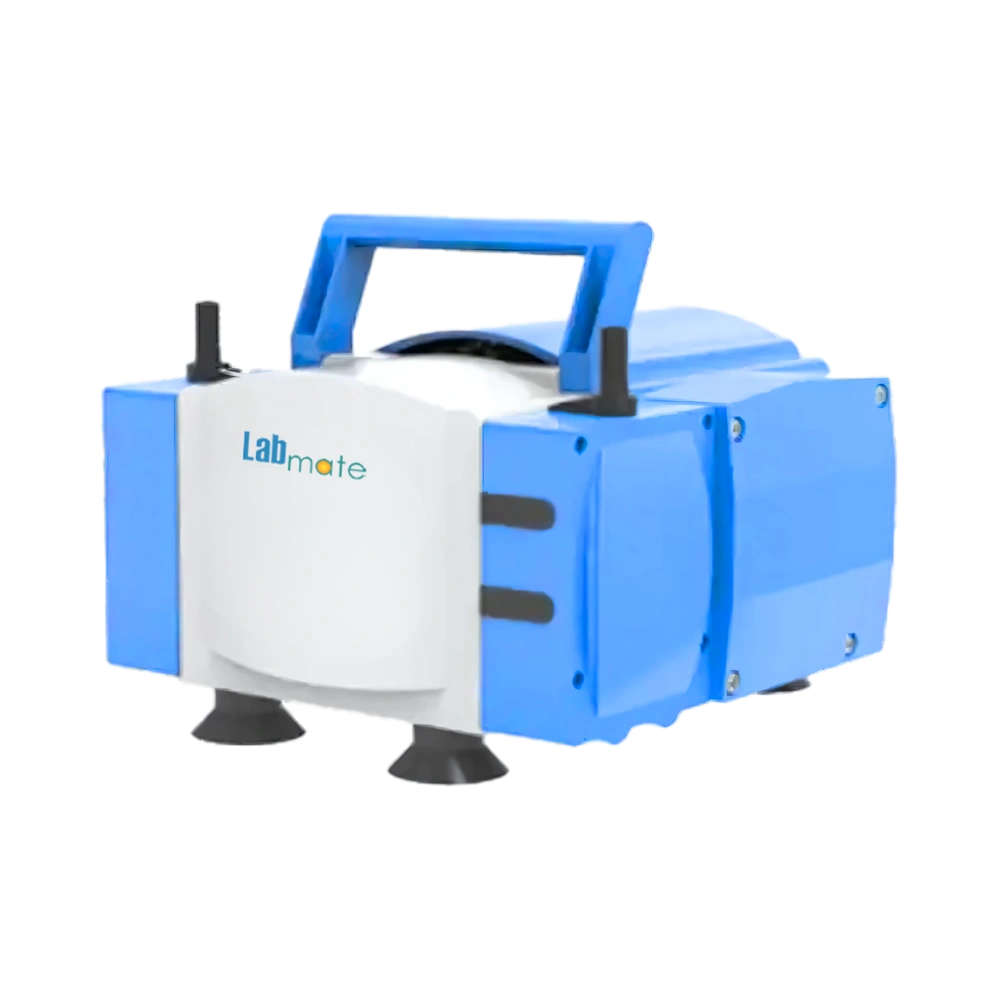

Diaphragm Vacuum Pump LMVU-A200 is designed with pumping rate of 33 L/min. It features excellent corrosion resistance with all contact parts crafted from durable materials. Incorporates effective heat control, keeping surface temperature below 50℃ during continuous operation. Equipped with functional gas ballast, it improves vapor handling and prevents condensation buildup. Our Vacuum Pump is ideal for filtration, aspiration, and vacuum packaging.
Catalog Send Mail WhatsappSpecifications
| Maximum Pumping Rate | 33L/min |
| Maximum Vacuum Degree | 600Pa |
| Pressure | 6mbar |
| Gas Ballast | Yes |
| Protection Grade of Shell | IP20 |
| Pollution Grade | 2 |
| Valve Plate Material | FFKM |
| Diaphragm Material | PTFE+FKM |
| Gas Pipe Material | FEP |
| Pumping Connector Material | PTFE+C |
| Gas Ballast Material | FKM/PTFE+C |
| Air Chamber Material | ETFE |
| Ambient Temperature | 5 to35℃ |
| Relative Humidity | Less than or equal to 70% |
| Air Inlet | 7mm |
| Air Outlet | 7mm |
| Air Inlet/Outlet Connection Hose | 12×8mm |
| Power Consumption | 200W |
| Power Supply | 220 to 240V,50Hz |
| Exterior Dimensions | 270×250×210 mm |
| Packing Dimension | 325×305×250 mm |
| Net Weight | 9.5 Kg |
| Gross Weight | 10 Kg |
Features
Compact and lightweight

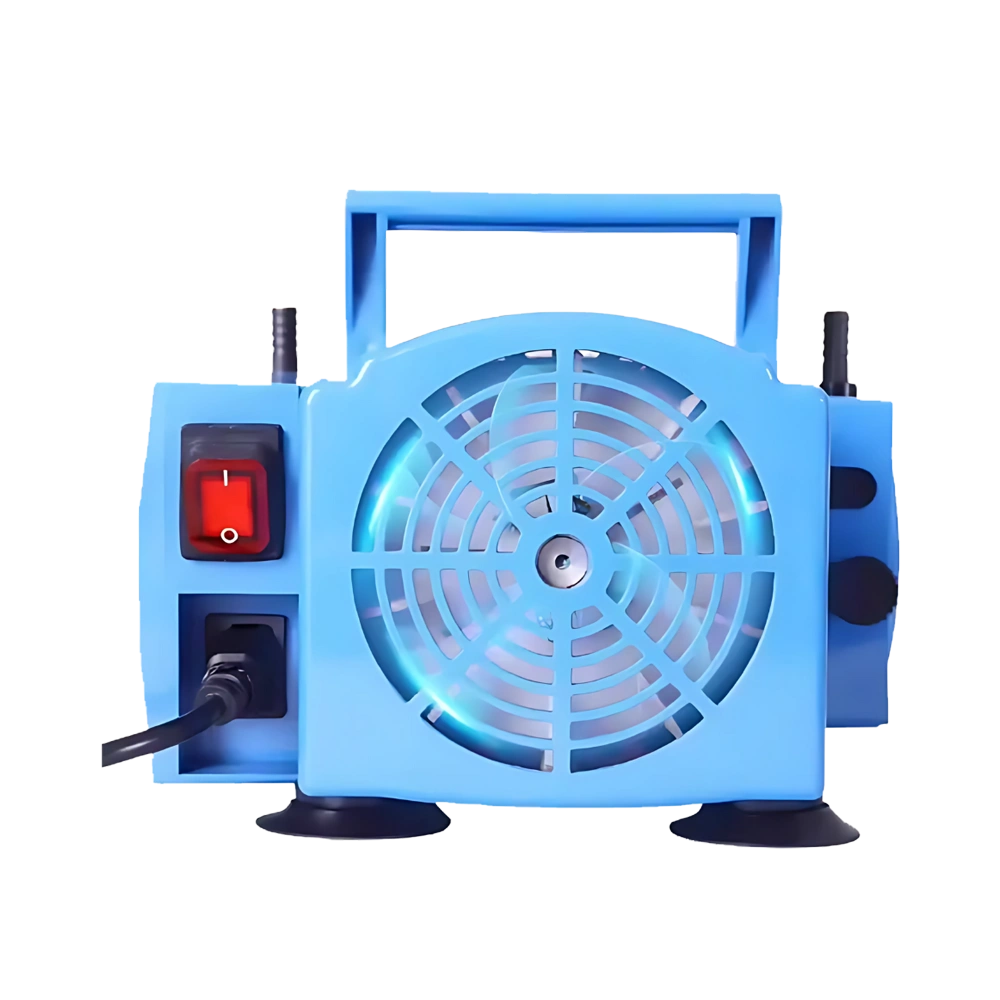

Power switch
Ventilation window
Air inlet/outlet
Applications
Diaphragm Vacuum Pump LMVU-A200 ensures oil-free vacuum generation, ideal for medical, laboratory, and industrial settings, supporting processes like filtration, aspiration, and vacuum packaging efficiently.
Similar Products
Frequently Asked Questions
1 What is a Diaphragm Vacuum Pump?
A Diaphragm Vacuum Pump is a type of positive displacement pump that uses a diaphragm and valves to move air or gas, creating a vacuum.
2 How does Diaphragm Vacuum Pump work?
It works by the back-and-forth motion of a flexible diaphragm, which alternately increases and decreases the volume inside a chamber to draw in and expel gases.
3 Can Diaphragm Vacuum Pump be used for laboratory filtration?
It is ideal for lab filtration processes such as vacuum filtration, solid-phase extraction, and rotary evaporation due to its oil-free and low-maintenance operation.
4 Is Diaphragm Vacuum Pump used in pharmaceutical production?
It is used in pharmaceutical labs for applications like filtration, drying, and evaporation.
5 Can Diaphragm Vacuum Pump be used for environmental monitoring stations?
It is frequently integrated into environmental stations for continuous air sampling and gas analysis in the field.
6 Is Diaphragm Vacuum Pump used in chemical synthesis labs?
It is commonly used in synthesis for vacuum distillation, filtration, and evaporation of solvents and reaction mixtures.
7 Is Diaphragm Vacuum Pump useful for air quality monitoring stations?
It is commonly used to draw air through filters or gas sensors in ambient air monitoring systems.
8 Is Diaphragm Vacuum Pump applicable in nuclear or radiological labs?
It is used in nuclear and radiochemistry labs for safe gas handling.
9 Is Diaphragm Vacuum Pump suitable for use in forensic analysis labs?
It is used in applications like sample extraction, VOC analysis, and portable field kits for crime scene investigation.
10 Can Diaphragm Vacuum Pump be used in vacuum-assisted wound therapy devices?
It is employed in portable medical vacuum therapy devices to provide gentle, contamination-free suction.
