Overview

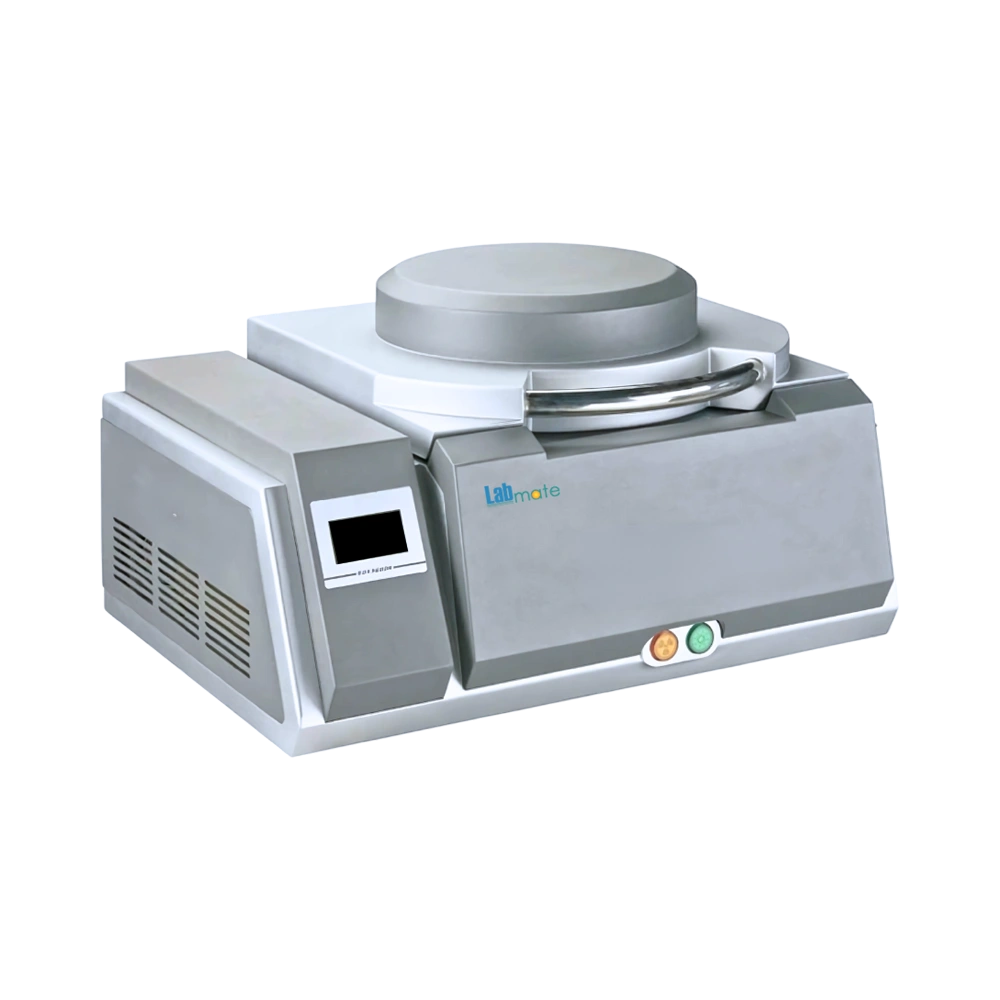

XRF Alloy Analyzer LMAA-A100 is an XRF spectrometer that examines an extensive array of elements from sodium to uranium with an analytical range of ppm to 99.99 %. Upgraded with an LCD and a high-resolution CMOS camera to provide a user-friendly interface. It provides an ambient temperature of 15˚C to 30˚C for proper and accurate analysis. Equipped with a triple safety protection system, which prioritizes operator and machinery safety during operations.
Features :
Incorporates a collimator and filter
Provides a triple safety protection mechanism
Features functions for both qualitative and quantitative testing
Designed with a vacuum degree gauge and a 2-liter vacuum pump
Features a super-thin X-ray light tube designed for optimal efficiency
Integrated with a Signal-to-Noise Enhancer (SNE)
Specifications :
| Measurable Elements | Sodium To Uranium |
| Ambient Temperature | 15˚C To 30˚C |
| Analytical Range | Ppm To 99.99 % |
| Precision | Up To 0.05% |
| Energy Resolution | 140±5ev |
| Ambient Humidity | 35 To 70 % |
| Sample Chamber Size | 320 × 100 Mm |
| X-Ray Tube Current | 50 Ua To 1000 Ua |
| X-Ray Tube Voltage | 5 Kv To 50 Kv |
| Power Consumption | 200 W |
| Power Supply | AC 220V ± 5V Or AC 110V ± 5V |
| Dimension | 660 × 510 × 350 Mm |
| Weight | 65 Kg |
Applications :
It is used in the petrochemical industry, thermal power plant, nuclear power plant, hydroelectric power plant, metals, and mining industries for alloy grade identification and analysis.
