Overview

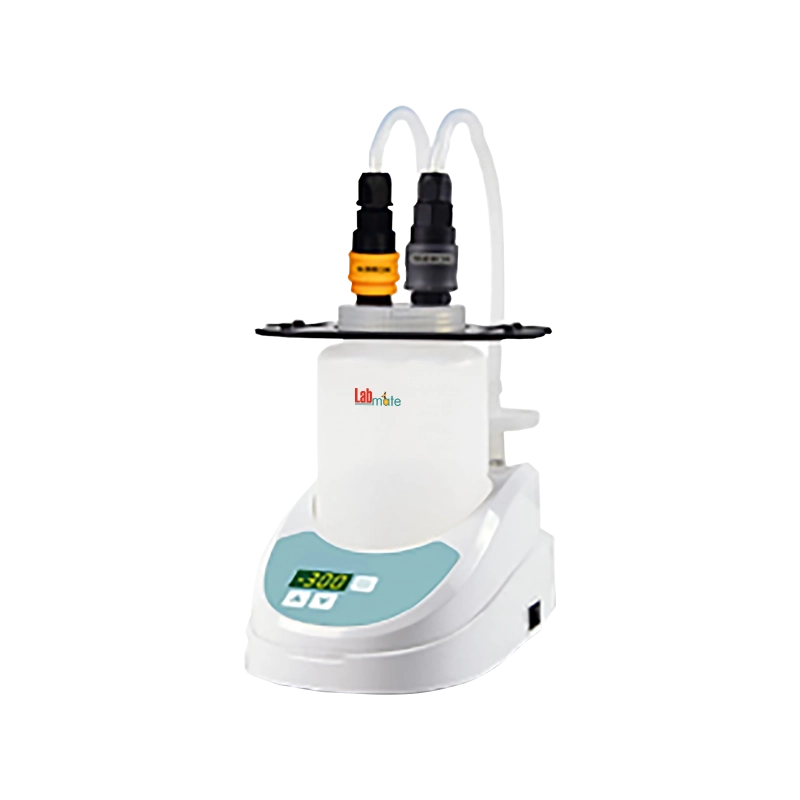

Liquid Suction Filtration Vacuum Pump LMVU-A301 is a digital display vacuum aspiration equipment primarily used for the separation of culture fluid and culture tissue following biochemical culture. It offers maximum flow rate of 8 L/min, with a waste liquid bottle capacity of 1000 ml. Designed with sealed waste liquid bottle cap, quick insertion sealing joint, convenient to get out of the fuselage bottle and clean up waste liquid. It is designed with a PTFE dish-shaped filter between the bottle and the pump that protects the environment from harmful gas pollution.
Features :
Equipped with pumping filter brackets on both sides, easy storage, and selection of suction filter accessories
Sealed waste liquid bottle cap design, quick insertion sealing joint, easy removal of waste liquid from fuselage bottle
To fulfil more experimental requirements, there are two control modes: normally open and foot switch
Autoclave sterilization can be accomplished using a waste liquid container, suction filter fittings, and a dish filter
To prevent the waste liquid bottle from overflowing, there is a liquid level protection switch
It has a self-locking fast connector that can be readily detached from the pipeline, which is useful for safely cleaning the waste bottle
Multi-function suction filter handle and five different types of suction head
Built-in high-quality oil-free vacuum pump, long service life with no maintenance
Designed with self-locking quick connector quickly and easily separated from the pipeline
Specifications :
| Maximum flow rate | 8 L/ min |
| Vacuum degree | -0.06Mpa |
| Vacuum display mode | Digital display |
| Negative pressure adjustment range | 0 to -600 mbar |
| Waste liquid bottle capacity | 1000 ml |
| Foot switch | NA |
| Power consumption | 8 W |
| Power supply | DC 24 V 0.8 A |
| Fuse | NA |
| Dimension (W×D×H) | 130 × 288 × 300 mm |
| Net weight | 1.4 kg |
Standard Accessories :
| Model no | Accessories name | Material | Quantity |
| ZK-A | Hand-held operator | POM | 1 |
| ZK-B | Eight-channel retractable tip plastic extraction head | POM | 1 |
| ZK-C | Eight channel stainless steel extraction head | POM+SUS304 | 1 |
| ZK-D | Single channel plastic extraction head | POM | 1 |
| ZK-E | Single channel retractable tip plastic extraction head | POM | 1 |
| ZK-F | Single channel stainless steel extraction head | POM+SUS304 | 1 |
| ZK-G | Foot switch (For ZK-26E/35/42 use only) | Al | 1 |
Optional Accessories :
| Model no | Accessories Name |
| ZK-26 | Suction head |
Applications :
It is widely used for the separation of culture fluid and culture tissue after biochemical culture, the extraction of cell culture waste liquid, and the suction of various waste liquids in the laboratory
