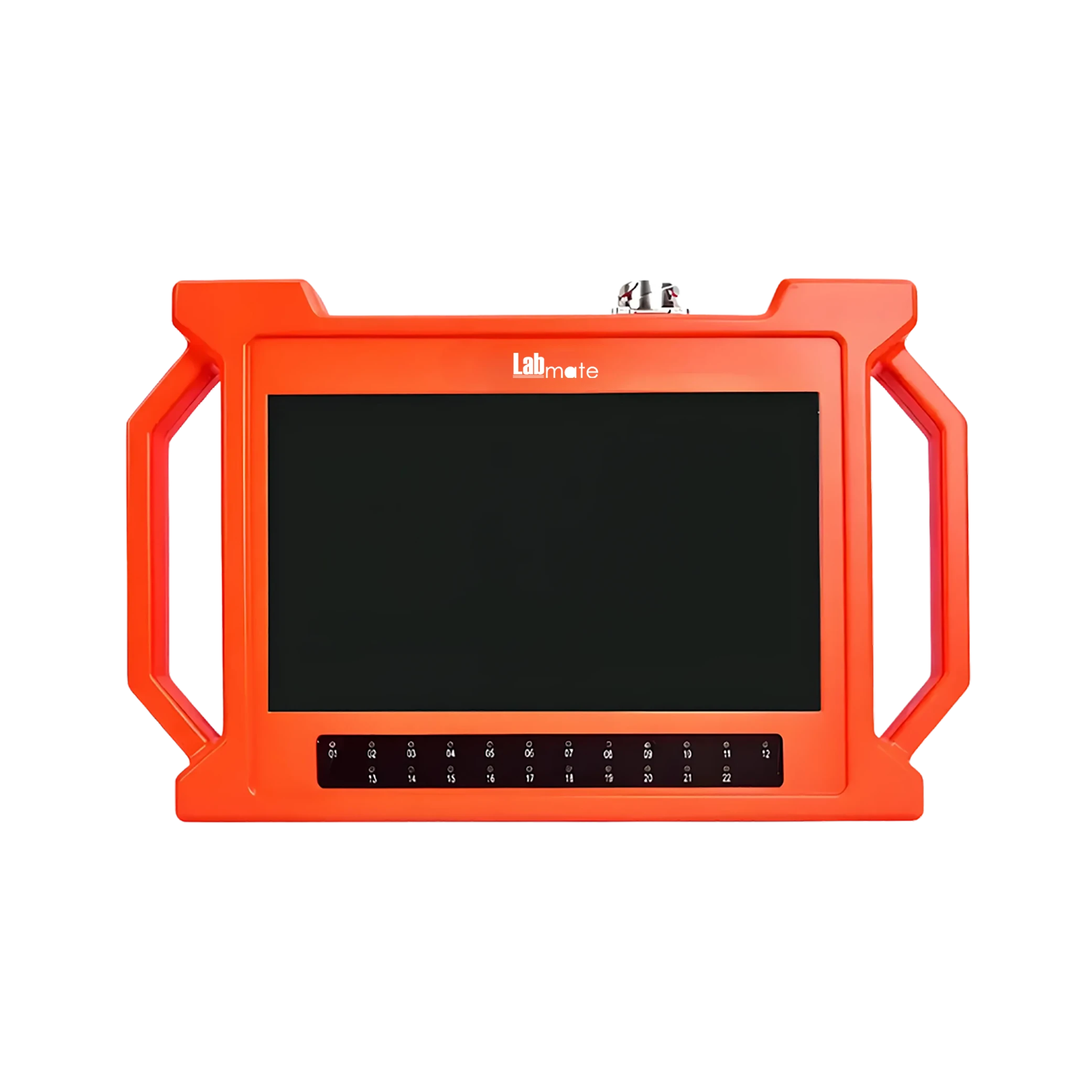

Underground Water Detector LMUWD-A101 Catalog

Overview

Underground Water Detector LMUWD-A101 delivers a depth detection range from 500 to 1000 m. It features a measuring time of 2 to 15 minutes with a standby time of up to 8 hours. Integrated with a 32-bit high-speed CPU controller for fast, reliable performance. Our Underground Water Detector has a supplementary measurement function, which is convenient for analyzing the extension of the geological structure.

Features :

Automatic data acquisition and analysis
Automatic mapping and 3D rendering
High accuracy field frequency detection
Portable design with built-in batteries
User-friendly display interface

Specifications :

Optional Depth Range	500 m to 1000 m
Measuring Time	2 to 15 min
Maximum No. Of Channels	18 Channels
Minimum Resolution	0.001 mv
Point Selections	1 to 18 points
Standby Time	8 hrs
Electrode	22 Electrodes
Controller	32 Bit high-speed CPU
Cable	2.5m point pitch
Dimension	350 × 220 × 75 mm
Packaging Dimension	520 × 220 × 320 mm
Net Weight	2.1 kg
Gross Weight	20.5 kg

Standard Accessories :

Data cable
Power adapter
Tool bag
Sub-line clamps × 22
Electrode rods × 22
Strap
Built-in batteries
Universal conversion plug
