Labmate Thin Film Distillation Column offer wide capacity range from 0.5 to 15 liters. They ensure corrosion prevention, chemical resistance, and durability with quality material. Their compact design allows continuous feeding with minimal space, handling high-boiling materials while enhancing product purity. These operate under high vacuum, lowering temperatures to protect heat-sensitive substances. Our Distillation Column concentrates, purifies, and recovers solvents in diverse industries.
Thin Film Distillation Column LMTFD-A100 Catalog
| Capacity | 0.5 L |
| Working Temperature | Less than or equal to 300°C |
| Pressure | Less than or equal to 1 mbar |
| Rotation Speed Range | 50 to 500 rpm |
| Condenser Area | 0.2 m² |
Thin Film Distillation Column LMTFD-A101 Catalog
| Capacity | 1 L |
| Working Temperature | Less than or equal to 300°C |
| Pressure | Less than or equal to 1 mbar |
| Rotation Speed Range | 50 to 500 rpm |
| Condenser Area | 0.25 m² |
Thin Film Distillation Column LMTFD-A102 Catalog
| Capacity | 1 L |
| Working Temperature | Less than or equal to 300°C |
| Pressure | Less than or equal to 1 mbar |
| Rotation Speed Range | 50 to 500 rpm |
| Condenser Area | 0.3 m² |

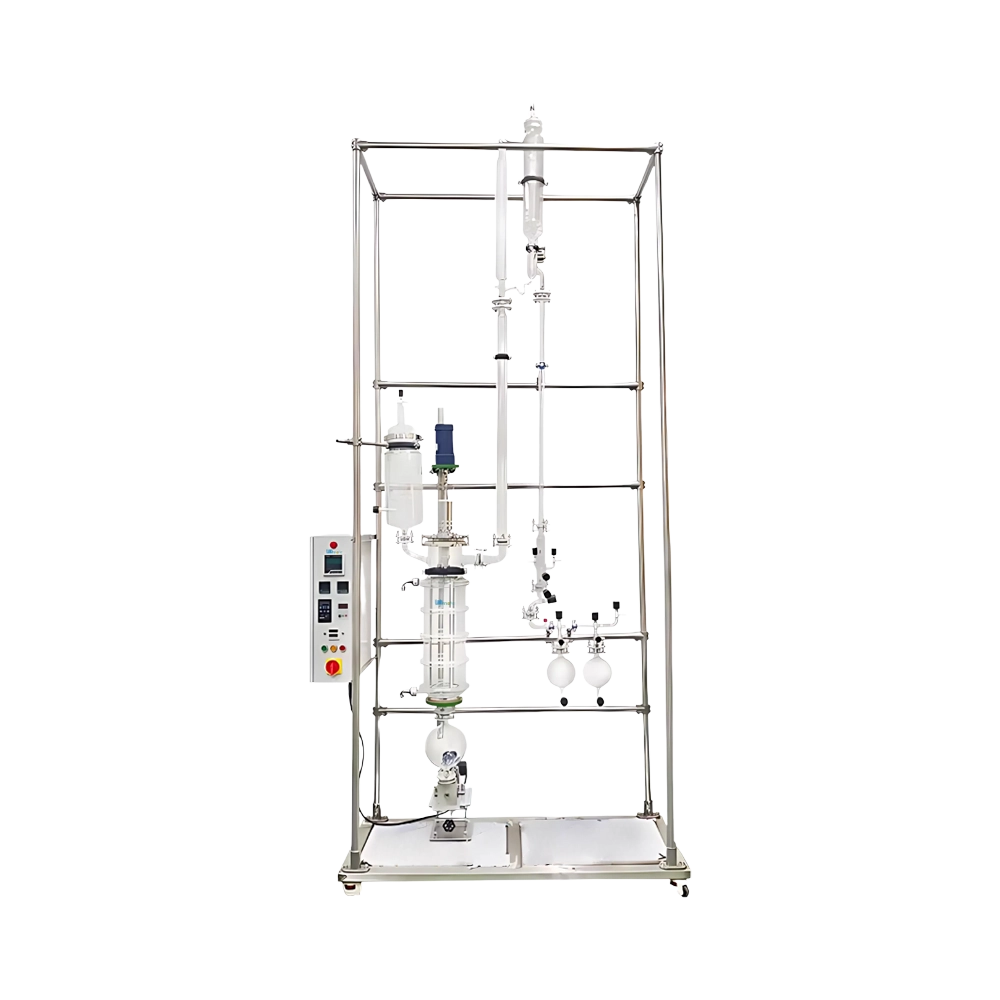

Thin Film Distillation Column LMTFD-A103 Catalog
| Capacity | 2 L |
| Working Temperature | Less than or equal to 300°C |
| Pressure | Less than or equal to 1 mbar |
| Rotation Speed Range | 50 to 500 rpm |
| Condenser Area | 0.4 m² |
Thin Film Distillation Column LMTFD-A105 Catalog
| Capacity | 15 L |
| Material | Stainless steel 316L |
| Flow Rate | 1.5 to 6 L/h |
| Light Discharge Gear Pump Flow Rate | 1.5 to 6 L/h |
| Heavy Discharge Gear Pump Flow Rate | 1.5 to 6 L/h |
Thin Film Distillation Column LMTFD-A104 Catalog
| Capacity | 5 L |
| Working Temperature | Less than or equal to 300°C |
| Pressure | Less than or equal to 1 mbar |
| Rotation Speed Range | 50 to 500 rpm |
| Condenser Area | 0.5 m² |
