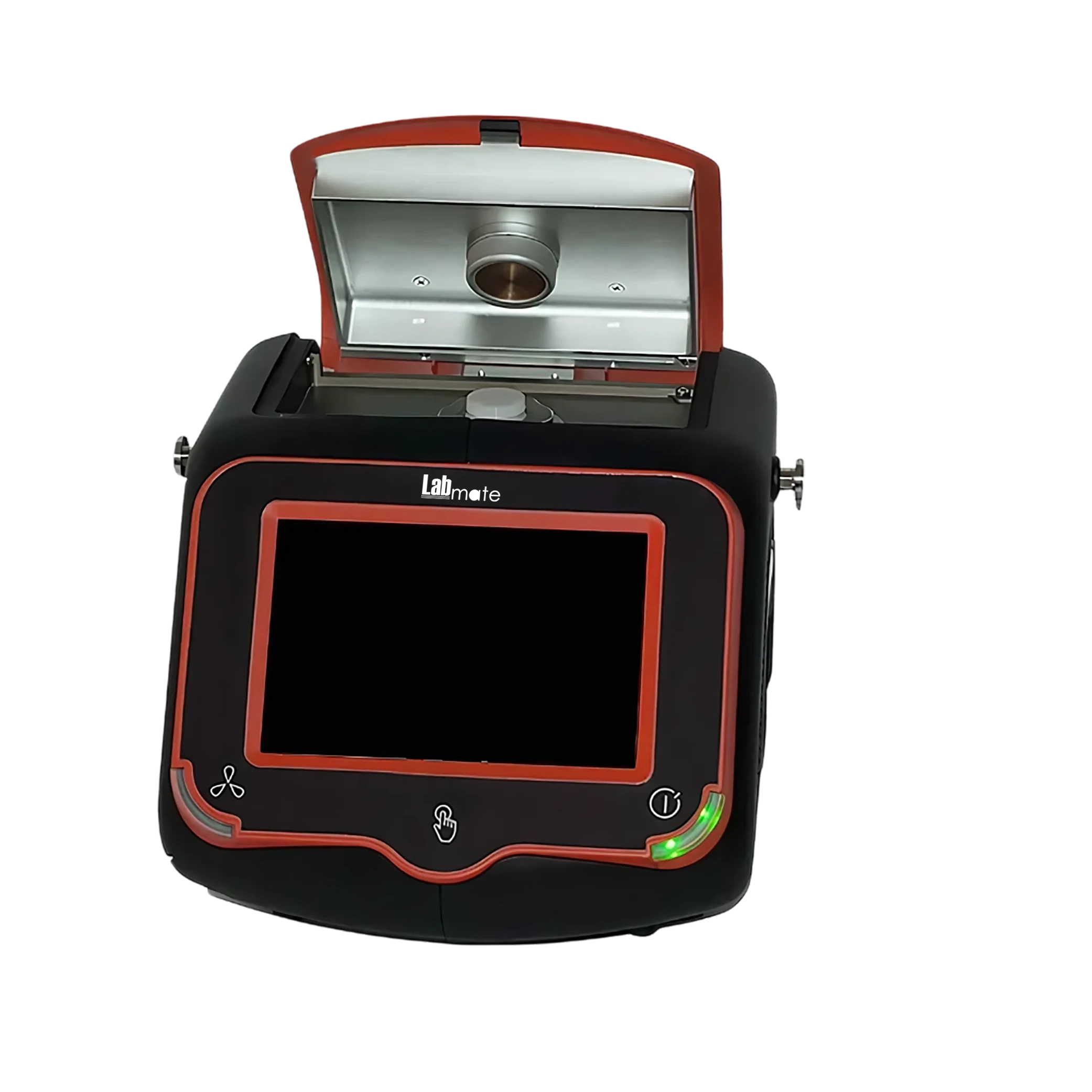

Sulfur Analyzer LMSA-401 is portable and rugged design with low detection limits and high accuracy. Features quick analysis in 130 seconds per sample with minimum sample preparation. Intuitive interface displayed on large 8 inches touch screen. It is specially designed for on-board total sulfur content analysis in wide concentration range from ppm to percent levels. Vacuum based system for upgrade performance. Liquid, powder and solid type of samples are required. Data can be transferred to PC through USB port or Bluetooth.
| Detector | High Resolution SDD |
| Excitation Source | 4 watts high efficiency micro tube 50kv Max, 200uA Max |
| Working temperature | "-20 to 50°C |
| Test environment | Air (4294) and vacuum (4294 Plus) |
| Measuring time per sample | 130 seconds |
| Factory Calibration | Low sulfur: 10ppm- 100ppm High sulfur: 0.01%-5% |
| Detection Limit of Sulfur | 3.8 ppm (Air)- Compass 4294 1.0ppm (Vacuum)- Compass 4294 Plus |
| Instrument Dimension (L×W×H) | 270×320×230mm |
| Sample Chamber Dimension (L×W×H) | 170×110×17mm |
| Weight | 9.4 kg |
| Operation touch Screen (1280×800) | 8 inches Windows 10 based OS |
| External Connection | USB Port, Blue-tooth, Wi-Fi, GPS |
| Test Report | Excel, PDF |
| Consumables | Sample test Mylar Oil analysis sample cup Sampling pipette Test window film |
Widely applied for analysis of sulfur content in bunker diesel fuels and Analysis of hydrocarbon samples of heating oil, kerosene, jet A, vacuum gas oil (VGO), and crude oil and Analysis of catalysts in the fuel- avoiding engine failure
