Overview

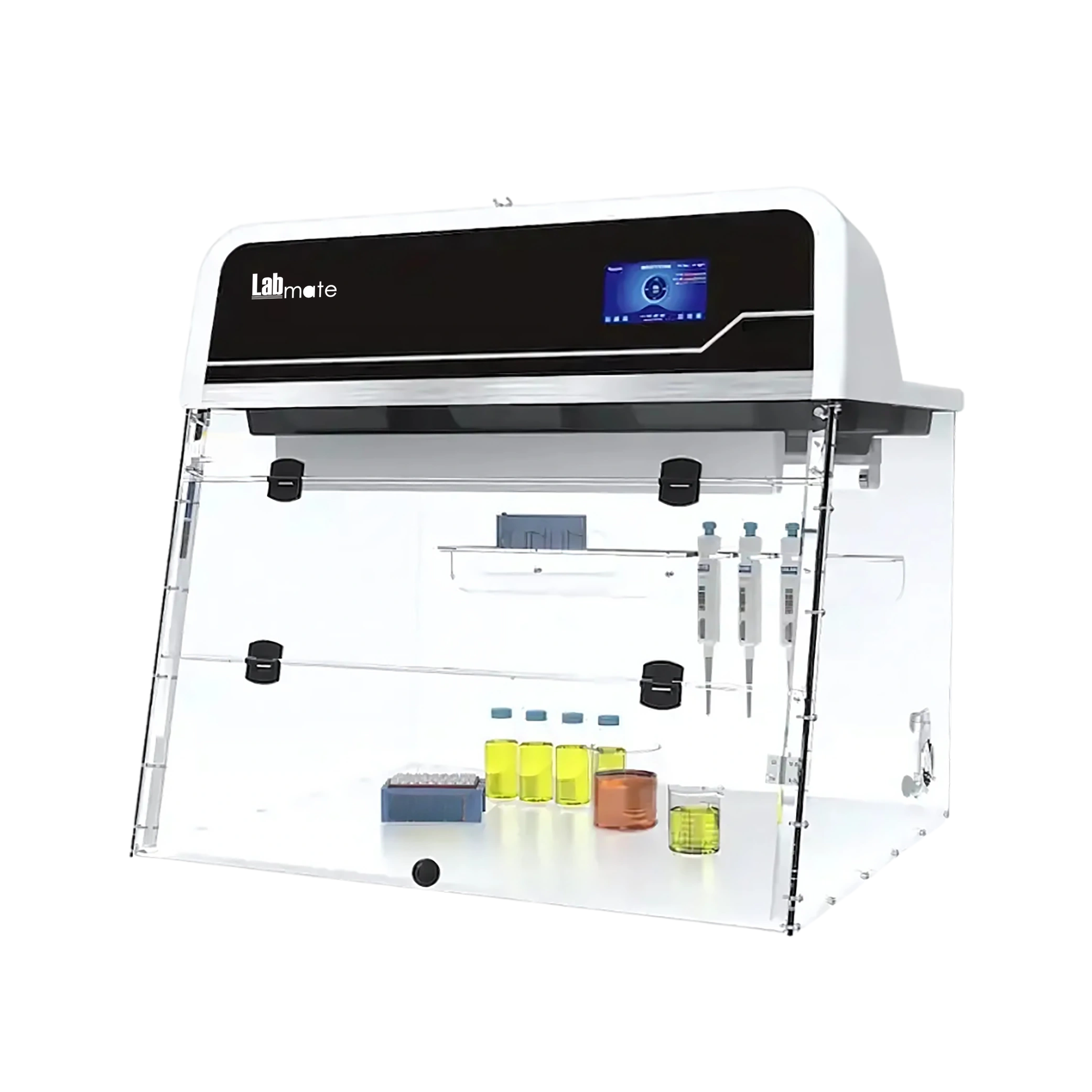

PCR Workstation LMPWS-A100 has an external size of 1260×650×1004 mm with ISO5 HEPA-filtered airflow and UV irradiation. Equipped with microprocessor controller for easy operation. Incorporated with seamless polycarbonate and polypropylene design for durability and UV reflection. It includes vertical laminar airflow, UV & fluorescent lights, digital UV timer and ready-to-use setup. Our Workstation is applied in biology, molecular, and genetic laboratories to prevent cross-contamination.
Features :
Ductless Operation
Adjustable Airflow Rate
Adjustable Blower Speed
Compact design
Specifications :
| Max Purified Air Volume | 11.2 m³/min |
| Airflow Rate & Blower Speed | Adjustable |
| Low Airflow Alarm | Visual and Audible |
| Blower/Fan | EC Axial Flow Fan ×2 |
| Lighting | LED, 16 W, 600 lux |
| UV Light | 254 nm, 30 W |
| Pre-Filter Efficiency | greater than 95% at 0.5 μm particles |
| HEPA Filter Efficiency | Greater than 99.997% at 0.3 μm particles |
| Cleanliness Level | ISO 5, FS209E Class 100 |
| Monitoring & Alarming | Temperature, Humidity, Filter Loading, UV Lamp Status with Visible & Audible Alarm |
| Main Materials | Polycarbonate and Polypropylene |
| Overall Structure | Ready to use, no need assembles onsite, no need ductwork |
| Internal Dimensions (W×D×H) | 1230×640×680 mm |
| External Dimensions (W×D×H) | 1260×650×1004 mm |
| Instrument Rack Dimensions (L×W×H) | 1220×650×864 mm |
| Packaging Dimensions | 1350 × 780 × 1290 mm |
| Weight (Filters Included) | 70 Kg |
| Gross Weight | 230 Kg |
Applications :
PCR Workstation LMPWS-A100 is employed for contamination-free DNA and RNA amplification in molecular biology and genetic research. It is widely applied in clinical, diagnostic, and biotechnology laboratories for safe sample preparation.
