Overview

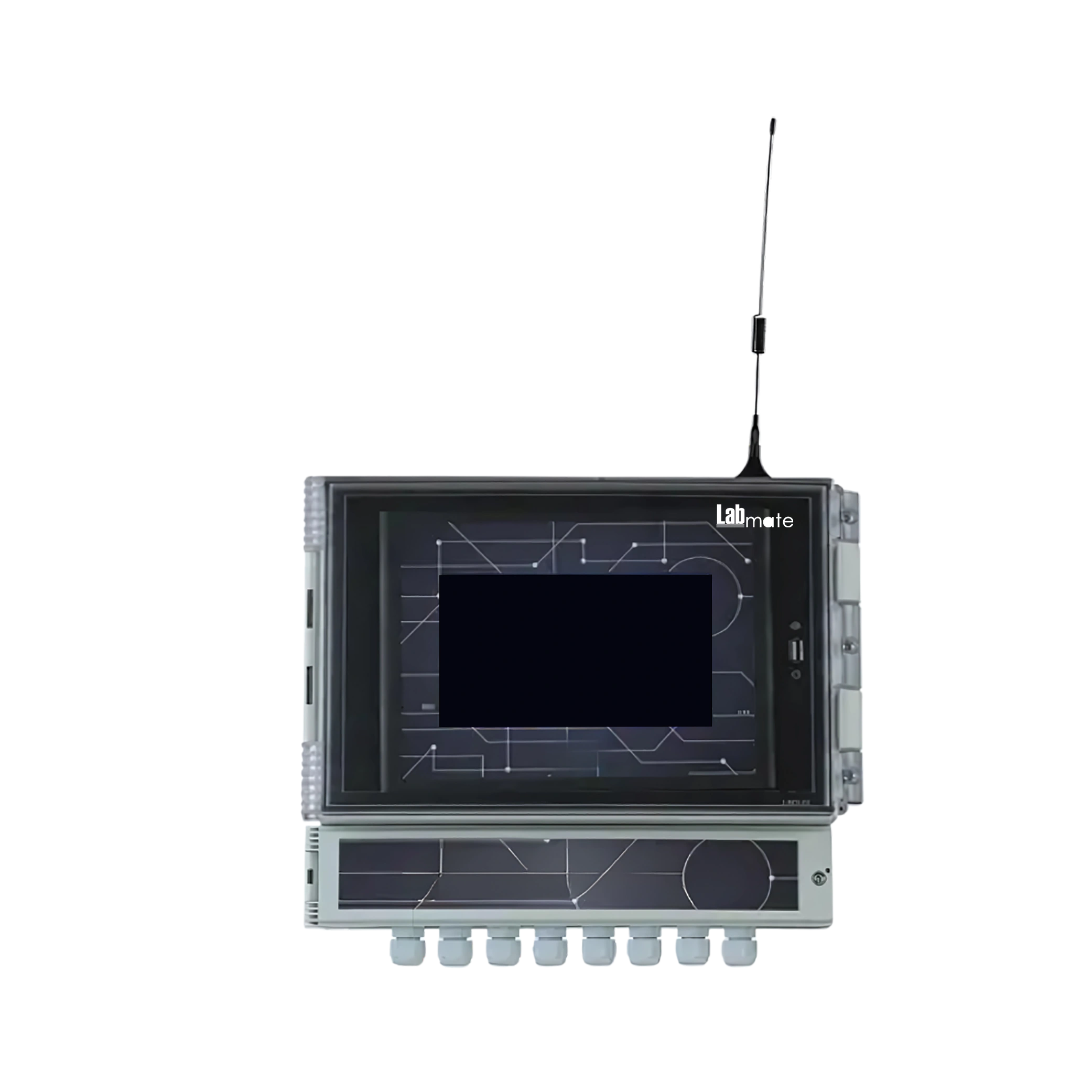

Multiparameter Water Quality Meter LMWM-801 is a fully spontaneous meter that measures and tracks water quality by combining temperature, conductivity, dissolved oxygen, pH, mV, and turbidity in one unit. Featuring a pH range between 0 to 14 that works within a temperature range between 0 to 50℃. Outfitted with a sensor with a conductivity range of 0 to 2000 mS/cm. Enhanced by smooth data transfer and connection with additional control or monitoring systems.
Features :
Designed with a touchscreen display that provides flawless visualization of all operational parameters
Integrated with a digital sensor that enables accurate and reliable result
Suspended with a wireless module offers a dependable and convenient data transmission solution
Extensive measurement range assures precision in collecting data from ultra-pure water to highly conductive solutions
Intended with a data logger for comprehensive data storage
Supplied with an immersive digital experience provided by an interactive visual interface that reacts to our fingertips continuously
Effortlessly retrieved data via USB for convenient analysis
Specifications :
| Digital Sensors | 0 to 14, 0 to 50℃, 0 to 12000 mg/L, 0 to 20 mg/L, 0 to 1000 mg/L, 0 to 2000ms/cm, 0 to 3000 NTU, -2000 to 2000 mv, 199 Digital Sensors |
| Data Logger | 128M |
| Display | LCD: 7-inch touchscreen |
| Power Supply | 24VDC or 220VAC |
| Protection | IP65 |
| Input | RS485 Modbus |
| Output | 2 ways of RS485 ModbusOr 1 way RS485 and 1 way for Wireless modul |
| Dimension | 320 × 270× 121 mm |
| Weight | 25 kg |
Optional Accessories :
Model No | Accessory Name | Unit | Quantity |
LMWM-801-P1 | pH Electrode | Each | 1 |
LMWM-801-P2 | ORP Electrode | Each | 1 |
LMWM-801-P3 | Dissolved oxygen Electrode | Each | 1 |
LMWM-801-P4 | Conductivity Electrode | Each | 1 |
LMWM-801-P5 | Turbidity Electrode | Each | 1 |
LMWM-801-P6 | TSS Electrode | Each | 1 |
LMWM-801-P7 | Ammonia (NH3-N) Electrode | Each | 1 |
LMWM-801-P8 | Nitrate Nitrogen (NO3-N) Electrode | Each | 1 |
Applications :
It is widely used in laboratories and the pharmaceutical industry for environmental monitoring, water resource management, aquaculture, research, and a wide range of water quality assessments.
