Labmate Microscopy Equipment provides advanced optical and digital solutions for precise sample observation and analysis. They feature high-quality lenses and stable frames ensuring sharp, accurate imaging across various magnifications. These include Microscope Camera for data capture and analysis for research and documentation. Their Compact and ergonomic designs facilitate ease of use and efficient laboratory workflows. Our Microscopy Equipment is designed for educational, clinical, and industrial laboratories, ensuring reliable and reproducible microscopic observations

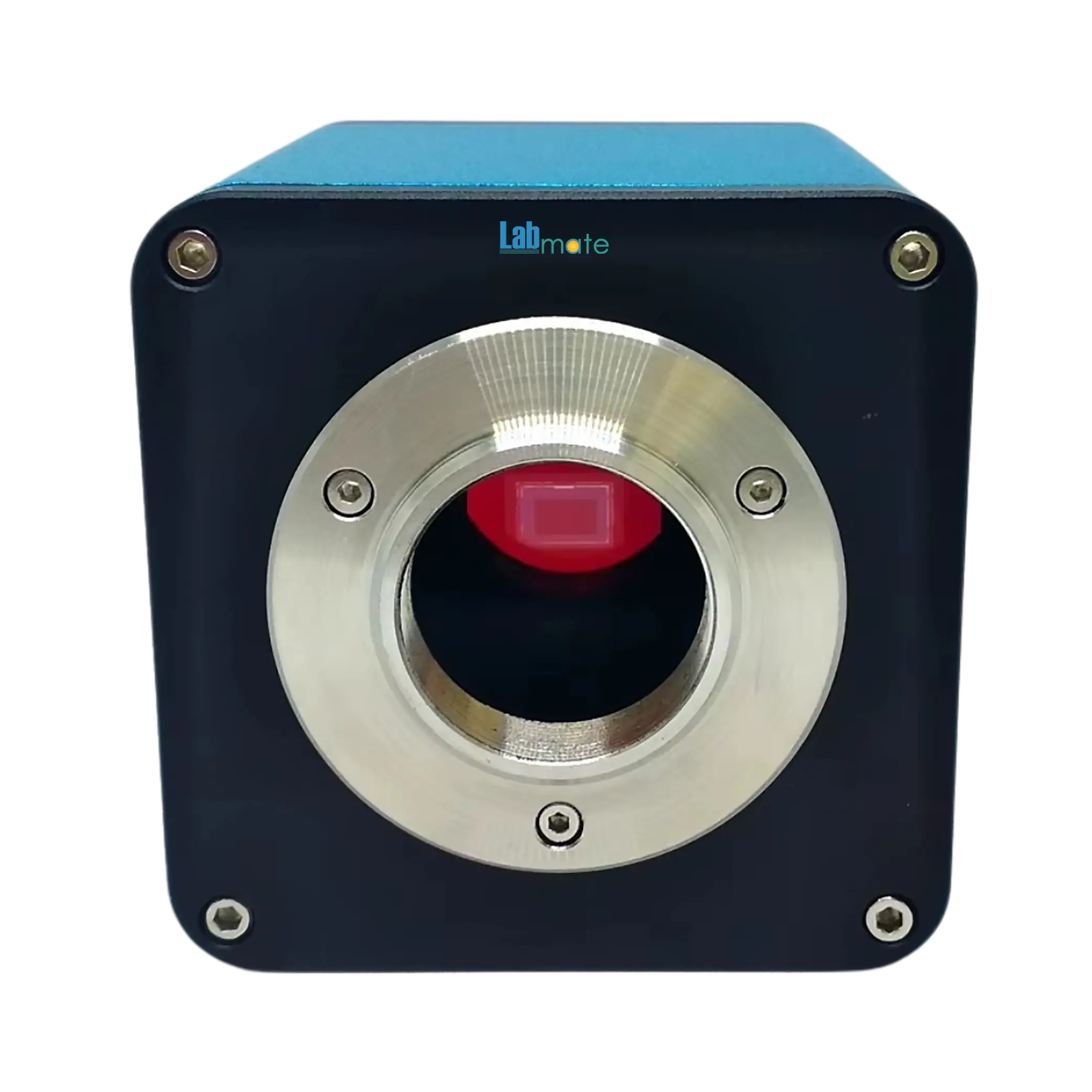

Microscope Camera LMMIC-A100 Catalog
| Sensor Type | CMOS Colours |
| Focus Mode | CMOS Colours |
| Effective Pixels | 2.0MP |
| Sensor Size | 1 / 2.8’’ inch |
| Lens Mount | Type C |
| Menu | All-digital UI design |
| Operation mode | Mouse operation |
| Power Dc | DC5V |
| Output | HDMI |
Microscope Camera LMMIC-A101 Catalog
| Sensor Type | CMOS Colours |
| Sensor Size | 1/2.8 |
| Effective Pixels | 2.0 MP |
| Menu | All-digital UI design |
| Operation Mode | Mouse operation |
| Frame Rate | 1080P @ 60fps / 50fps |
| Scanning Mode | Progressive |
| Power DC | DC 5V |
| Interface | USB 3.0 |
Microscope Camera LMMIC-A103 Catalog
| Sensor Type | CMOS (5.0 MP) |
| Effective Pixels | 2560H × 1920V |
| Optical Size | 1/2 |
| Operation System | Linux 3.10 |
| Inner-Core Structure | Dual-core Cortex-A9 |
| Frequency Speed | 1 GHz |
| Frame Rate | 60 fps (1080p) |
| Interface | 2 x USB, HDMI digital output |
| Lens Mount | C-Mount, Type C |
Microscope Camera LMMIC-A104 Catalog
| Chip Structure | FPGA + ARM |
| Operation System | Linux 3.10 |
| Inner-core Structure | Dual-core Cortex-A9 |
| Frequency Speed | 6.66 GHz |
| Pixel | 5.0 MP |
| Effective Pixels | 2560H × 1920V |
| Frame Rate | 60 fps |
| Optical Size | 1/2 |
| Dynamic Range | HDR |
Microscope Camera LMMIC-A106 Catalog
| Sensor Type | 2.0 MP, 1/2.8’’ inch |
| Effective Pixels | 1920 × 1080V |
| Data Bites | 12bit |
| Pixel Size | 2.9 µm × 2.9 µm |
| Frame Rate | 60fps/s |
| Definition | 900TV |
| Scanning Mode | Progressive |
| Shutter Mode | Electronic shutter |
| Dynamic range | >90dB |
Microscope Camera LMMIC-A105 Catalog
| Chip Structure | XILINX ZYNQ |
| Operation System | Linux |
| Inner-core Structure | ARM COTEX A9 +FPGA |
| Frequency Speed | 666 Mhz |
| Pixel | 8.0 MP |
| Effective Pixels | 3840 × 2160 |
| Frame Rate | 30 fps |
| Optical Size | 1/1.8 |
| Dynamic Range | HDR wide dynamic |
Microscope Camera LMMIC-A108 Catalog
| Sensor Type | 4.0MP, 1/ 3” inch SONY color, CMOS |
| Effective Pixels | 2560H × 1440V |
| Data Bites | 12bit |
| Pixel Size | 2.0 µm × 2.0 µm |
| Frame rate | 30fps/s |
| Definition | Above 1200TV lines |
| Scanning Mode | Progressive |
| Shutter Mode | Electronic shutter |
| Dynamic Range | >90dB |
Microscope Camera LMMIC-A107 Catalog
| Sensor Type | 2.0MP, 1/ 2.8” inch SONY color, CMOS |
| Effective Pixels | 1920H × 1080V |
| Data Bites | 12bit |
| Pixel Size | 2.9 µm × 2.9 µm |
| Frame rate | 60fps/s |
| Definition | Above 900TV lines |
| Scanning Mode | Progressive |
| Shutter Mode | Electronic shutter |
| Dynamic Range | >90dB |
Microscope Camera LMMIC-A109 Catalog
| Sensor Type | 8.0MP, 1/ 2.8” inch, CMOS |
| Effective Pixels | 3480H × 2160V |
| Data Bites | 12bit |
| Pixel Size | 1.45 µm × 1.45 µm |
| Frame rate | 30fps/s |
| Definition | Above |
| Scanning Mode | Progressive |
| Shutter Mode | Electronic shutter |
| Dynamic Range | >90dB |
Microscope Camera LMMIC-A110 Catalog
| Sensor Type | 8.0MP, 1/3” inch SONY Color, CMOS |
| Effective Pixels | 3480H × 2160V |
| Data Bites | 12bit |
| Pixel Size | 1.45 µm × 1.45 µm |
| Frame rate | 30fps/s |
| Definition | Above 1500TV line |
| Scanning Mode | Progressive |
| Shutter Mode | Electronic shutter |
| Dynamic Range | >90dB |
Microscope Camera LMMIC-A111 Catalog
| Sensor Type | CMOS (8 MP) |
| Effective Pixels | 3840×2160 |
| Interface | USB 3.0 |
| Exposure | Automatic |
| Recording System | Still Picture (JPG, PNG, TIF) Movie |
| Operating System | Windows XP/Vista/7/8/10 (32 and 64 bit) Mac OSX Linux |
| PC Requirements | CPU: Intel Core 2, 2.8 GHz or Higher Memory: 2 GB or More USB Port: USB 2.0 High-speed Port Display: 17 inch or Larger CD-ROM |
Microscope Camera LMMIC-A112 Catalog
| Sensor Type | MT9J003 Color CMOS Sensor |
| Sensor Size | 1/2.3-inch (5.98 × 4.58 mm) |
| Resolution | 10 Megapixels |
| Pixel Size | 1.67 × 1.67 µm |
| G Sensitivity | 0.31 V/lux-sec |
| Dynamic Range | 65.2 dB |
| Dark Signal Noise | 34 dB |
| Frame Rate | 7.2 fps at 3584 × 2746 and 24.5 fps at 1792 × 1372 |
| Binning Modes | 1×1, 2×2, 4×4 |
Microscope Camera LMMIC-A113 Catalog
| Sensor Type | Color CMOS Sony IMX178 Sensor |
| Sensor Size | 1/1.8-inch (7.68 × 4.32 mm) |
| Resolution | 8.0 Megapixels |
| Pixel Size | 2 × 2 |
| G Sensitivity | 505 mv with 1/30 s |
| Video Resolution | 8 MP |
| Frame Rate | 30 fps at 3840 × 2160 and 20 fps at 3840 × 2160 |
| Recording Modes | Still images and video capture Exposure (Automatic/Manual Exposure) / Gain, White Balance (Manual/Auto/ROI mode), Sharpening, 3D Denoise, Saturation Adjustment, Contrast Adjustment, Brightness Adjustment, Gamma Adjustment, Color to Gray Conversion, 50/60Hz Anti-flicker |
| Image Signal Processor | Exposure (Automatic/Manual Exposure) / Gain, White Balance (Manual/Auto/ROI mode), Sharpening, 3D Denoise, Saturation Adjustment, Contrast Adjustment, Brightness Adjustment, Gamma Adjustment, Color to Gray Conversion, 50/60Hz Anti-flicker |
