Overview

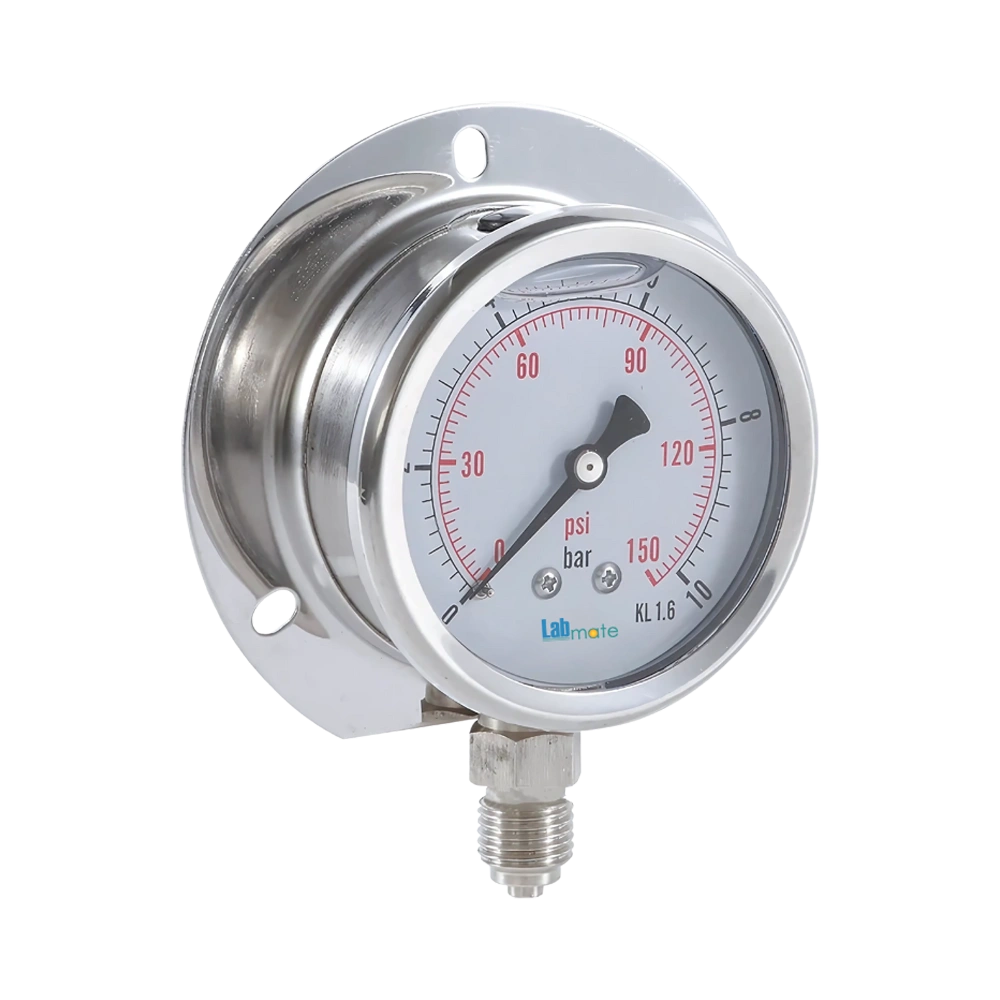

Manometer LMMNR-A100 is equipped with a liquid column and measures the pressure ranges from 0.6 to 1000 bar. It effectively operates in temperatures ranging from -20 °C to +60 °C for gases and liquids. Our manometers offer various nominal sizes such as 40, 50, 63, and 100mm suitable for various applications.
Features :
Aluminum dial and pointer
Integrated with O-ring seal
Vibration and shock-resistant
Complies with EN 837-1 standard
Specifications :
| Pressure Range | 0.6 to 1000bar |
| Nominal Size | 40, 50, 63, 80 and 100 mm |
| Nominal Accuracy | NS 40: 2.5 NS 50,63,80: 1.6 NS 100: 1.0 |
| Pressure Limitation | NS 40,50, 63: Steady - 3/4 x full-scale value Fluctuating - 2/3 x full-scale value Short time - Full-scale value NS-80,100: Steady - Full-scale value Fluctuating - 0.9 x full-scale value Short time - 1.3 x full-scale value |
| Temperature Range | -20 to +60 °C (Maximum) |
| Process connection | stainless steel lower mount (LM) or back mount (BM) |
| Pressure element(bourdon tube) | stainless steel C-type or helical type |
| Window Material | Polycarbonate |
| Dimension | 92 × 30 mm |
| Weight | 0.2kg |
Applications :
Manometer is widely utilized in industrial processes, HVAC systems, medical equipment, laboratory and scientific research, environmental monitoring, quality control, and process validation.
