Overview

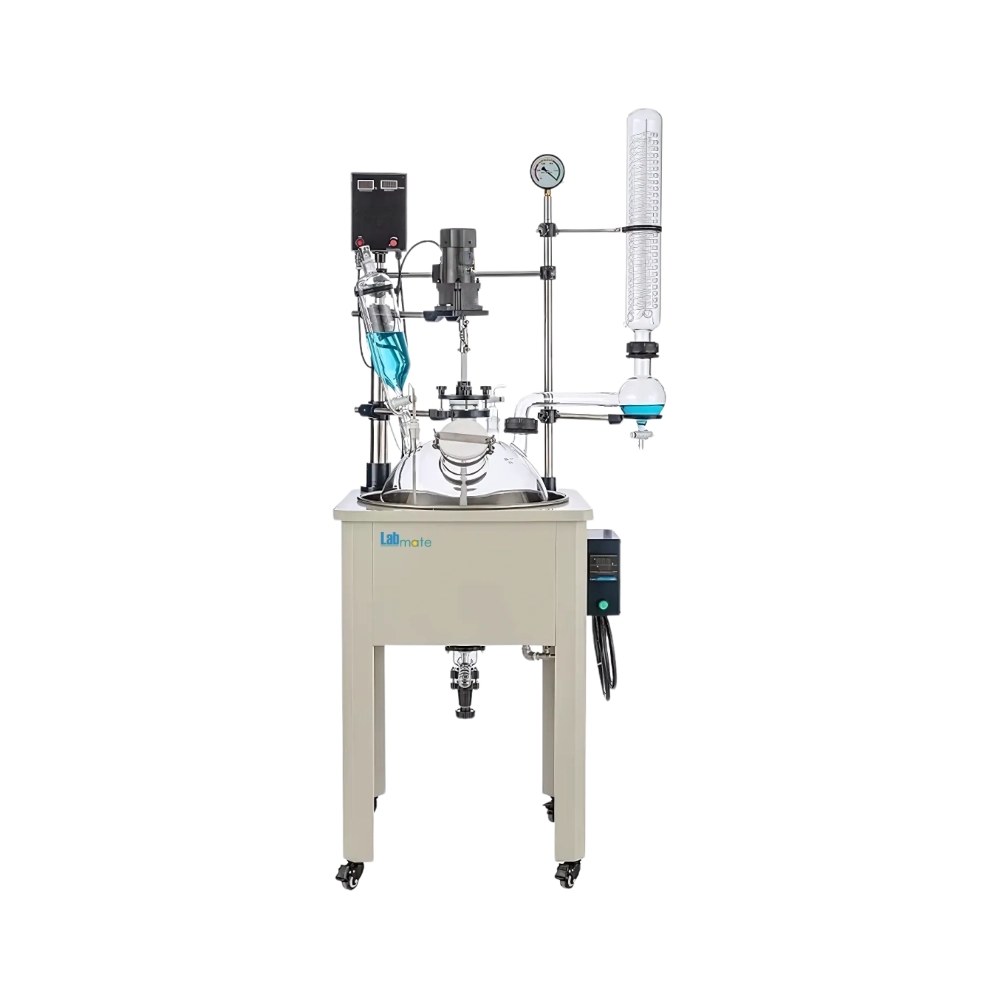

Explosion Proof Glass Reactor LMEGR-A106 is designed to offer 30-liter capacity. It features stepless speed control that enables reliable mixing for various material consistencies and reaction conditions. Equipped with vacuum gauge, it allows internal pressure monitoring for controlled vacuum-dependent procedures. Incorporates condenser and reflux elbow for efficient vapor condensation. Our Reactor is ideal for chemical synthesis, distillation, and solvent recovery.
Features :
Real-time temperature interface
Uniform heat distribution
Dual-seal protection
Mobile caster base
High-torque motor
Specifications :
| Capacity | 30 L |
| Dropping Funnel Volume | 2 L |
| Temperature Range | -80 to 250°C |
| Rotation Speed Range | 0 to 450 rpm |
| Vacuum Degree | 0.098 MPa |
| Temperature Measurement Accuracy | ±1°C |
| Stirring Motor Power | 180W |
| Heating Power | 8kW |
| Power Supply | 220V/50Hz (Stirrer) |
| Glass Vessel Diameter | 420 mm |
| Dimensions (W×D×H) | 860×590×2080 mm |
| Weight | 63 Kg |
Applications :
Explosion Proof Glass Reactor LMEGR-A106 is ideal for chemical synthesis, material distillation, reaction monitoring, solvent recovery, pharmaceutical formulation, and vacuum-assisted evaporation.
