Drug Dissolution Tester Catalogs

Drug Dissolution Testers measure how fast and how completely the active ingredient leaves a tablet, capsule or granule, the test regulators use to confirm that each batch will release the drug as designed. Vessels sit in a water bath held at 37 degrees C to match body temperature, while USP Apparatus 1 baskets or Apparatus 2 paddles rotate at a set speed in the dissolution medium. Samples are drawn manually or automatically at fixed intervals, and software builds the release profile in real time. Methods follow USP, EP and JP, with 21 CFR Part 11 readiness. Typical uses include batch release QC, formulation development, bioequivalence of generics and stability studies.

Labmate Scientific LLC Drug Dissolution Tester LMDDT-A100 Catalog Drug Dissolution Tester LMDDT-A100 Catalog
Number Of Vessels 12
Number Of Poles 12
Position Of Vessels and Poles 6 in front, 6 at back
Speed Range 20 to 200 rpm
Speed Accuracy ± 2 rpm

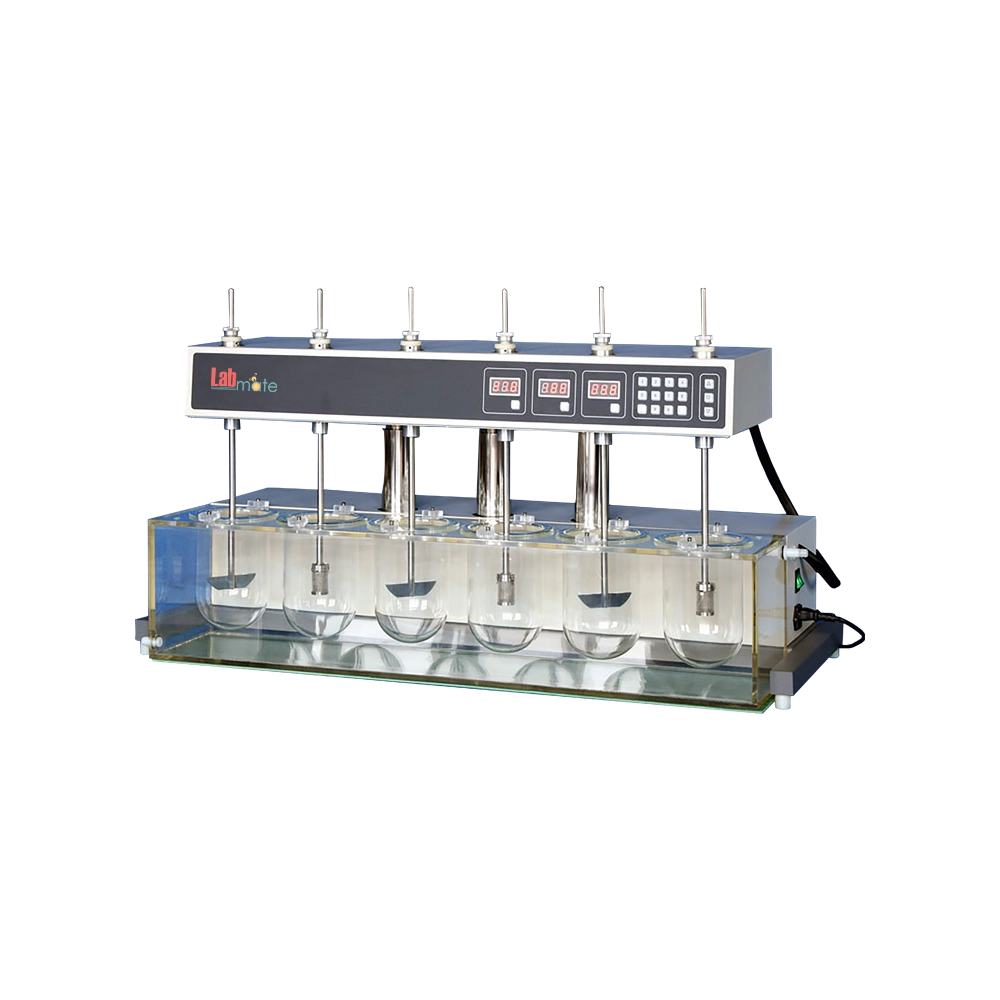

Labmate Scientific LLC Drug Dissolution Tester LMDDT-A101 Catalog Drug Dissolution Tester LMDDT-A101 Catalog
Speed range 20 to 200 rpm
Speed accuracy ± 2 rpm
Temperature range Ambient to 45°C
Temperature accuracy ± 0.3°C
Head part movement Electrically turn over

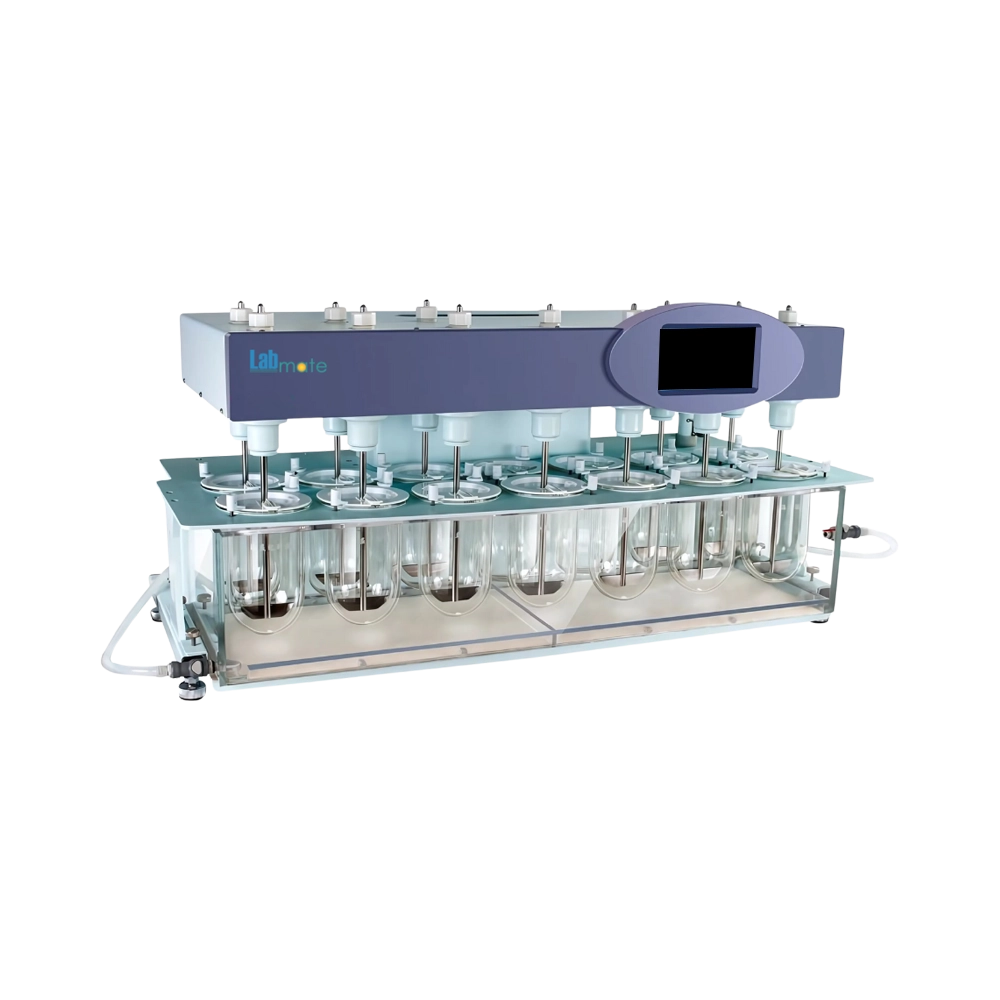

Labmate Scientific LLC Drug Dissolution Tester LMDDT-A102 Catalog Drug Dissolution Tester LMDDT-A102 Catalog
Speed Control Range 10 to 300 rpm
Speed Resolution 1 rpm
Speed Accuracy ±4%
Temperature Range Room Temperature to 55°C
Temperature Resolution 0.01°C

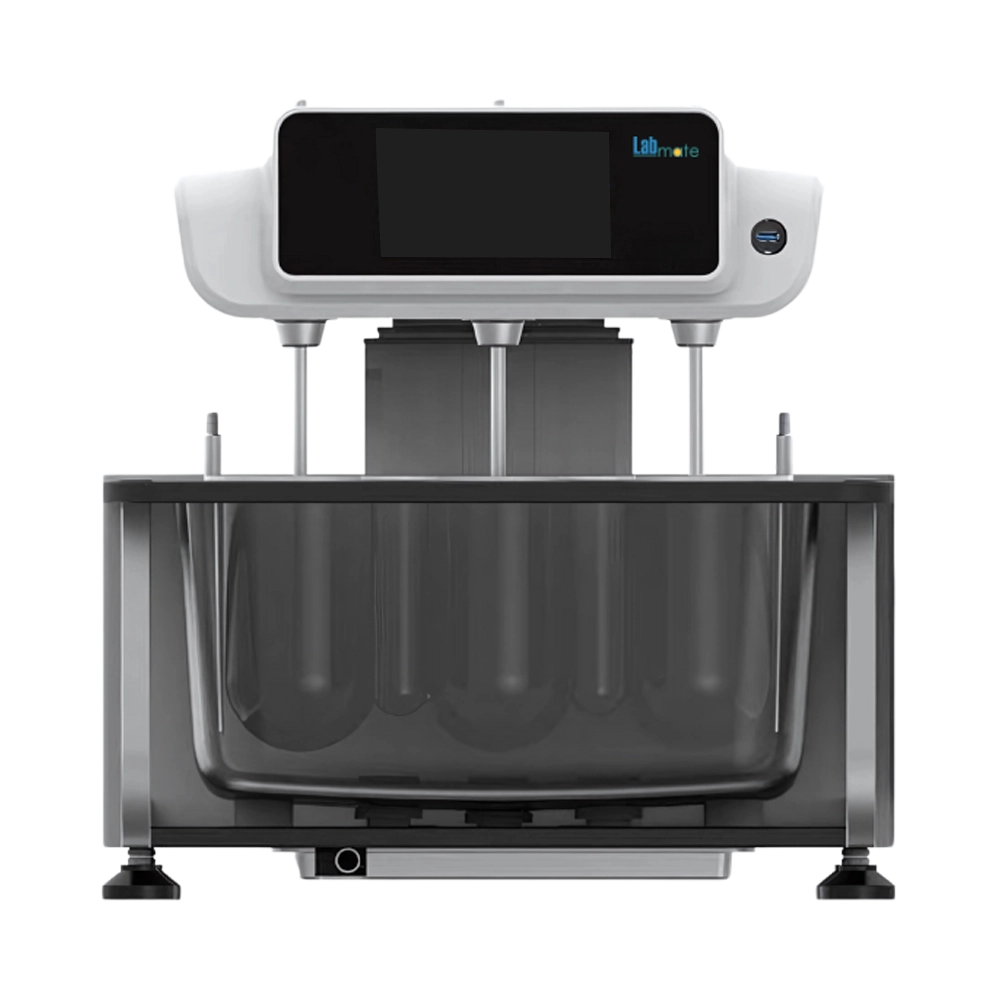

Labmate Scientific LLC Drug Dissolution Tester LMDDT-B100 Catalog Drug Dissolution Tester LMDDT-B100 Catalog
Vessel Number 6 pieces
Stirring Paddle Swing Amplitude Greater than or equal to 0.5 mm
Basket Swing Range Greater than or equal to 1mm
Deviation Between Rotating Rod And Vessel Axis Greater than or equal to 2mm
Speed Setting Range 10 to 300 rpm

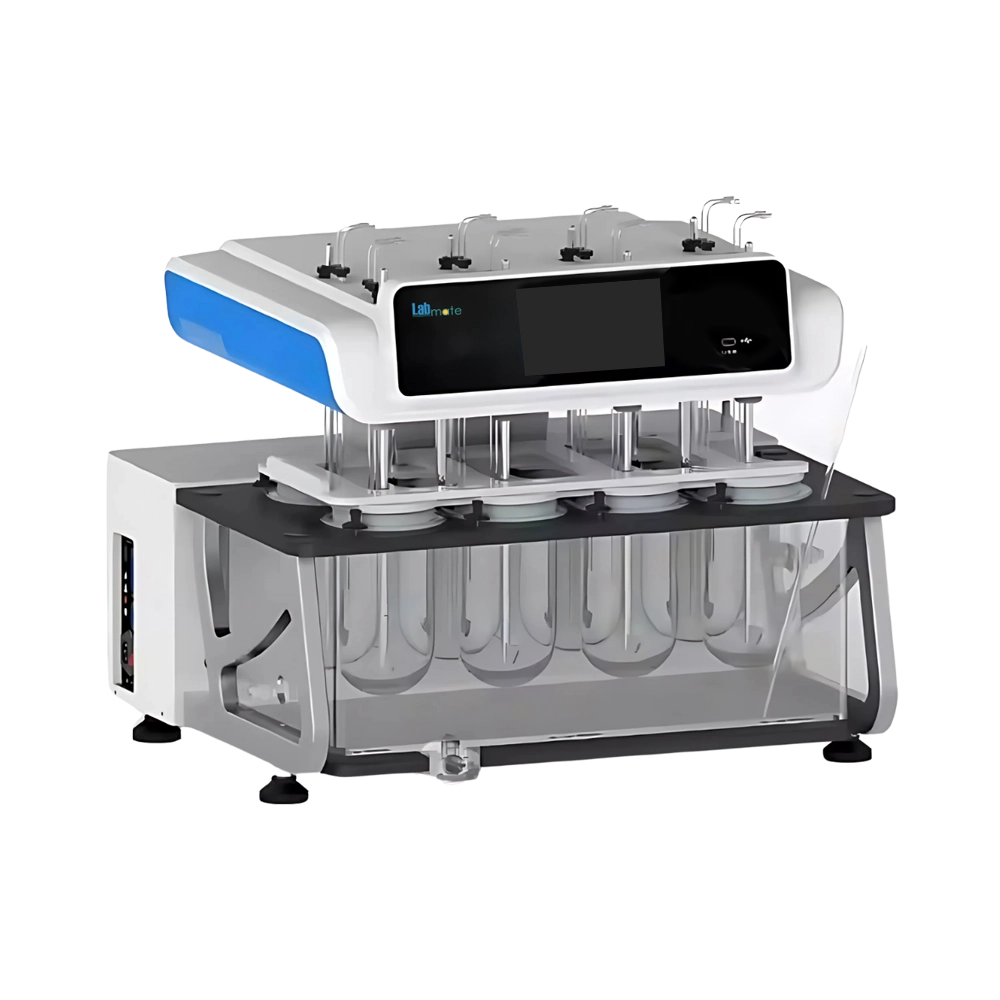

Labmate Scientific LLC Drug Dissolution Tester LMDDT-B101 Catalog Drug Dissolution Tester LMDDT-B101 Catalog
Number Of Vessels 8
Number Of Paddles/Baskets 8
Vessel Height 185 mm
Paddle Swing Amplitude Greater than or equal to 0.5 mm
Basket Swing Range Greater than or equal to 1 mm
