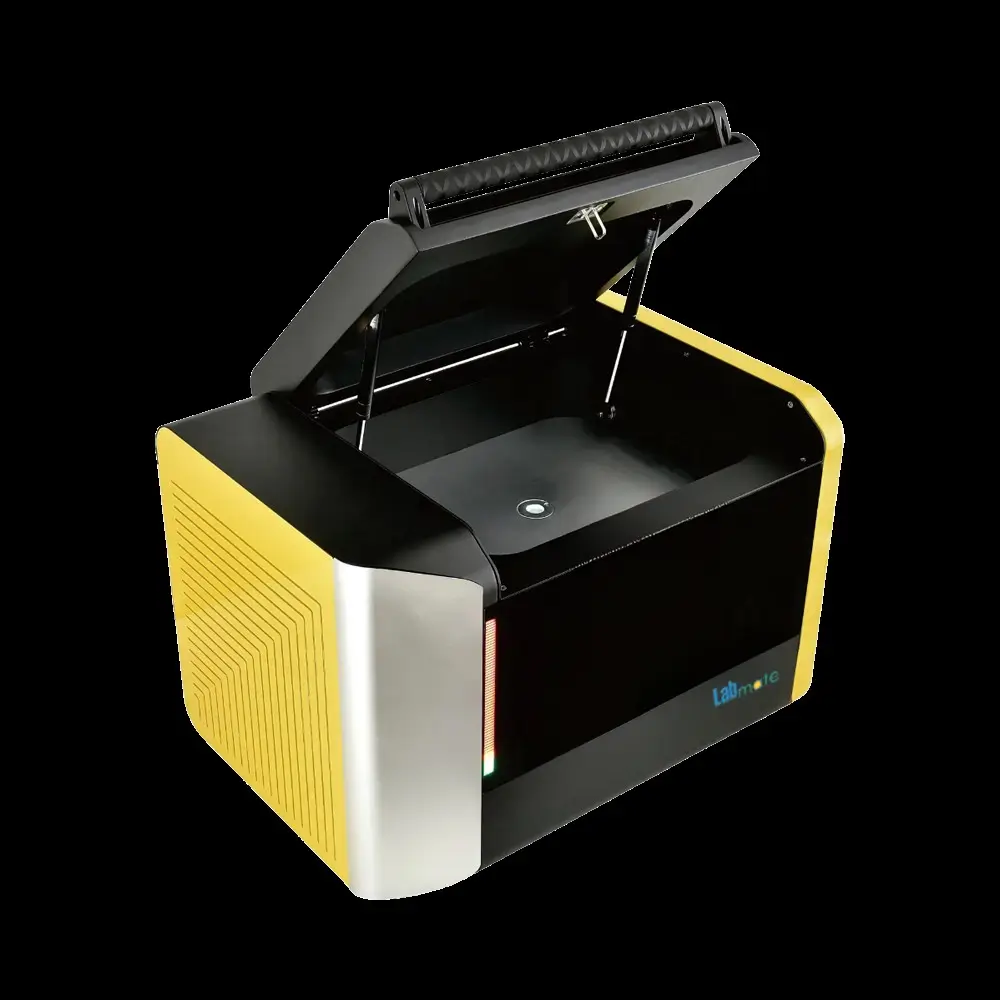

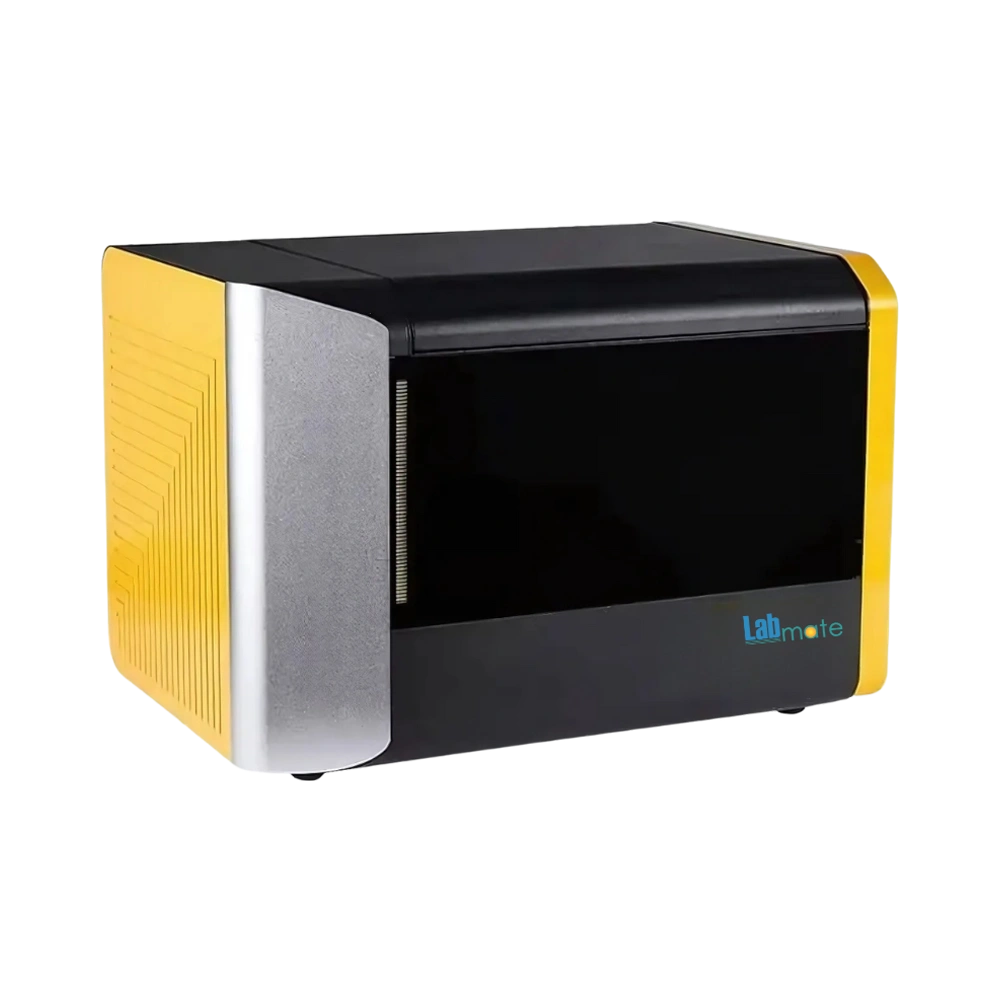

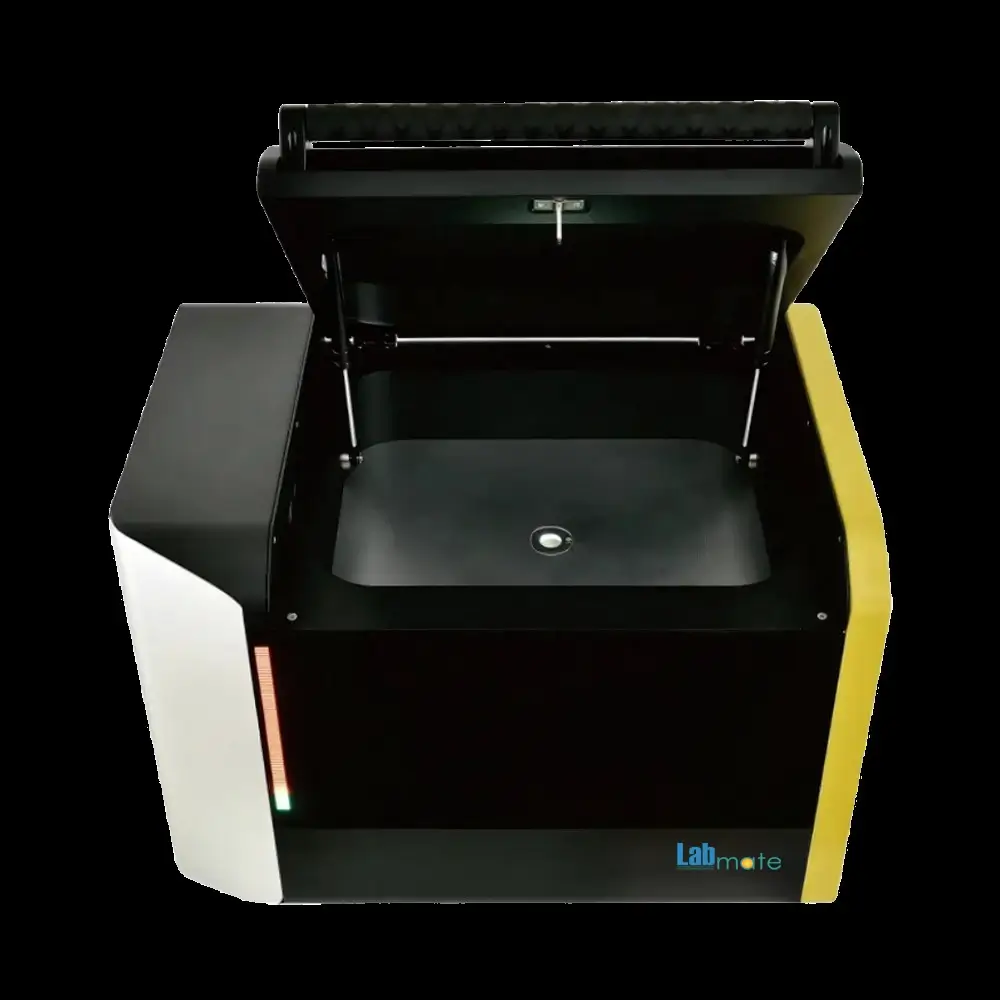

EDXRF Spectrometer LMXRF-A103 offers element analysis from Sodium to Uranium. It features automatic switching of collimators and filters through software, saving effort and improving results. Equipped with large sample chamber, it enables detailed testing for various sample sizes. Incorporates Peltier cooling technology that removes need for liquid nitrogen, lowering maintenance costs. Our Spectrometer is ideal for elemental scanning in petrochemical, metal, and mineral industries.
Specifications
| Measurable Elements | Sodium (Na) to Uranium (U) |
| Test Sample Type | Solid, Liquid, Powder |
| X-Ray Tube Type | High-power side window |
| Tube Cooling Method | Air |
| Detector | SDD |
| Resolution | Less than or equal to 125 eV |
| Temperature Range | 10 to 35°C |
| Camera | 5-megapixel industrial-grade HD camera |
| Detector Cooling | Peltier |
| Measurement Environment | Air, Vacuum, Helium |
| Sample Handling | Automatic filling |
| Beryllium Window Area | 25 mm² |
| Processing Unit | Intel i3-7100 or higher |
| Memory | 4 GB DDR4 or more |
| Storage | 1 TB HDD / 256 GB SSD or more |
| Operating System | Windows 10 |
| Humidity | 40% to 70% (non-condensing) |
| Tube Voltage | 5 to 50 kV |
| Tube Current | 0 to 1000 μA |
| Power Consumption | 600 W |
| Power Supply | AC 220V |
| Instrument Weight | 64 kg |
Pricing
| Product | Price | Unit | Action |
|---|---|---|---|
| EDXRF Spectrometer LMXRF-A103 | $ 68250 | Each of 1 |
Features
Auto Photo Capture
One-Key Operation
Spectrogram Comparison
Dual Quant Methods
Built-in Database
PDF/Excel Reports
Simple User Interface
Applications
EDXRF Spectrometer LMXRF-A103 ensures elemental analysis across cement production, coal power, petrochemical processing, metal alloys, and mineral exploration.
Similar Products
$ 37500 / Each of 1
$ 26162.5 / Each of 1
Frequently Asked Questions
1 What is a Benchtop XRF Spectrometer?
A Benchtop XRF Spectrometer is an apparatus designed to quickly identify the elemental composition of materials using X-ray fluorescence.
2 How is Benchtop XRF Spectrometer used in metal alloy analysis?
It is used in metal alloy analysis to quickly determine the elemental composition and grade of alloys, ensuring quality control and material verification.
3 Can Benchtop XRF Spectrometer assist in environmental testing?
It is widely used for environmental testing by analyzing soil, sediment, and waste samples for contamination with toxic metals.
4 Can Benchtop XRF Spectrometer be used in forensic analysis?
It analyzes evidence such as paint chips, glass fragments, and metals to help solve criminal investigations.
5 Can Benchtop XRF Spectrometer be used in soil analysis for agriculture?
It provides rapid elemental analysis of soils to assist in nutrient management and contamination assessment.
6 Can Benchtop XRF Spectrometer be used to verify precious metals?
It accurately determines the purity and composition of precious metals like gold, silver, and platinum.
7 How is Benchtop XRF Spectrometer used in food packaging quality control?
It screens packaging materials for toxic metals to ensure food safety compliance.
8 How is Benchtop XRF Spectrometer applied in the verification of aerospace fasteners?
It verifies the alloy composition of fasteners to ensure structural integrity in aerospace applications.
9 Can Benchtop XRF Spectrometer be used for mineral exploration?
It is widely used to identify elemental anomalies in rock and soil samples during early exploration stages.
10 Is Benchtop XRF Spectrometer suitable for analyzing concentrate samples?
It quantifies key elements in mineral concentrates to ensure they meet quality and contract specs.
