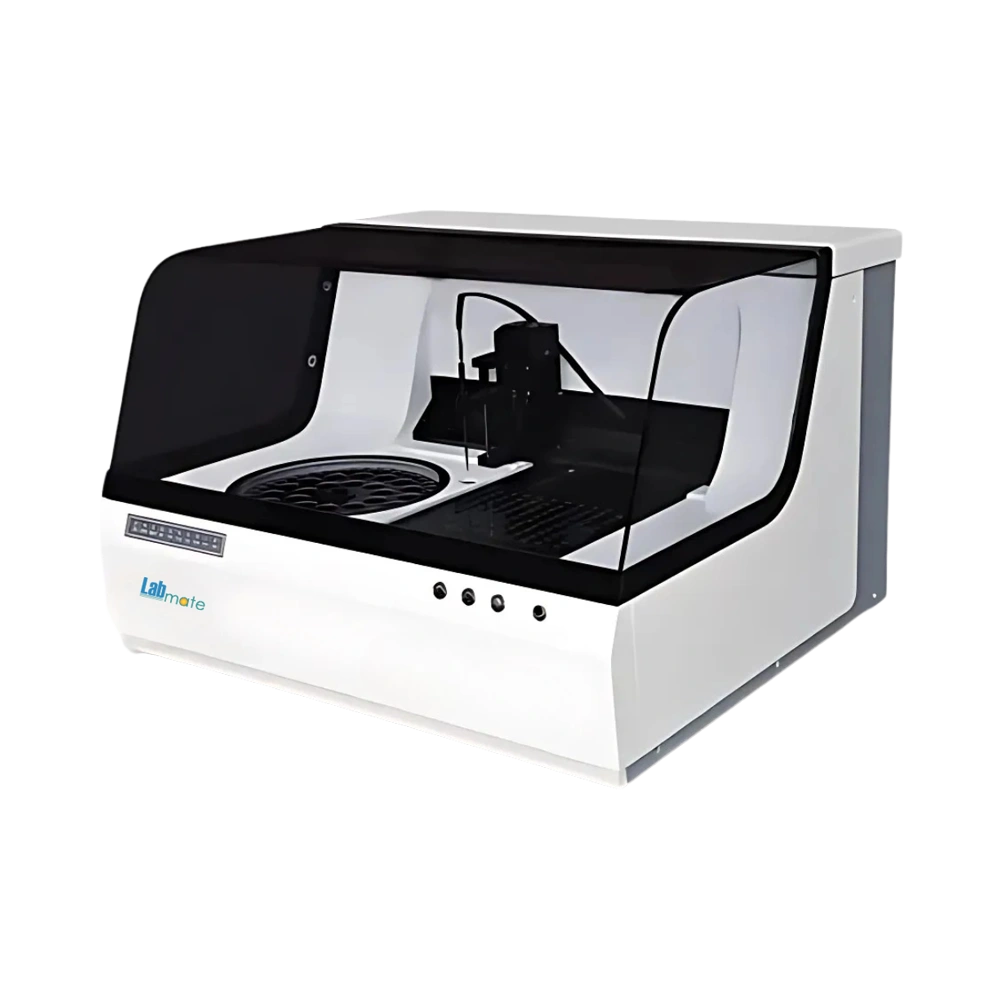

Automatic Coagulation Analyzer LMCA-B100 is designed to assess and monitor the coagulation profile of a patient's blood by employing Optical coagulation assay and immunoassay methodologies. The coagulation analyzer features four test channels, and 40 cuvettes, and accommodates 10 positions each for sample and reagent containers. It offers a range of automated functions, including sample probe cleaning, sampling procedures, measurements, data analysis, and re-testing of abnormal samples, complete with error reporting.
Catalog Manual Send Mail WhatsappSpecifications
| Method | Optical coagulation assay, and immunoassay |
| Test Channels | 4 |
| Test Methods | Automatic or manual test mode |
| Sample Position | 10 |
| Reagent Container Position | 10 |
| Cuvette | 40 |
| Test Timing Range | 0 to 300 s |
| Test Speed | PT - 300 Tests/h,APTT - 250 Tests/h,TT - 300 Tests/h,FIB – 300 Tests/h |
| Reagent Volume | 5 to 200 μL |
| Sample Volume | 5 to 100 μL |
| Preheating Time | >30 mins (after start-up) |
| Constant Temperature | Detector: 37℃ ± 1℃,Reagent and Sample disk: 37℃ ± 1℃ |
| Test Items | Prothrombin time (PT), activated partial thromboplastin time (APTT), thrombin time (TT), fibrinogen (FIB), coagulation factors II-XII, D-dimer, reptilase time (RT), lupus anticoagulant (LA), heparin (HEP), protein C (PC), etc. |
| Temperature Control | Test module and preheating system: 37℃ ± 1℃ (constant temperature control)Reagent cooling temperature control: >16℃ |
| Repeatability | CVPT ≤ 2%CVAPTT ≤ 2.5%CVTT ≤ 3%CVFIB≤5%CV D-Dimer ≤ 6% |
| Relative Bias | FIB relative bias ≤ ±10.0%,D-dimer relative bias ≤ ±10.0% |
| Linearity | FIB linearity r ≥ 0.975D-dimer linearity r ≥ 0.975 |
| Sample Carryover Rate | FIB carryover rate ≤10% |
| Continuous Working Time | ≥ 24 h |
| Display | LCD display or touchscreen |
| Storage | More than 50 million pieces of data |
| Power Supply | AC 220 ± 22 V AC, 50 ± 1 Hz |
| Power | ≤ 320 VA |
| Packaging Dimension (W×D×H) | 820 × 730 × 740 mm |
| Net Weight | 39 kg |
| Gross Weight | 75 kg |
Features
Compact benchtop design with LCD display and remote control
Continuous 24-hour operation
Self-testing with editable calibration
User-friendly interface with consistent performance
Selection Guide
Automatic Coagulation Analyzer LMCA-B100 is designed for accurate and efficient analysis in clinical, research, and experimental applications. It supports optical coagulation assay and immunoassay methods with 4 test channels, enabling multiple tests simultaneously for improved workflow. Users can choose between automatic and manual test modes, providing operational flexibility based on workload and protocols. With 10 sample positions, it ensures streamlined sample handling for routine testing or study applications. Customers should select this model for its accurate performance, certified reliability, and suitability across research studies, laboratory experiments, and diagnostic applications.
Similar Products
Frequently Asked Questions
1 What is an Automatic Coagulation Analyzer?
An Automatic Coagulation Analyzer is an apparatus designed to automate the testing of blood coagulation parameters in order to assess clotting function.
2 How does Automatic Coagulation Analyzer work?
It works by adding specific reagents to a blood sample, detecting the clotting process through sensors and calculating coagulation times for diagnostic purposes.
3 What coagulation tests can be performed using Automatic Coagulation Analyzer?
It can perform tests such as Prothrombin Time (PT), Activated Partial Thromboplastin Time (aPTT), International Normalized Ratio (INR) and Fibrinogen level.
4 Can Automatic Coagulation Analyzer detect bleeding disorders?
It helps in identifying coagulation abnormalities associated with bleeding disorders such as hemophilia by measuring parameters like PT and fibrinogen levels.
5 Can Automatic Coagulation Analyzer used for monitoring anticoagulant therapy?
It is commonly used for monitoring patients on anticoagulant therapy.
6 What kind of maintenance does Automatic Coagulation Analyzer require?
Regular maintenance includes cleaning and disinfecting of the apparatus, replacement of consumables like reagents and sample tubes along with proper calibration.
7 What types of blood samples are used in Automatic Coagulation Analyzer?
Venous blood samples collected in citrate tubes are used in Automatic Coagulation Analyzer.
8 Can Automatic Coagulation Analyzer be used in emergency settings?
It is used in critical care situations such as trauma to quickly assess coagulation status.
9 What is the role of Automatic Coagulation Analyzer in pre-surgical testing?
It is used to evaluate coagulation profile of a patient before surgery in order to assess bleeding risk and ensure appropriate preoperative care.
10 Can Automatic Coagulation Analyzer perform multiple tests on a single sample?
It can perform multiple coagulation tests from the same sample.
