Ash Content Tester LMACT-A100

Ash Content Tester LMACT-A100

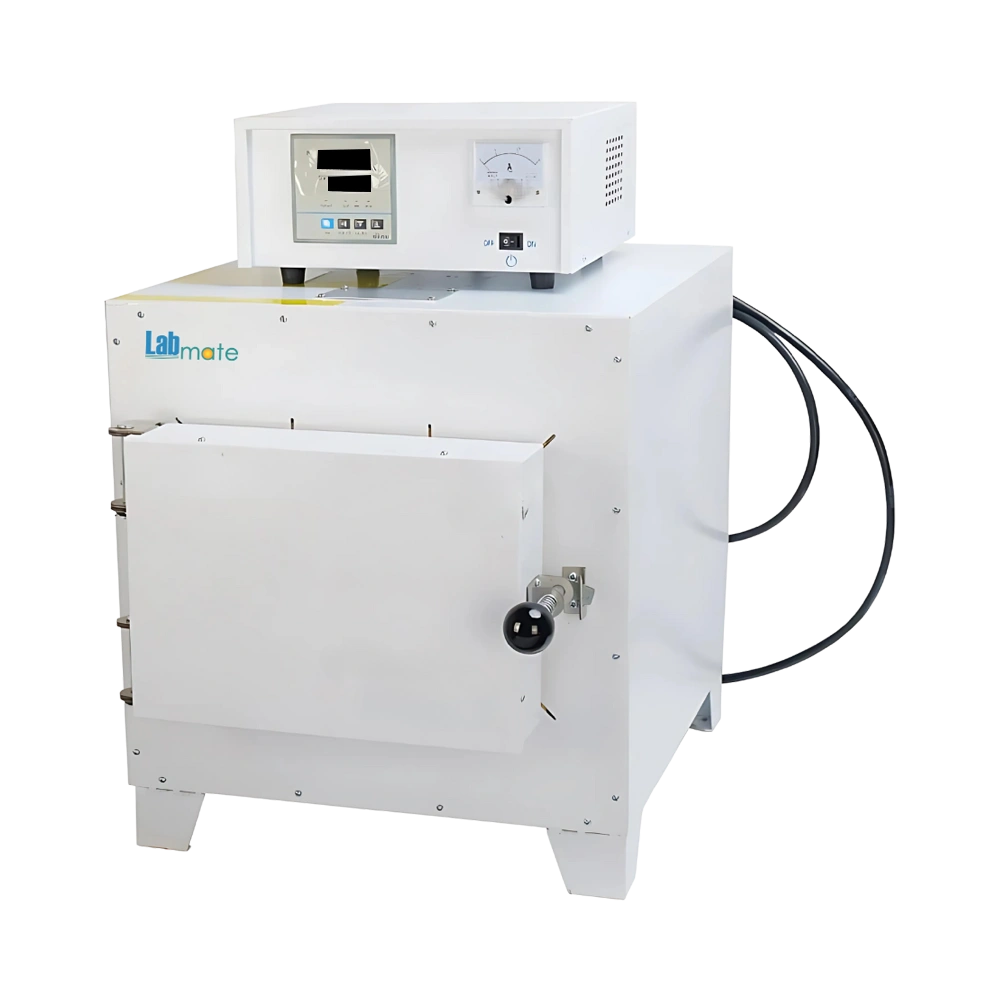

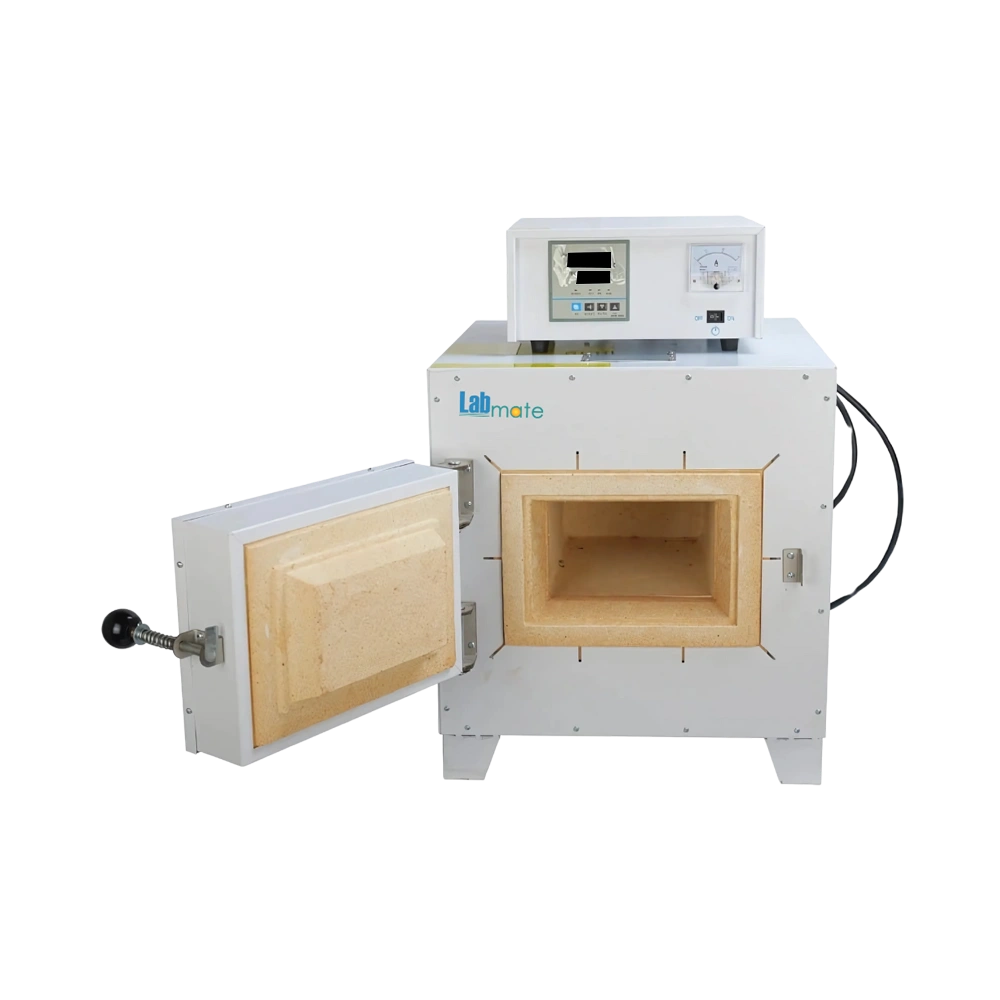

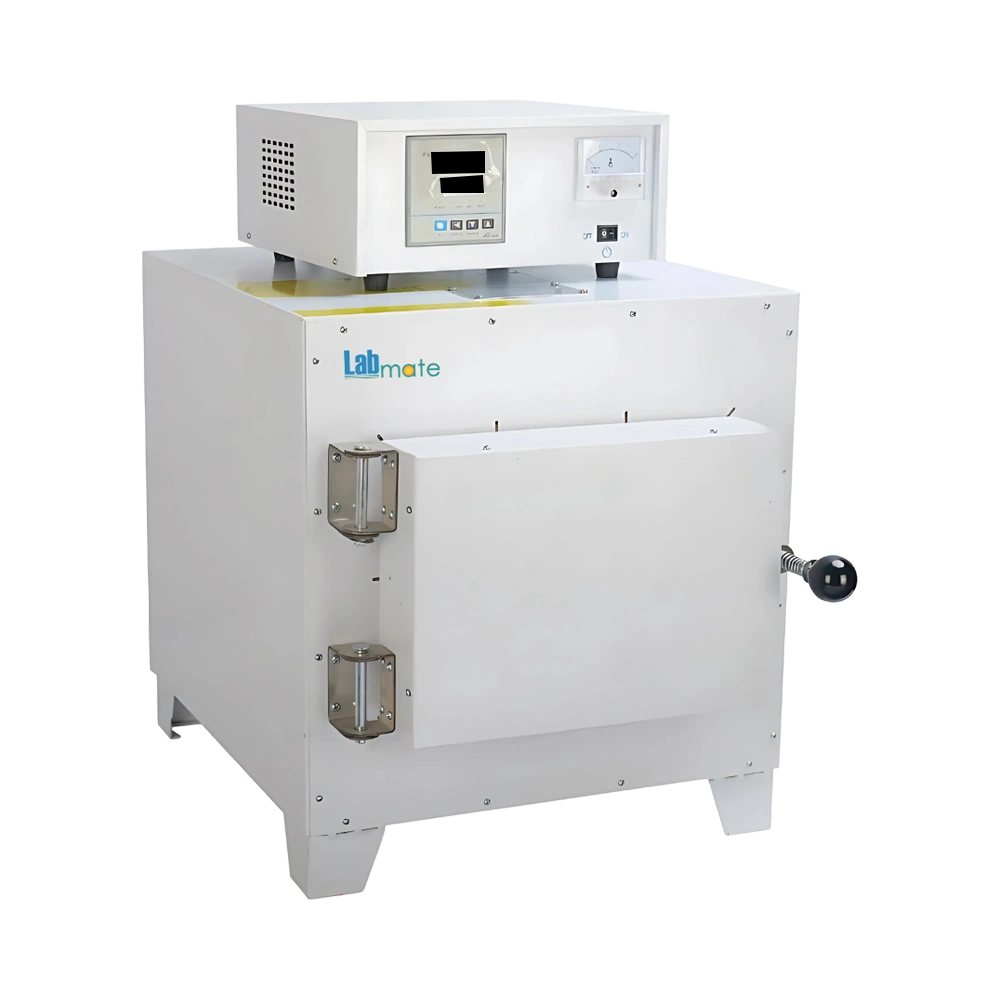

Ash Content Tester LMACT-A100 is a specialized and sophisticated testing unit that determines the remaining ash contents of given samples. The system consists of a muffle furnace, a temperature controller, and an electric heating plate. It is specifically designed for determining ash content in the range of 0.001% to 0.180% by mass in distillate and petroleum products.

Get Quote
Electric Muffle Furnace
Controlled Temperature 775 ±25 ℃
Temperature Rising Time ≤ 50 min
Temperature Uniformity ≤ 15℃
Internal Dimension 200 × 120 × 80 mm
External Dimension 490 × 490 × 450 mm
Power Consumption 2.5 kW
Power Supply AC 220V ±10%, 50 Hz
Net Weight 35 kg
Temperature Controller
Maximum Temperature 1200 ℃
Dimension 500 × 300 × 235 mm
Power Consumption 5000 W
Power Supply AC 220±10% V, 50Hz
Net Weight 5 kg
Electric Heating Plate
Heating Power (1 to 6) grades, continuously adjustable
Temperature 400℃
Diameter Φ 180 mm
Dimension 280 × 250 × 90 mm
Power Consumption 2000 W
Power Supply AC 220±10%V, 50Hz

point.png The muffle furnace features an all-in-one structural design

point.png Incorporates specialized small footprint, fire-resistant materials, and heating components for enhanced performance

point.png Equipped with an adjustable LED display and a precision temperature controller

point.png Demonstrates minimal temperature overshoot and provides stable temperature control

point.png Crafted with a durable outer shell furnace made from cold-rolled steel sheet

point.png Exhibits excellent resistance to corrosion, ensuring durability

point.png This tester boasts a quick heating time and an extended operational lifespan

point.png Compact, space-efficient, and easy to operate

Main unit-1 set


Temperature controller-1 set
Hot plate-1 set
Thermocouple- 1 piece
Compensation lead wire-1 piece
Porcelain crucible (50ml)-10 pieces
Porcelain crucible (100ml)-10 pieces
Crucible Tong-1 piece
Fuse-2 pieces

It is utilized for a wide spectrum of applications, including distillate and residual fuels, gas turbine fuels, crude oils, lubricating oils, waxes, and various petroleum products. This is a critical parameter for a wide range of industries, including food, pharmaceuticals, agriculture, and materials science.
