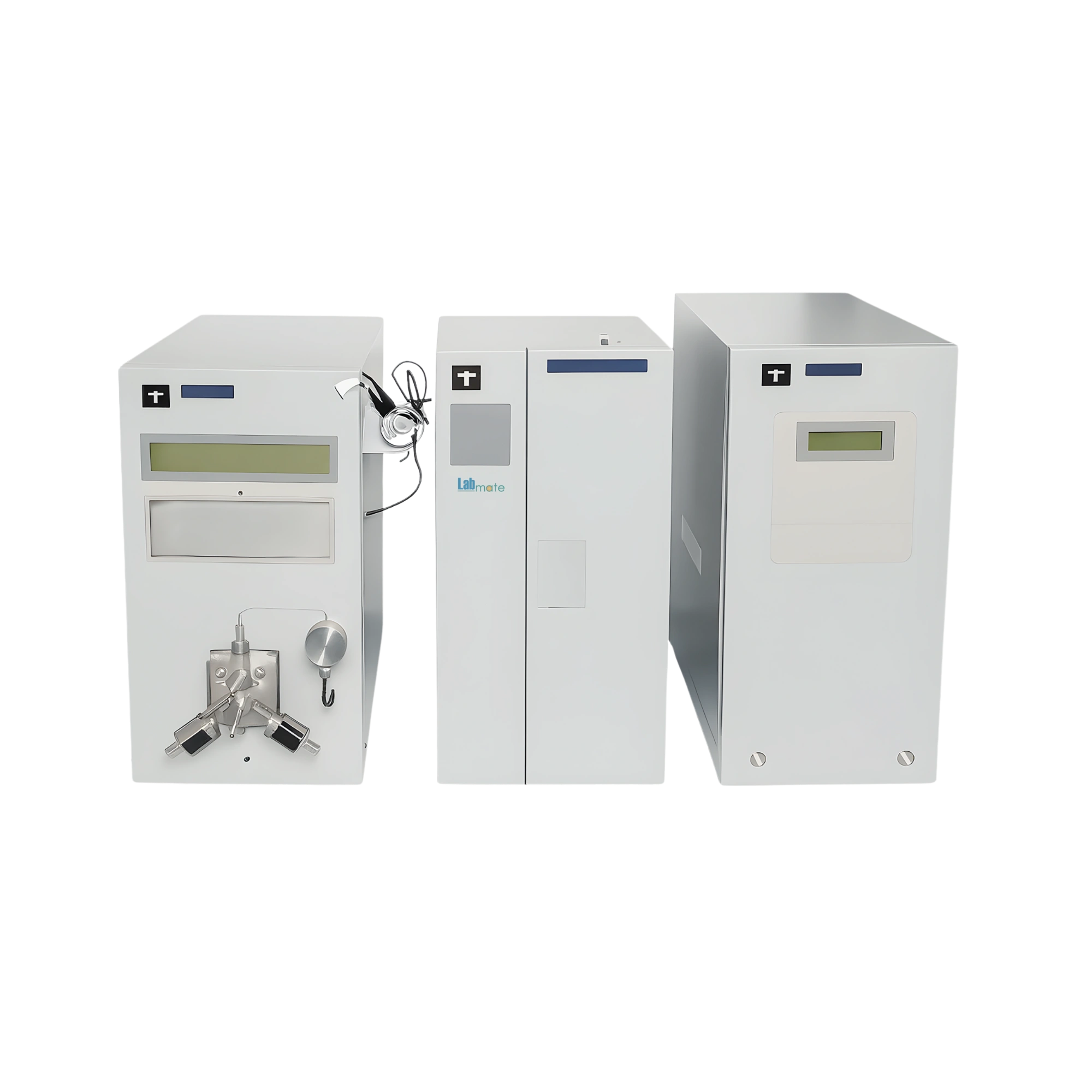

Amino Acid Analyzer LMAN-A101 offers flow rate range of 0.1 to 15 ml/min. It features high sensitivity and rapid analysis. Equipped with an advanced separation system for precise amino acid profiling. Integrated with user-friendly interface for smooth operation. Our Amino Acid Analyzer LMAN-A101 is ideal for clinical diagnostics and biochemical research.
Specifications
| Operating Pressure | 0 to 42 MPa (6000 psi) maximum |
| Flow Rate Range | 0.1 to 15 ml/min |
| Flow Rate Precision | ±1% |
| Flow Rate Accuracy | 25 ml/368 to 387s (±3%) |
| Compositional Precision | 0.5% absolute |
| Over Pressure Protection | Pump shuts off if pressure exceeds 42.0 MPa (6000 psi) maximum |
| Wavelength Range | 190 to 700nm |
| Spectral Bandwidth | 5nm |
| Wavelength Accuracy | ±2nm |
| Wavelength Reproducibility | ±0.2nm |
| Absorbance Range | 0.002au/mV to 2au/mV |
| Data System Output | 2au/V, fixed |
| Noise | 5×10⁻⁵au |
| Drift | 1×10⁻³au/hr |
| Flow Cell Volume | 4.5μl |
| Time Constants | 0.05s, 0.5s, 5s |
| Temperature Requirements | 10 to 35℃ |
| Relative Humidity | 5% to 80% |
| Power Requirements | 220Vac ±5% |
| Power Frequency | 50 ±0.5 Hz |
| Power Supply | 400W |
| Dimensions | 450×210×90mm |
| Detector Dimensions | 450×180×390mm |
| Weight | 20kg |
| Detector Weight | 15kg |
Pricing
| Product | Price | Unit | Action |
|---|---|---|---|
| Amino Acid Analyzer LMAN-A101 | $ 19125 | Each of 1 |
Features
Rapid analysis speed
User-friendly interface
Reliable performance output
High-resolution detection
Temperature-controlled operation
Standard Accessories
Accessory | Quantity | Unit |
Binary Gradient Pump | 1 | Set |
UV Detector | 1 | Set |
Injector | 1 | Set |
C18, 5μm, Amino Acid Column | 1 | Set |
Guard Column | 1 | Set |
Work Station | 1 | Set |
Column Oven | 1 | Set |
Ultrasonic Cleaner (3L) | 1 | Set |
Solvent Filter | 1 | Set |
0.45μ Organic Filter Membrane | 100 | Pieces |
0.45μ Water Filter Membrane | 100 | Pieces
|
Organic Sample Filter | 100 | Pieces |
Water Sample Filter | 100 | Pieces |
Vacuum Pump | 1 | Set |
Amino Acid Standard Sample | 1 | Set |
Amino Acid Derivatives Solvent | 1 | Set |
Optional Accessories
Seal Ring
Filter Head
PEEK Ring Joint
Derivative Kit
Amino Acid Standard
Filter Membrane
Filter
Applications
Amino Acid Analyzer LMAN-A101 is ideal for clinical diagnostics, pharmaceutical research, and food quality testing. Employed in biochemical research for consistent amino acid profiling and nutritional analysis.
Selection Guide
Amino Acid Analyzer LMAN-A101 is a multi-purpose instrument for researchers in clinical, food, agricultural, pharmaceutical, and academic fields. For biomedical research, it allows for sensitive analysis of plasma, urine, or CSF for metabolic disorder studies. For food and nutrition, it provides high-throughput, standard-compliant testing of amino acid content in supplements, dairy, meat, and fermentation products. In agriculture and feed research, it accurately measures essential and non-essential amino acids in various plant and animal samples. Pharmaceutical labs benefit from its GMP/GLP compliance, making it suitable for raw material QC, peptide analysis, and stability testing. In academia, its customizable settings and support for various derivatization methods serve in enzyme research, uptake experiments, and method development. With its accuracy, reproducibility, and flexibility, it is an excellent choice for comprehensive amino acid analysis.
Similar Products
$ 47150 / Each of 1
Frequently Asked Questions
1 What is an Amino Acid Analyzer LMAN-A101?
An Amino Acid Analyzer LMAN-A101 is a laboratory instrument that accurately measures and analyzes the composition of amino acids in various samples.
2 How does an Amino Acid Analyzer LMAN-A101 work?
An Amino Acid Analyzer LMAN-A101 operates on the principle of ion-exchange chromatography combined with post-column derivatization for amino acid detection.
3 Is Amino Acid Analyzer LMAN-A101 effective for detecting metabolic disorders?
Amino Acid Analyzer LMAN-A101 aids in diagnosing metabolic disorders by analyzing amino acids in biological fluids.
4 Can Amino Acid Analyzer LMAN-A101 analyze amino acids in plant extracts?
Amino Acid Analyzer LMAN-A101 is capable of profiling amino acids in various plant-derived samples.
5 Is Amino Acid Analyzer LMAN-A101 used in biochemical research?
Amino Acid Analyzer LMAN-A101 is widely used for amino acid analysis in biochemical studies.
6 Can Amino Acid Analyzer LMAN-A101 analyze amino acids in dairy products?
Amino Acid Analyzer LMAN-A101 is used to evaluate amino acid profiles in milk and cheese for quality control.
7 Can Amino Acid Analyzer LMAN-A101 be used to study enzyme hydrolysis products?
Amino Acid Analyzer LMAN-A101 accurately quantifies amino acids released during enzyme hydrolysis.
8 Can Amino Acid Analyzer LMAN-A101 be used in pharmaceutical research?
Amino Acid Analyzer LMAN-A101 supports drug development by analyzing amino acid compositions in formulations.
9 Is Amino Acid Analyzer LMAN-A101 used in biochemical research?
Amino Acid Analyzer LMAN-A101 is widely used for amino acid analysis in biochemical and molecular biology studies.
10 What kind of maintenance does Amino Acid Analyzer LMAN-A101 require?
Routine maintenance includes cleaning the columns and flow cells, replacing filters and reagents, and calibrating the system periodically to ensure accurate and reliable performance.
11 What is an Amino Acid Analyzer?
An Amino Acid Analyzer is an apparatus designed to measure the concentrations of amino acids in biological samples.
12 How does an Amino Acid Analyzer work?
It utilizes ion exchange liquid chromatography to provide qualitative and quantitative compositional analysis of amino acids.
13 What types of samples can be analyzed using Amino Acid Analyzer?
It can process a wide variety of samples such as biological fluids, environmental samples, food and pharmaceutical products.
14 Why is Amino Acid analysis important?
It plays a significant role in diagnosing metabolic disorders, food quality control and drug discovery.
15 Is Amino Acid Analyzer applicable for peptides and proteins analysis?
It can analyze peptides and proteins after they have been hydrolyzed into their constituent amino acids.
16 Can Amino Acid Analyzer be used in high-throughput labs?
It can analyze numerous samples efficiently therefore is ideal for high-volume labs.
