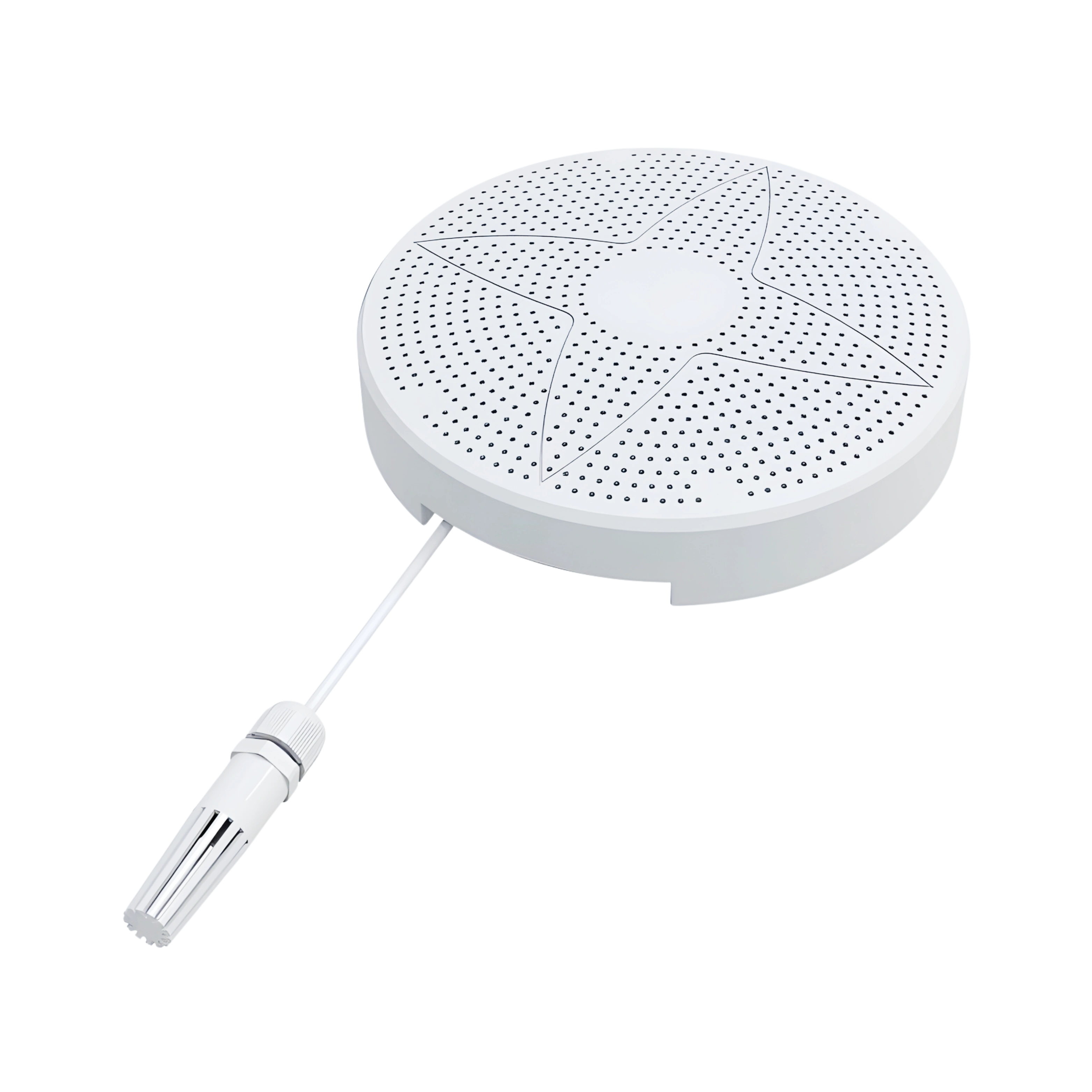

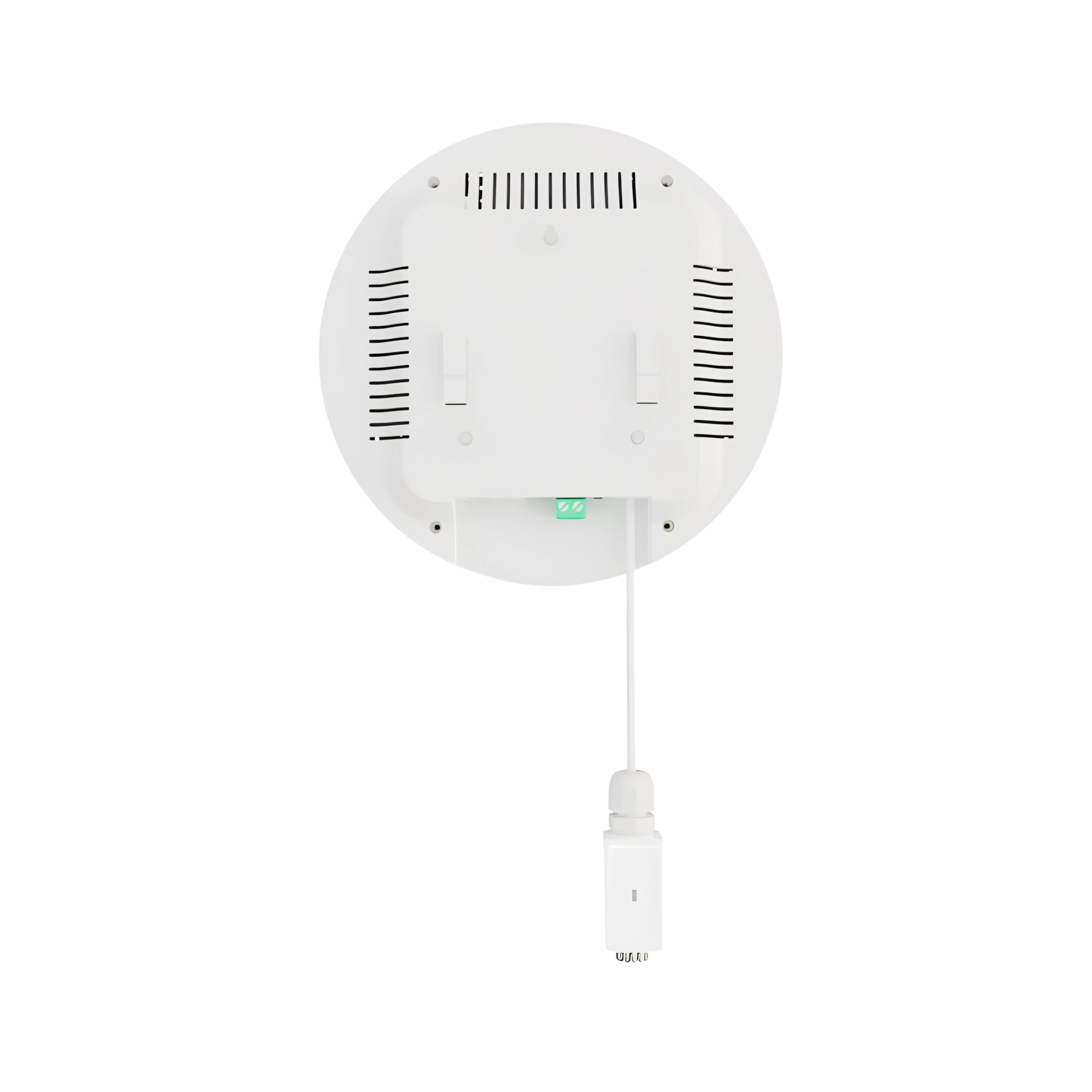

Air Quality Sensor LMAQS-A101 supports 11 gas and particulate measurements including PM2.5, PM10, CO₂, CH₂O, O₃, TVOC with Wi-Fi connectivity. Equipped with ceiling and wall mount design, unit ensures seamless installation in both commercial and technical environments. Initiated with internal USB configuration, it allows direct on-site parameter setup without software dependencies. Incorporated with multi-element sensing architecture, it maintains real-time stability across all parameters through synchronized transmission. Our sensor supports continuous indoor air assessment in offices, hospitals, HVAC facilities, and public buildings to assist ventilation control.
Specifications
| Material | ABS plastic |
| Operating Temperature Range | -10°C to +55°C |
| Operating Humidity Range | 0 to 95% RH |
| PM2.5 Measuring Range | 0 to 1000 µg/m³ |
| PM10 Measuring Range | 0 to 1000 µg/m³ |
| Temperature Measuring Range | -40°C to +120°C |
| Humidity Measuring Range | 0 to 100% RH |
| Atmospheric Pressure Range | 0 to 120 kPa |
| Illuminance Measuring Range | 0 to 200,000 Lux |
| TVOC Measuring Range | 0 to 60,000 ppb |
| CO₂ Measuring Range | 0 to 5000 ppm |
| Formaldehyde (CH₂O) Measuring Range | 0 to 5 ppm |
| Ozone (O₃) Measuring Range | 0 to 10 ppm |
| Oxygen (O₂) Measuring Range | 0 to 25% Vol |
| Methane (CH₄) Measuring Range | 0 to 5 ppm |
| Hydrogen Sulfide (H₂S) Range | 0 to 100 ppm |
| Carbon Monoxide (CO) Range | 0 to 1000 ppm |
| Nitrogen Dioxide (NO₂) Range | 0 to 20 ppm |
| Sulfur Dioxide (SO₂) Range | 0 to 20 ppm |
| Hydrogen (H₂) Range | 0 to1000 ppm |
| Ammonia (NH₃) Range | 0 to 100 ppm |
| Preheat Time | 2 min (CO₂), 5 min (CH₂O, O₃, CH₄), 10 min for max accuracy |
| Power Consumption | 1.6W at 24V DC |
| Power Supply | DC 10 to 30V |
| Dimensions | 210 × 250 × 90 mm |
| Weight | 600 g |
Pricing
| Product | Price | Unit | Action |
|---|---|---|---|
| Air Quality Sensor LMAQS-A101 | $ 1142.5 | Each of 1 |
Features
Wireless data upload
Customizable sensor combinations
Smooth curved body
Alarm settings
Gas thresholds
Works with cloud platforms
Applications
Air Quality Sensor LMAQS-A101 is suited for monitoring indoor air in offices, schools, hospitals, and transport hubs. It helps manage ventilation and detect harmful pollutants in enclosed environments.
