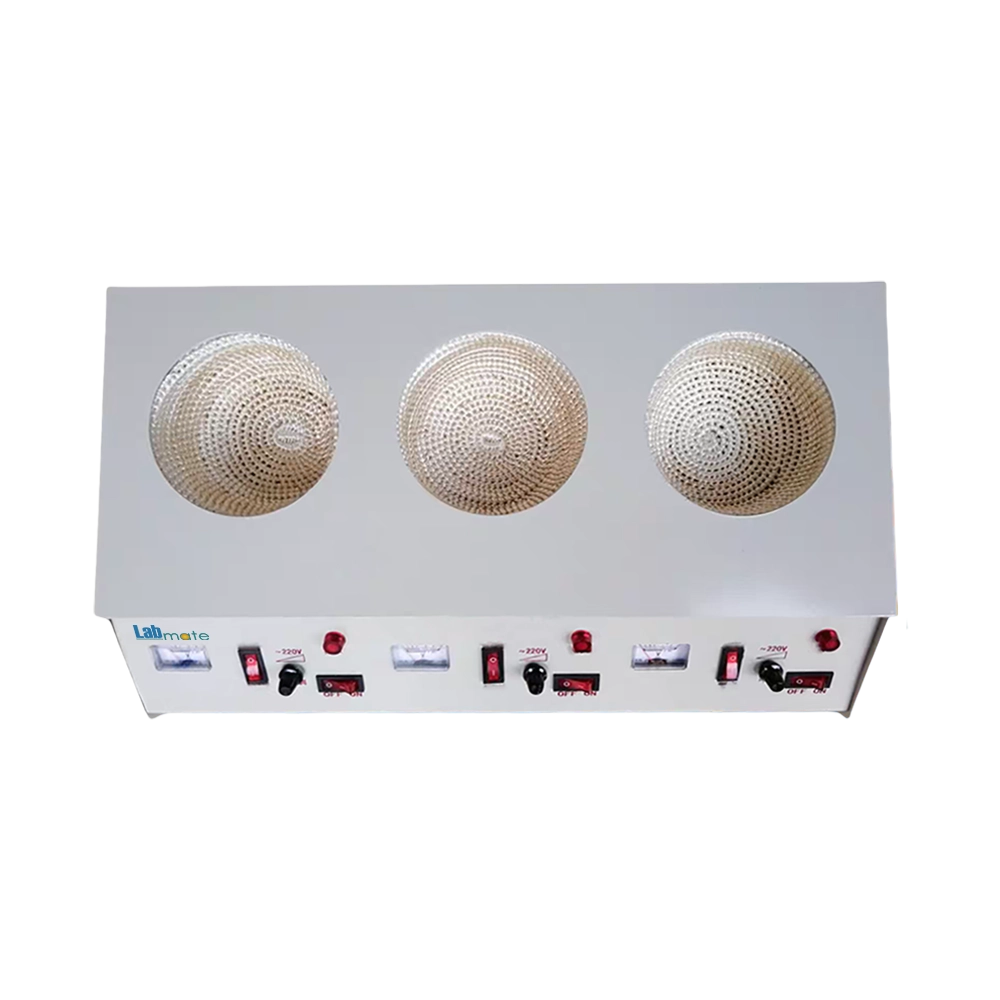

3-Position Heating Mantle LMHM-D100 has maximum working temperature of 380℃. It offers simultaneous heating of multiple samples with uniform heat distribution. Equipped with independent temperature control knobs for each position. Integrated with fiberglass insulation and durable aluminum housing for long-lasting performance. Our Heating Mantle is ideal for parallel heating in chemical and research laboratories.
Specifications
| Capacity | 500 ml×3 |
| No. Of Position | 3 |
| Working Temperature | 380°C |
| Temperature Controller | Electronic knob regulation |
| Power Consumption | 850 W |
| Power Supply | AC220V, 50Hz |
| Heating Element Dimensions | Φ 115mm×60mm |
| Dimensions | 450×290×100 mm |
| Packaging Dimension | 480×300×120 mm |
| Net Weight | 4.5 Kg |
| Gross Weight | 6 Kg |
Pricing
| Product | Price | Unit | Action |
|---|---|---|---|
| 3-Position Heating Mantle LMHM-D100 | $ 1612.5 | Each of 1 |
Features
Nickel-chromium wire
Hemispherical heater
Compact structure
Indicator light
Easy operation
Effective performance
Optional Accessories
Model No. | Accessory |
LMHM-D100-S1 | Supporter rod |
LMHM-D100-C1 | Cross clamp |
LMHM-D100-U1 | Universal clamp |
Applications
3-Position Heating Mantle supports liquid heating in petroleum, chemical, medicine health, environmental protection, biochemistry, education, and research.
Frequently Asked Questions
1 What is a 3-Position Heating Mantle?
A 3-Position Heating Mantle is an apparatus designed to simultaneously heat three separate round-bottom flasks, allowing for efficient multi-sample processing under controlled temperatures.
2 How does 3-Position Heating Mantle work?
It uses electric heating elements embedded in insulating fabric to evenly distribute heat to three flask positions, providing consistent thermal contact without open flames.
3 Can 3-Position Heating Mantle be used for distillation processes?
It is commonly used in distillation setups, especially when multiple samples need to be processed under controlled heating simultaneously.
4 Can 3-Position Heating Mantle be used in organic synthesis labs?
It is ideal for organic synthesis labs, as it allows researchers to run multiple reactions simultaneously under controlled heat, increasing productivity and consistency.
5 How is 3-Position Heating Mantle used in pharmaceutical research?
It is used to perform parallel compound synthesis, enabling faster screening of drug candidates and reaction optimization.
6 Is 3-Position Heating Mantle suitable for reflux experiments?
It is well-suited for reflux setups, especially when multiple samples must be processed under continuous heating and condensation conditions.
7 Is 3-Position Heating Mantle used in petrochemical testing?
It is used in petrochemical labs for distillation, crude oil fractionation, and chemical analysis, where controlled multi-sample heating is essential.
8 Can 3-Position Heating Mantle be used in food and beverage testing labs?
It is used in food testing labs to heat and extract compounds from samples like oils, flavors, or additives for analysis.
9 How does 3-Position Heating Mantle assist in environmental testing?
In environmental labs, it helps in sample digestion, extraction, and concentration of soil, water, and air contaminants under uniform heating.
10 How is 3-Position Heating Mantle used in polymer research?
It enables controlled heating of monomers or polymer blends during synthesis or thermal modification processes in polymer chemistry.
