Overview

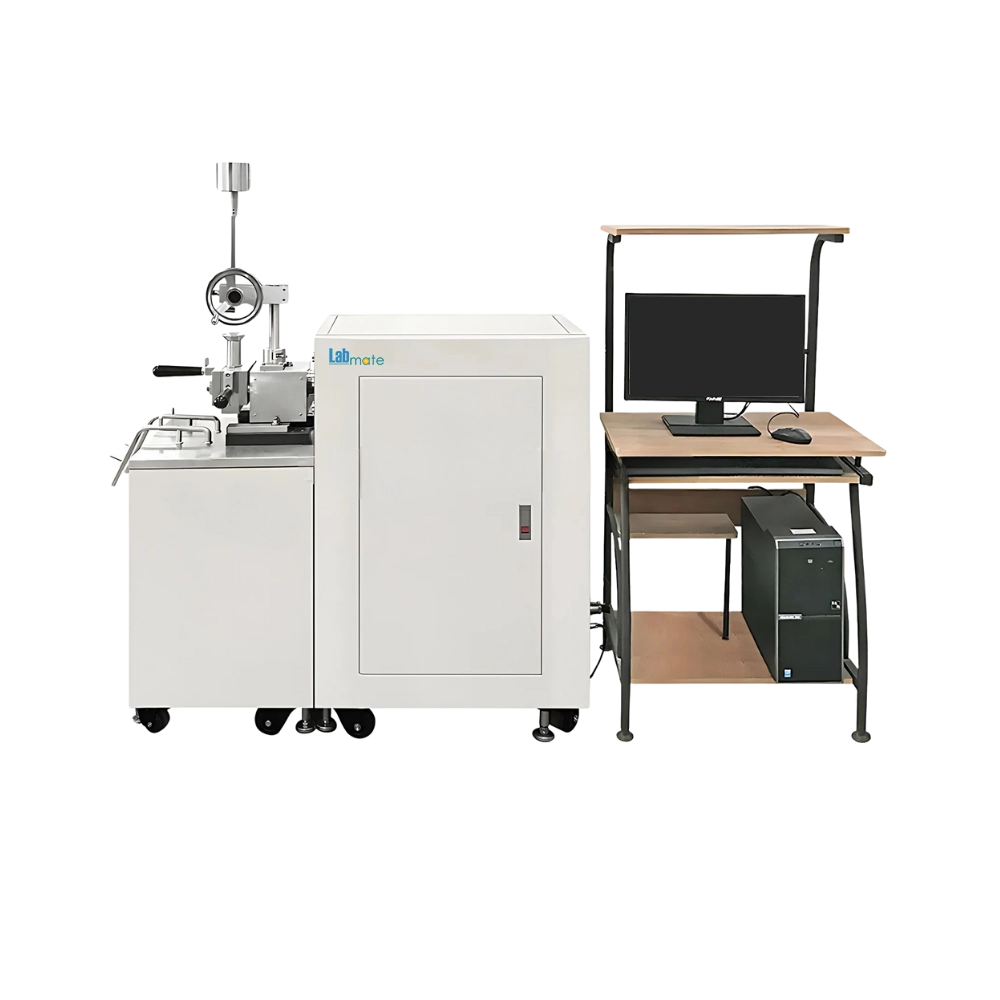

Rheometer LMRHM-A100 with chamber capacity of 60 ml. It analyzes both solids and liquids under varying temperature and shear conditions. Equipped with automatic temperature control for consistent and reliable results. Integrated with advanced software for seamless data analysis and monitoring. Our Rheometer is ideal for research, material science and manufacturing quality control.
Features :
Raw material analysis
Formulation optimization
Crosslinking analysis
Durable construction
Specifications :
| Shear Stress | 0.5 Pa to 3 × 10⁴ Pa |
| Shear Rate | 10⁻² 1/s to 6500 1/s |
| Rotation Speed Range | 0.1 to 150 rpm |
| Rotation Speed Deviation | ±0.5% |
| Max Rotation Speed Of Mixing Unit | 250 rpm |
| Torque Range | 0 to 200 Nm |
| Torque Deviation | ±0.1% |
| Max Torque Of Mixing Unit | 200 Nm |
| Melt Pressure Range | 0.1 to 100 MPa |
| Pressure Deviation | ±0.5% |
| Temperature Range | Room temperature to 300°C |
| Temperature Deviation | ±0.5°C |
| Rotor Type | Roller |
| Rotor Speed Ratio | 3:2 |
| Chamber Capacity | 60 ml |
| Power Supply | AC 380V, 50Hz |
| Dimension | 755 × 470 × 1170 mm |
Applications :
Rheometer LMRHM-A100 is employed to analyze viscosity and flow properties of materials. It is essential for research and quality control in industries like polymer, coating, and food processing.
